Quick Details
-
SCREEN SIZE:
-
10.1-55
-
Display format:
-
1920x1080p
-
Voltage:
-
single power supply
-
support:
-
panel flip and mirror function
-
led/lcd tv:
-
support
-
Application:
-
Analog tv
-
OSD Language:
-
English, French, German, Italian
-
Panel voltage:
-
3.3V 5V 12V
-
Model Number:
-
CND2021
Quick Details
-
Place of Origin:
-
China
-
TYPE:
-
led tv motherboard
-
product name:
-
wholesales China led tv motherboard for any brand led tv panel screen
-
SCREEN SIZE:
-
10.1-55
-
Display format:
-
1920x1080p
-
Voltage:
-
single power supply
-
support:
-
panel flip and mirror function
-
led/lcd tv:
-
support
-
Application:
-
Analog tv
-
OSD Language:
-
English, French, German, Italian
-
Panel voltage:
-
3.3V 5V 12V
-
Model Number:
-
CND2021
product name: wholesales China led tv motherboard for any brand led tv panel screen

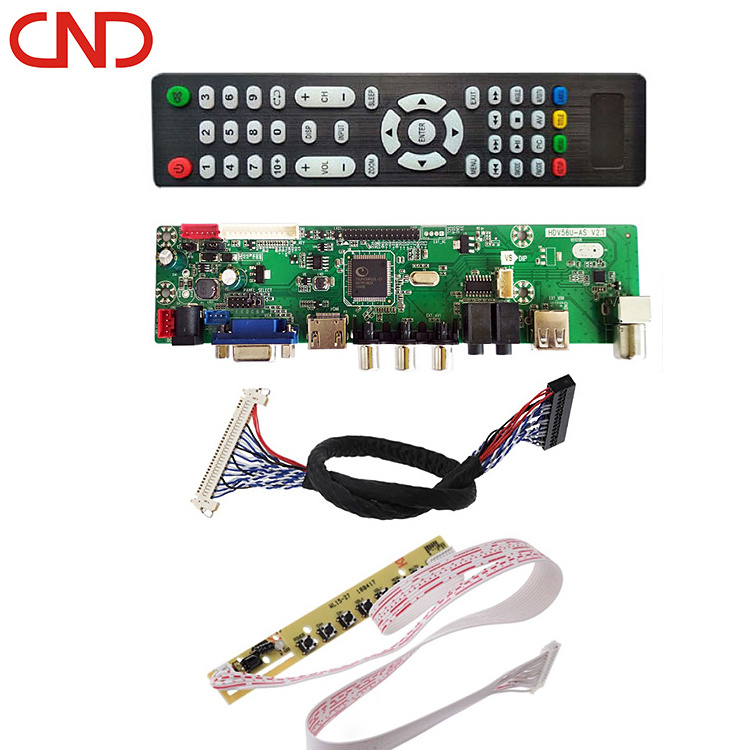

Universal HD LCD TV board (HDV56R-AS)
- TV system support PAL+SECAM/NTSC system,optional full standard system .
- Max supports FULL HD 1920X1200 resolution TFT-LCD screen.
- Optional LCD TV strcture or LED TV strcture.
- Optionally used for vehicle,Monitor series mainboard .
- Analog high definition port signal(ypbpr)input,Max support 1080 format.
- High definition digital multimedia port(HDMI)1.4,HDCP1.2 and DVI 1.0.
Please note: Voltage supply default 5V, please adjust jumper cat to correct place before power on,
Or the TV board will be burned.
Key Feature: support any brand of panel with different resolution by Jumper Selecting .
| Item | Resolution choice | Jumper cat position |
| 1 | 1920x1080-8-1 | A+B |
| 2 | 1920X1080-6-2 | A+C |
| 3 | 1680X1050-8-1 | A+D |
| 4 | 1440X900-8-1 | A+E |
| 5 | 1280X1024-8-1 | A+F |
| 6 | 1366X768-8-1 | B |
| 7 | 1366X768-6-2 | C |
| 8 | 1024X768-8-1 | D |
| 9 | 1024X768-6-2 | E |
| 10 | 800X600-6-1 | F |
| 11 | 1024X600-6-2 | A |
| 12 | 1920X1200-6-2 | A+B+G |
| 13 | 1920X1080-8-2 | A+C+G |
| 14 | 1680X1-5--6-2 | A+D+G |
| 15 | 1600X1200-6-1 | A+E+G |
| 16 | 1600X900-8-1 | A+F+G |
| 17 | 1600X900-6-2 | B+G |
| 18 | 1440X900-6-2 | C+G |
| 19 | 1400X1050-6-2 | D+G |
| 20 | 1280X1024-8-2 | E+G |
| 21 | 1280X800-6-2 | F+G |
| 22 | 1024X768-8-2 | A+G |
| 23 | 1024X768-6X2-A | G |
Firmware Writing
Step 1
: Empty the U disk
Step 2:
Copy the corresponding resolution program (*. Bin file) with the TXT file to the
U disk
Step 3:
Connect the U dish and TV Mainboard Via USB Interface
Step 4:
Connect the Keyboard and TV Mainboard
Step 5:
Connect the power supply, check the keyboard light. If there is a flashing light,
that is in the written program, waiting for the light turn to Green, work is done.
(Note: *During Step 5,the power supply can't be cut off *The same firmware can only
be burned once time)
Factory Settings
Menu--remote control press 8896--factory setting
Screen Specification Adustment: Factory setting--Use the right key to choose--MAP
data (LVDS MAP DATA has 16 items totally, it is enough for most of the screen)
