Quick Details
-
Effective Volume:
-
4CBM
-
Dimension(L*W*H):
-
customize
-
Voltage:
-
no need
-
Power:
-
no required
-
Weight (KG):
-
135
-
Maximum working temperature:
-
300C
-

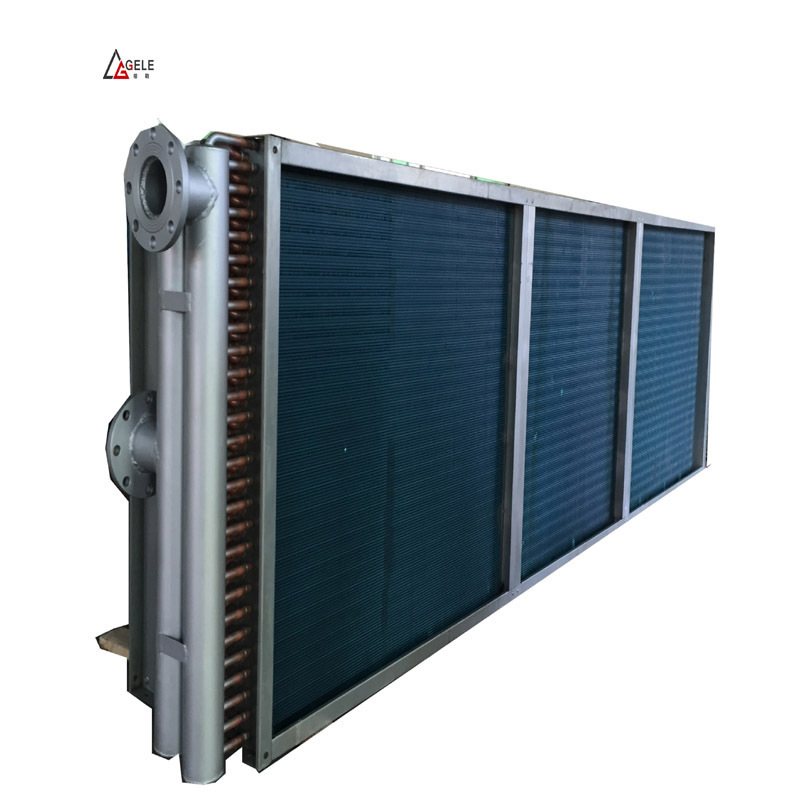

Structure of heat exchanger:
-
Fin tube type heat exchanger
-
Base tube materials:
-
Stainless Steel, Carbon steel, Copper
-
Fin materials:
-
Stainless Steel, Carbon steel, Copper, Aluminium
-
Hot sources:
-
cold water, hot water, steam, thermal oil
-
Connector:
-
Flange or Thread or customized
-
Surface treatment:
-
galvanized or sliver powder or others
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Core Components:
-
fin tubes
-
Brand Name:
-
GELE
-
Effective Volume:
-
4CBM
-
Dimension(L*W*H):
-
customize
-
Voltage:
-
no need
-
Power:
-
no required
-
Weight (KG):
-
135
-
Maximum working temperature:
-
300C
-
Structure of heat exchanger:
-
Fin tube type heat exchanger
-
Base tube materials:
-
Stainless Steel, Carbon steel, Copper
-
Fin materials:
-
Stainless Steel, Carbon steel, Copper, Aluminium
-
Hot sources:
-
cold water, hot water, steam, thermal oil
-
Connector:
-
Flange or Thread or customized
-
Surface treatment:
-
galvanized or sliver powder or others
Other kinds of heat exchangers are also available for customers:
Other Kinds of heat exchanger material:
1. Steel tube with extruded aluminum fin
|
Tube Size |
Fin (OD) |
Fin Height |
Fin Thickness |
Fins Distance |
|
Φ 18x2 mm |
Φ 38 mm |
10 mm |
0.45 mm |
3 mm |
|
Φ 21x2 mm |
Φ 45 mm |
12 mm |
0.35 mm |
3 mm |
|
Φ 21x2 mm |
Φ 51 mm |
15 mm |
0.35 mm |
3 mm |
|
Φ 25x2 mm |
Φ 50 mm |
12.5 mm |
0.3 mm |
3 mm |
|
Φ 25x2 mm |
Φ 55 mm |
15 mm |
0.3 mm |
3 mm |
|
Φ 32x3 mm |
Φ 62 mm |
15 mm |
0.3 mm |
3 mm |
|
Other finned tube size can be customized. |
||||
2. Steel tube with crimped steel fin ( All S/S 201, S/S 304, S/S 316 are optional)
|
Tube Size |
Fin (OD) |
Fin Height |
Fin Thickness |
Fins Distance |
|
Φ 18x2 mm |
Φ 38 mm |
10 mm |
0.3 mm |
4-5 mm |
|
Φ 21x2 mm |
Φ 45 mm |
12 mm |
0.3 mm |
5-8 mm |
|
Φ 21x2 mm |
Φ 51 mm |
15 mm |
0.3 mm |
5-8 mm |
|
Φ 25x2 mm |
Φ 50 mm |
12.5 mm |
0.3 mm |
5-8 mm |
|
Φ 25x2 mm |
Φ 55 mm |
15 mm |
0.3 mm |
5-8 mm |
|
Φ 32x3 mm |
Φ 62 mm |
15 mm |
0.3 mm |
8-10 mm |
|
Other finned tube size can be customized. |
||||
End Application of Gele Heat Exchanger/ Radiator included GREENHOUSE, timber dryer, dry kiln, gravure printing M/C, printing and dyeing M/Dyeing and
finishing M/C, hot air stenter M/C,heat framing M/C, drying M/C, textile printing M/C, flat bed printing M/C, roto screen
printing M/C, ,rotogravure printing machine M/C; drying foodstuff, tea leaf, air conditioner; airflow drying starch
(starch dryer) and feedstuff, paper M/C, vegetable dehydration tunnel, oven drying , drying machine for plastic & leather
grunting , CAC heating and refrigeration, workshop constant temperature warming, drying and cooling brewer's malt,
tobacco splitting, swelling & drying , drying dyestuff, chemical fiber, soda, latex, PVC, glutin , leather finishing M/C,
blanket setting machine, Laminating M/C, Oven
Heat exchanger manufacturing process in our factory
