Quick Details
-
Range of Spindle Speed(r.p.m):
-
1 - 118 r.p.m
-
Max. Turned Length (mm):
-
457 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BETA
-
Model Number:
-
C9370C
-
Voltage:
-
110/220/380 V
-
Dimension(L*W*H):
-
1010*950*1150 mm
-
Weight (KG):
-
325 KG
-
Name:
-
C9370C China high quality machine Brake drum disc lathes good price
-
Machine Type:
-
Brake drum and disc lathe
-
Color:
-
Customers' Request
-
Spindle speed:
-
70,80,118 rpm
-
Brake drum diameter:
-
Brake drum 152-450 mm
-
Disc diameter:
-
Brake disc 180-457 mm
-
Dimension:
-
1130x1030x1150 mm
-
Slide travel:
-
251 mm
-
G.W/N.W:
-
325 kg
-
Model:
-
C9370C
Quick Details
-
Max. Length of Workpiece (mm):
-
Other
-
Machining Capacity:
-
Light Duty
-
Spindle Bore(mm):
-
Other
-
Range of Spindle Speed(r.p.m):
-
1 - 118 r.p.m
-
Max. Turned Length (mm):
-
457 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BETA
-
Model Number:
-
C9370C
-
Voltage:
-
110/220/380 V
-
Dimension(L*W*H):
-
1010*950*1150 mm
-
Weight (KG):
-
325 KG
-
Name:
-
C9370C China high quality machine Brake drum disc lathes good price
-
Machine Type:
-
Brake drum and disc lathe
-
Color:
-
Customers' Request
-
Spindle speed:
-
70,80,118 rpm
-
Brake drum diameter:
-
Brake drum 152-450 mm
-
Disc diameter:
-
Brake disc 180-457 mm
-
Dimension:
-
1130x1030x1150 mm
-
Slide travel:
-
251 mm
-
G.W/N.W:
-
325 kg
-
Model:
-
C9370C
Products Description

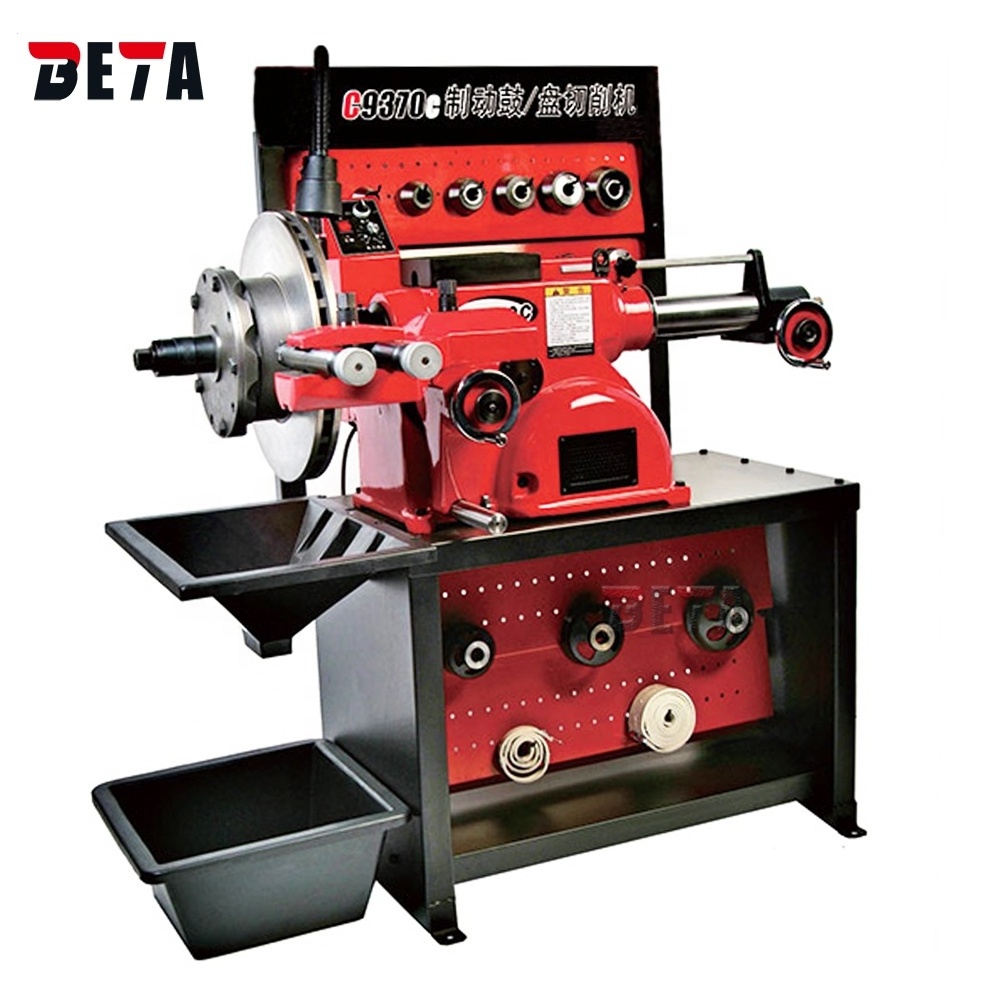

C9370C China high quality machine Brake drum disc lathes good price
Product Parameters
|
Model
|
C9370C
|
|
Spindle travel
|
251 mm
|
|
Spindle speed
|
70, 88, 118 rpm
|
|
Hand wheel graduation
|
0.05 mm
|
|
Spindle feed speed
|
0.05-0.5 mm/Rev
|
|
Cross feed speed
|
0.05-0.25 mm/Rev
|
|
Rotor diameter
|
180-457 mm
|
|
Rotor thickness
|
73 mm
|
|
Drum diameter
|
152-450 mm
|
|
Drum depth
|
251 mm
|
|
Motor
|
110V/220V/380V 50-60HZ
|
|
Dimension
|
1130x1030x1150 mm
|
|
Gross weight
|
325 kg
|
Details Images
Standard accessories:
adapter
taper cone
clamp
spring
wrenches
taper cone
clamp
spring
wrenches
