Quick Details
-
Brand Name:
-
KRNC
-
Model Number:
-
Ceramic Fiber Tube, GB/T JQ-605ST
-
Application:
-
Heat Insulation
-
Dimensions:
-
Customer Requestion
-
Working Temperature:
-
1050 ℃--1350℃
-
Fiber Diameter:
-
3-5um
-
Thermal Conductivity:
-
0.075%
-
Shrinkage (1800℉, 3h):
-
3%(24 Hours)
-
Product name:
-
Ceramic Fiber Tube
-
Raw material:
-
Aluminum silicate
-
Color:
-
White
-
Certificate:
-
ISO9001:2015
-
Reinforcement:
-
Glass Filament+stainless Steel Wire
-
Packing:
-
Carton box
-
Diameter:
-
5-100mm
-
Thermal conductivity(1000℃):
-
0.20w/mk
-
Max temperature:
-
3200℃
Quick Details
-
Ultimate Strength (≥ MPa):
-
0.55Mpa
-
Density (kg/m³ ):
-
400kg/m3
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
KRNC
-
Model Number:
-
Ceramic Fiber Tube, GB/T JQ-605ST
-
Application:
-
Heat Insulation
-
Dimensions:
-
Customer Requestion
-
Working Temperature:
-
1050 ℃--1350℃
-
Fiber Diameter:
-
3-5um
-
Thermal Conductivity:
-
0.075%
-
Shrinkage (1800℉, 3h):
-
3%(24 Hours)
-
Product name:
-
Ceramic Fiber Tube
-
Raw material:
-
Aluminum silicate
-
Color:
-
White
-
Certificate:
-
ISO9001:2015
-
Reinforcement:
-
Glass Filament+stainless Steel Wire
-
Packing:
-
Carton box
-
Diameter:
-
5-100mm
-
Thermal conductivity(1000℃):
-
0.20w/mk
-
Max temperature:
-
3200℃

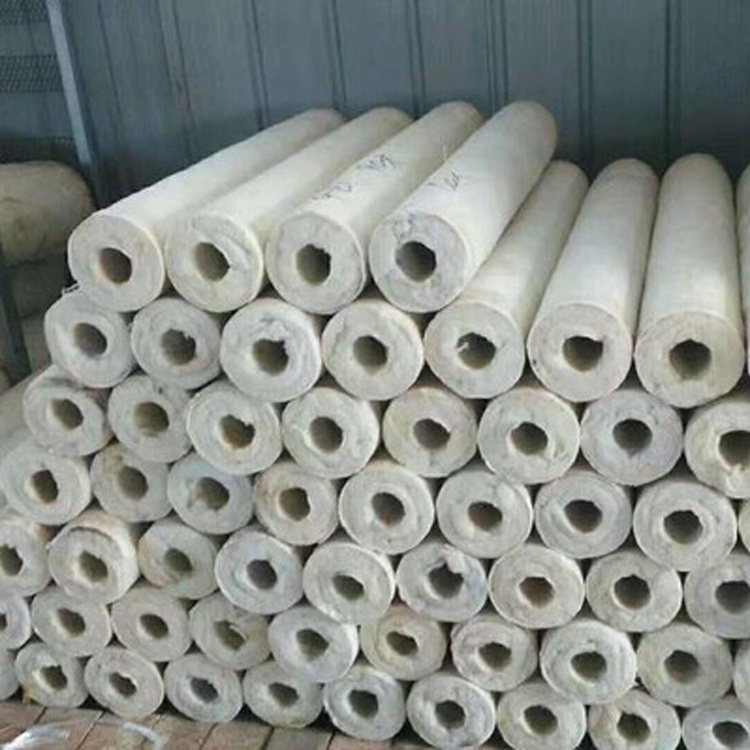

Ceramic Fiber Pipe,KNRC Aluminum Silicate Material 1260c High Temperature Insulating Tube For Ceramic Kiln Pottery
Features:
1.High temperature resistance, good heat insulation.
2.Prevent the pipeline from open fire, melt splash, high temperature heat radiation.
3.It can effectively avoid personnel suffering from the burning injury of high-heat pipelines (lines) in the high-temperature area.
4.Stable chemical properties, can withstand the erosion of a variety of chemical substances.
Application:
Aluminum silicate fiber tube is widely used on cable, hose, tubing, exhaust pipe and so on in the fields of metallurgy, petrochemical, electric power, automobile, aviation and other fields under high temperature environment .
Size:
Inner diameter: φ18-529mm
Wall thickness: 30mm-150mm
Length: 1000mm
It is also customized according to your drawing.
Specifications:
|
|
ASFT-1 |
ASFT-2 |
|
Service temperature(℃) |
1000 |
1260 |
|
Bulk density(kg/m3) |
100-180 |
150-300 |
|
Thermal conductivity w/(m·k) |
0.034(20℃) |
0.127(600℃) |
|
0.09(400℃) |
0.20(1000℃) |
|
|
0.12(600℃) |
|
|
|
Shot content(%)Φ>0.25mm |
11 |
13.6 |
|
Permanent liner change % (After 24 hours) |
3.5 |
2 |
|
600℃ |
1000℃ |
