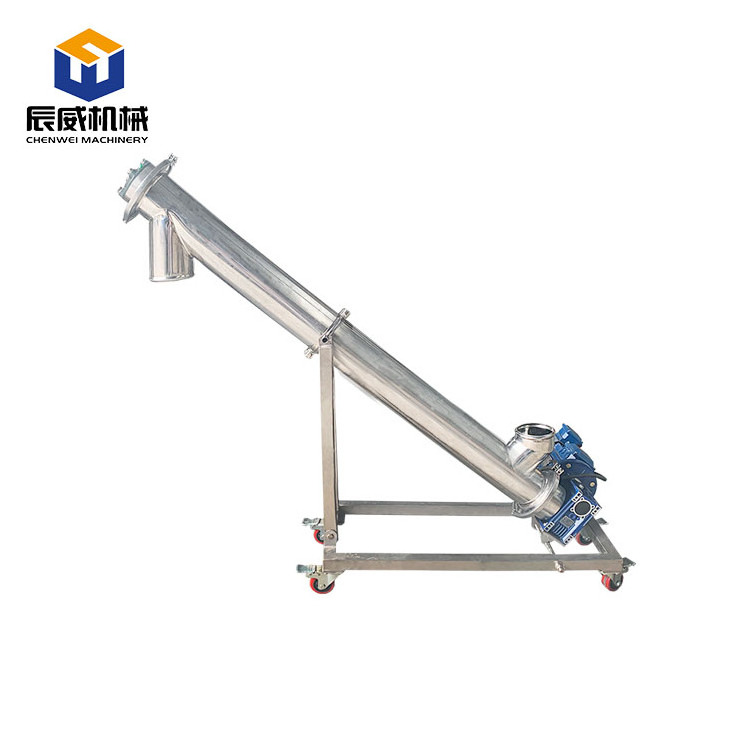

Suitable for conveying materials at an Angle of more than 20 degrees
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Chenwei
-
Voltage:
-
As per order
-
Dimension(L*W*H):
-
As per order
-
Screw diameter:
-
100-1250mm
-
Screw pitch:
-
100-630mm
-
Speed(r/min):
-
20-112
-
Color:
-
As per order
-
Pipe angle:
-
General 45 degree,30degree,60degree
-
OEM:
-
Available
-
Special design:
-
Available
-
Unique feature:
-
No-clogging design
-
Conveying distance:
-
Up to 40m
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Video technical support
-
Certification:
-
ISO BV CE
Quick Details
-
Power:
-
As per order
-
Warranty:
-
1 Year
-
Width or Diameter:
-
500mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Chenwei
-
Voltage:
-
As per order
-
Dimension(L*W*H):
-
As per order
-
Screw diameter:
-
100-1250mm
-
Screw pitch:
-
100-630mm
-
Speed(r/min):
-
20-112
-
Color:
-
As per order
-
Pipe angle:
-
General 45 degree,30degree,60degree
-
OEM:
-
Available
-
Special design:
-
Available
-
Unique feature:
-
No-clogging design
-
Conveying distance:
-
Up to 40m
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Video technical support
-
Certification:
-
ISO BV CE
Product Description
Screw elevator description
Spiral hoist is widely used in building materials, chemical industry, coal, grain and oil, feed and other industries. It is suitable for horizontal or inclined conveying of powdery, granular and small materials, such as grain, diesel, coal, flour, cement, fertilizer, etc. It is not allowed to transport perishable, sticky and caking materials. The operating ambient temperature is - 20 ~ 50 ℃, and the temperature of transported materials is ≤ 200 ℃. In order to meet the different needs of different industries, we have produced various types of screw conveyor for selection, such as U-groove screw conveyor, tube screw conveyor, shaftless screw conveyor, double screw conveyor.
Application of screw conveyor
1.Suitable for building materials, chemical industry, electric power, metallurgy, coal, food and other industries,
2.It is suitable for horizontal or inclined transportation of powdery, granular and small block materials (such as coal, dust, residue, cement, grain, etc.).
|
Model
|
Spiral diameter (mm)
|
Screw-pitch
(mm)
|
Speed
(r/min)
|
Capacity
(m³/h)
|
|
CWLS-100
|
100
|
100
|
140
|
2.2
|
|
CWLS-160
|
160
|
160
|
112
|
7
|
|
CWLS-200
|
200
|
200
|
100
|
13
|
|
CWLS-250
|
250
|
250
|
90
|
22
|
|
CWLS-315
|
315
|
315
|
80
|
31
|
|
CWLS-100
|
100
|
355
|
71
|
56
|
|
CWLS-500
|
500
|
400
|
63
|
98
|
|
CWLS-630
|
630
|
450
|
50
|
140
|
|
CWLS-800
|
800
|
500
|
40
|
300
|
|
CWLS-1000
|
1000
|
560
|
32
|
280
|
|
CWLS-1250
|
1250
|
630
|
25
|
380
|
Screw elevator structure
Detailed Images
Motor
The installation position can be customized
Different types of screws
Suitable for horizontal long-distance transportation of materials,
Easy to clean
Special customization
Screw conveyor with hopper
Screw conveyor
feeding
for
packing machine
Screw conveyor with a big hopper
Packing & Delivery
Our Company
Xinxiang Chenwei Machinery Co., Ltd is a manufacturer of vibrating screens, centrifugal sifters, tumbler screens, gyratory screens and aluminum foil tape with well-equipped testing equipment and strong technical force.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in mining, pharmacy, food, chemical, metal powder and other industries.
Our Service
-Guarrantee and after sale service :
--One year guarantee for the whole machine
--24hours technical support by email
--24 hours online service
--Instruction in English language
--User manual in PDF and Printed copy
--Installation videos
--24hours technical support by email
--24 hours online service
--Instruction in English language
--User manual in PDF and Printed copy
--Installation videos
Six free services including regular follow up services:
1.FREE technical enquiriet
2.FREE repairs during warranty
3.FREE special services for key projects
4.FREE inspection upon delivery
5.FREE operation and repair training
6.FREE period follow-up and maintenance service
2.FREE repairs during warranty
3.FREE special services for key projects
4.FREE inspection upon delivery
5.FREE operation and repair training
6.FREE period follow-up and maintenance service
Related Products
FAQ
Q: What factors do I need to get the offer?
A: Material bulk density, length and angle of conveying Series and ideal capacity of appropriate type, particle size distribution is recommended.
Product material requirements (carbon steel Q235A, stainless steel SUS304 or SUS316, etc.) voltage and frequency (Hz) also need accurate quotation.
Q: What is the actual delivery time of your factory?
A: 7-15 days for general series products, 30-60 days for batch products and customized products according to different
situations.
situations.
If you have any request, you can contact us at any time.
