- Product Details
- {{item.text}}
Quick Details
-
Power:
-
29.4KW
-
After-sales Service Provided:
-
Overseas service center available
-
Item:
-
tractor
-
overall dimension:
-
3074*1560*1965
-
shaft space:
-
1606mm
-
wheelbase:
-
1000/1200mm
-
min. clearance to ground:
-
280mm
-
min. mass:
-
1290kg
-
start mode:
-
elecric starter
-
power:
-
15.7kw
-
max. traction:
-
6.5kn
-
fuel tank volume:
-
21L
Quick Details
-
Brand Name:
-
hongji
-
Model Number:
-
HQ404
-
Place of Origin:
-
Shandong, China
-
Power:
-
29.4KW
-
After-sales Service Provided:
-
Overseas service center available
-
Item:
-
tractor
-
overall dimension:
-
3074*1560*1965
-
shaft space:
-
1606mm
-
wheelbase:
-
1000/1200mm
-
min. clearance to ground:
-
280mm
-
min. mass:
-
1290kg
-
start mode:
-
elecric starter
-
power:
-
15.7kw
-
max. traction:
-
6.5kn
-
fuel tank volume:
-
21L

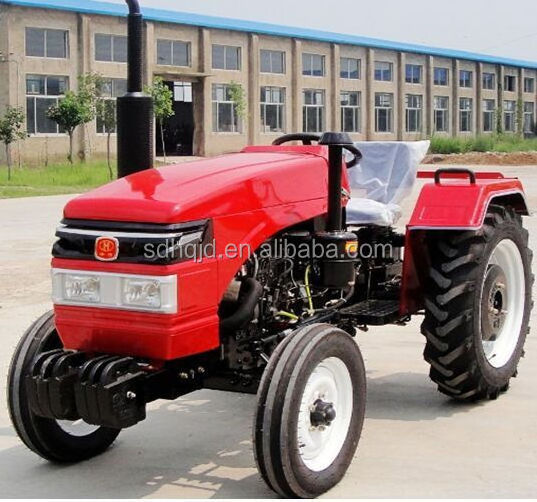

20-40hp small tractor
|
MODEL |
TY404 |
|
Horsepower&Drive Type |
40hp, 4×4 |
|
ENGINE |
|
|
Engine Model |
4L22BT |
|
No. of Cylinders-Bore×Stroke(mm) |
4-88*95 |
|
Rated Output(kW)/Speed(r/min) |
29.4/2400 |
|
TRACTOR PARAMETER |
|
|
Rated Traction(KN) |
7.8 |
|
Dimension L*W*H (mm) |
3050*1350*2050 |
|
Wheel Base (mm) |
1720 |
|
Wheel Tread F/R(mm) |
1060/1080 |
|
Min Ground Clearance(mm) |
350 |
|
Structure Weight(KG) |
1280 |
|
TRANSMISSION |
|
|
Gear Shift |
8F+2R |
|
Clutch Type |
Dry Single-stage |
|
Differential Lock |
Differential Lock |
|
RUNNING SYSTEM |
|
|
Tire F/R |
5.50-16/9.50-24 |
|
Steering |
Mechanical Steering |
|
Brake |
Toe Type |
|
Park Brake |
Latch Pedal |
|
WORKING SYSTEM |
|
|
Hitch |
3-Point hydraulic hitch , Category Ⅰ |
|
Max. Lift Force(N) |
≥6615 |
|
PTO Shaft Type |
Rectangle Spline, 6 Teeth |
|
PTO Rotation Speed(rpm) |
720rpm |
|
|
|
|
Options |
|
|
Front balance weight |
$50 |
|
Rear balance weight |
$50 |
|
Hydraulic Steering |
$163 |
|
Iron Frame Package |
$82 |
|
Packing size : 2.28*1.3*1.2 N.W : 1280kg G.W : 1380kg |
|
|
