Quick Details
-

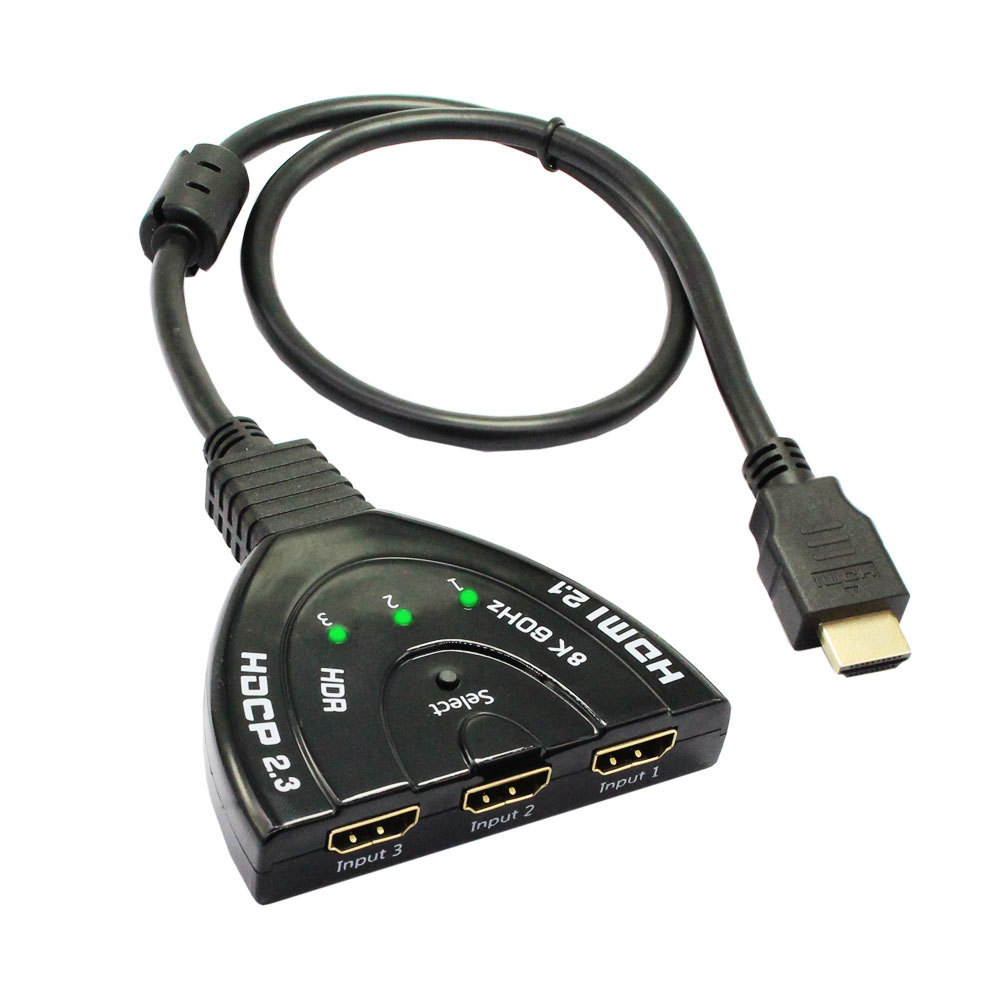

Product name:
-
HDMI Switch
-
Input:
-
3 HDMI
-
Output:
-
HDMI*1
-
Resolution:
-
8K@120Hz
-
Warranty:
-
1 Year
-
Function:
-
Switch
-
HDMI version:
-
HDMI 2.1 HDCP 2.3
-
Keyword:
-
Switch Hdmi 3x1 pigtail
-
Material:
-
Aluminum Alloy
-
Package:
-
Carton Box
Quick Details
-
Model Number:
-
YZ-8K_3X1
-
Brand Name:
-
Yunzuo
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
HDMI Switch
-
Input:
-
3 HDMI
-
Output:
-
HDMI*1
-
Resolution:
-
8K@120Hz
-
Warranty:
-
1 Year
-
Function:
-
Switch
-
HDMI version:
-
HDMI 2.1 HDCP 2.3
-
Keyword:
-
Switch Hdmi 3x1 pigtail
-
Material:
-
Aluminum Alloy
-
Package:
-
Carton Box
As a factory, Yunzuo company's advantages：
1、10+years'HDMI related A/V products research & production experience.
2、HDMI & HDCP Adopter.
3、Experienced engineers. Strictlyquality control.
4、ISO certified factory supplier.
5、More than 20 HDMI related patents in A/V field.
5、More than 20 HDMI related patents in A/V field.
6、
Free logo&brand print on device, package, cartons and custom solution.
Welcome to contact us！
Product Description
HDMI version…………………………………………............ HDMI 2.1, HDCP 2.3
HDMI resolution.............24/50/60fps/480i/480p/576i/576p/720p/1080i/1080p/
Supports video color format ....………................. 24bit/deep color 30bit, 36bit
Supports audio format…...........................DTS-HD/Dolby-trueHD/LPCM7.1/
DTS/Dolby-AC3/DSD HD(HBR)
Max bandwidth……………………………….......………………………….600MHz
Max baud rate…………………….…………........……..……………….. 48.0Gbps
Input/Output DDC signal ………………...................…...……. 5Volts p-p (TTL)
1080P Input cable distance..................... ≤ 5m AWG24 HDMI standard cable
8K Input cable distance .......................... ≤5m AWG24 HDMI standard cable
Max working current………………………....………………………………..125mA
Operating Temperature range……..….…...…………………..... (-40℃ to +85℃)
Operating Humidity range…………….......... …5 to 90%RH (No Condensation)
Dimension (L x W x H)……………….......…........................ 82 x 77 x 16.5(mm)
Weight……........................................................................................102g
◆Supports 3 HDMI input ports.
◆ Supports 1 HDMI output port.
◆ Supports HDMI 2.1 Compatible input and output ports.
◆ Supports video solution up to 8K@60Hz.
◆ Support Deep Color.
◆ Maximum TMDS throughput up to 6Gbps per lane (Total 48Gbps).
◆ Support HDMI input and backward compatibility allows DVI inputs.
◆ Support dual mode of AC coupled and DC coupled inputs and automatically
switch either mode.
◆ A programmable range of receiver equalization ratio: 5dB ~ 15dB @ 6Gbps
for various quality and length cables.
◆ Supports output swing adjustment and pre-emphasis enhancement.
◆ Integrated internal terminations of 50 ohm resistance.
◆ Support single AV source input plug & play.
◆ Toggle between AV sources using a single button switch port rotation or
software (MCU) programming.
◆ No loss of quality.
◆ Installs in minutes
Specification
|
Color
|
black
|
|
Model Number
|
YZ-8K_3X1
|
|
Brand Name
|
Yunzuo
|
|
Product name
|
HDMI Switch
|
|
Input
|
3 HDMI
|
|
Output
|
HDMI*1
|
|
Resolution
|
8K@60Hz
|
|
Warranty
|
1 Year
|
|
Function
|
Switch
|
|
HDMI version
|
HDMI 2.3
|
|
Keyword
|
Switch Hdmi 3*1 pigtail
|
|
Material
|
Aluminum Alloy
|
|
Package
|
Carton Box
|
Packing & Delivery
Carton or color box ！
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
