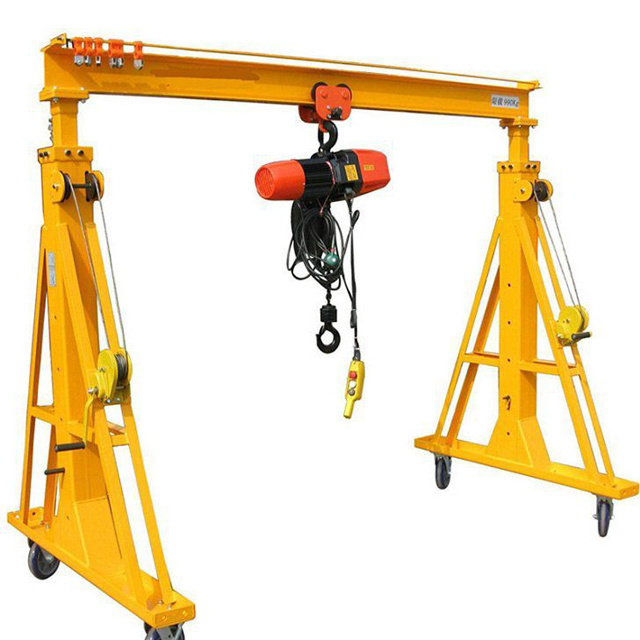

Widely Used 500Kg 1 2 3 Ton Small Mini Mobile Portable Electric Manual Pushed A-Frame Gantry Crane

This gantry crane has been designed to accommodate larger capacities of up to 5,000 kg and is unique in the international marketplace as this can be certified as "movable under load" upon request.

The minimalist design consists of 3 main components, a bridge beam and a pair of “A frame ” legs with simple bolted connection between.

The main beam is a horizontal member fabricated from rolled steel fitted with end plates and cheek plates suitable for connection to the rolled hollow steel leg sections.

These gantry crane come in two options, both of which can be adapted for indoor or outside use.

Each of the legs / vertical supports collapses for ease of transport making the gantry easily handled and be transported to other working areas.

The braked load trolley is Included as standard as is a 'box section' top lifting beam; the trolley is low headroom design providing a smooth and safe means of traversing a load.

With 4 steel castors, heavy duty polyurethane.By releasing the fixed direction wheels the crane can be moved freely. With the use of the brake system the crane can be secured in position. The crane is equipped with a lateral brakes on both sides of the lifting gantry providing additional stability and rigidity.

• Can be certified as "movable under load"
• Designed in accordance with harmonised European standards
• Made in the China

Various options and accessories are available to you to ensure you end up with an A-frame crane suited to the task in hand:

• Manual or powered hoist travelling and hoisting motions
• Cast iron or poly tyred castors
• Castor locks
• Jacks
• Electrical isolators
• End stops
• Air feeds
• Festoons
• Galvanising (e.g. for outdoor use)

PACKAGE

• Wooden box
• Carton box
• According to buyer's requirements

SHIPPING LIFTING CHAIN

• Via sea, 30-40days , to your local sea port
• Via air, 8-10days , to your local airport
• Via courier, 5-7days , door to door
• Via truck, 18-20days , to your local train station

1.What’s your product range?

Electric winch

Hydraulic engine crane

Chain block

Ratchet tie down strap

Hand pallet truck

Forklift

Magnetic Lifters

JM/JK Electric winch

G80,G70,G43,G30 lifting chain

Hoist: Chain hoist , electric wire rope hoist Lever Hoist

Electric trolley

2.When Can I get the quotation?

We usually quote within 24 hours after we get your inquiry . If you are very urgent to get the price , please call us (8618132588537)

3.How can I get a sample to check your quality?

After price confirmation, If you need the samples, you need pay the express fee and the sample cost

4.What about the lead time for mass production?

we can sure within 10-20 days delivery time, but depends on the quantity !
