* High-transmittance and low reflection
* Inspection:GB15763.2-2005.ISO9050
* High solar transmittance
* High mechanical strength
* High flatness
- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
25YEARS, 25 Years Output Power Guarantee
-
Brand Name:
-
DAH
-
Model Number:
-
DHM60-280w
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
1650*991*35mm
-
Product name:
-

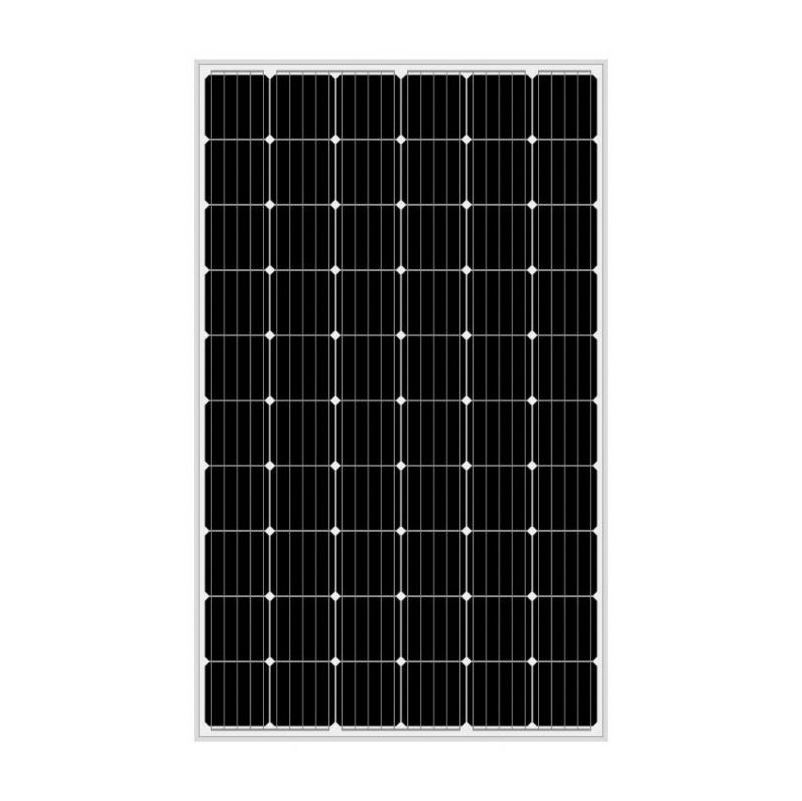

280W 280watts Watt Wp Pv Mono Photovoltaic Solar Panel
-
Solar cell:
-
Mono 156*156 Cell
-
Use:
-
Home Commercial
-
Junction Box:
-
IP67 Waterproof
-
Frame:
-
Aluminum Alloy
-
Color:
-
Blue Ad Black
-
Connector:
-
QC4 Compatible Connector
-
Maximum system Voltage:
-
1000/1500 VDC(IEC)
-
Certificate:
-
TUV/IEC/CEC/ISO/INMETRO
Quick Details
-
Cell size:
-
156.75mmx156.75mm
-
Type:
-
PERC, Half Cell
-
Panel Efficiency:
-
18.65%
-
Warranty:
-
25YEARS, 25 Years Output Power Guarantee
-
Brand Name:
-
DAH
-
Model Number:
-
DHM60-280w
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
1650*991*35mm
-
Product name:
-
280W 280watts Watt Wp Pv Mono Photovoltaic Solar Panel
-
Solar cell:
-
Mono 156*156 Cell
-
Use:
-
Home Commercial
-
Junction Box:
-
IP67 Waterproof
-
Frame:
-
Aluminum Alloy
-
Color:
-
Blue Ad Black
-
Connector:
-
QC4 Compatible Connector
-
Maximum system Voltage:
-
1000/1500 VDC(IEC)
-
Certificate:
-
TUV/IEC/CEC/ISO/INMETRO
Product Description
|
Module Type
|
DHM60-290
|
DHM60-295
|
DHM60-300
|
DHM60-305
|
|||
|
Maximum Power (Pmax)
|
290W
|
295W
|
300W
|
305W
|
|||
|
Open-circuit Voltage (Voc)
|
39.5V
|
39.7V
|
39.9V
|
40.02V
|
|||
|
Maximum Power Voltage (Vmp)
|
32.2V
|
32.5V
|
32.6V
|
32.9V
|
|||
|
Short-circuit Current (Isc)
|
9.50A
|
9.55A
|
9.64A
|
9.74A
|
|||
|
Maximum Power Current (Imp)
|
9.01A
|
9.08A
|
9.20A
|
9.27A
|
|||
|
Module Efficiency(%)
|
17.74%
|
18.04%
|
18.35%
|
18.65%
|
|||
|
Power Tolerance
|
0~+5W
|
|
|
|
|||
|
Standard Test Environment
|
Irradiance 1000W/m2, Cell Temperature 25℃,Spectrum AM 1.5
|
|
|
|
|||
Product Details
Glass
Solar Cell
* High output-power: conversation efficiency is 18%-22%
* High shunt-resistance: adapt the several environmental conditions.
* Bypass diode minimizes the power drop by shade
* Excellent low light effect
* Low breakage rate
Frame
* Aluminium extrusion profile with prompt delivery
* Available in customized surface finish
* Excellent material for smooth and subtle edges
* Extrusion for construction and other industrial purposes
* Thickness variable according special request
Junction Box
* High current and voltage carrying capacity
* Simple, quick and safe effective field assembly
* IP 67 it can be used in the outdoor iron environment
* Expansion connector are available for future requirement
* Double permanent connection are adapted for all of the connecting.
Line&Packing
|
(60 cells )Container
|
20GP
|
40GP
|
40HC
|
|
Pcs/Pallet
|
30
|
30
|
30
|
|
Pallets/Container
|
14
|
28
|
28
|
|
Pcs/Container
|
400
|
840
|
924
|
|
(72 cells )Container
|
20GP
|
40GP
|
40HC
|
|
Pcs/Pallet
|
27
|
27
|
27
|
|
Pallets/Container
|
10
|
24
|
24
|
|
Pcs/Container
|
270
|
648
|
696
|
Project cases
Company&Exhibition
Why Choose us
Independent R&D team
More than 30 R&D team for Smart PV System, 30+ Developed invention patents, annually investment amount over 1,500,000USD
World-Wide Reviews
WORLD -WIDE CUSTOMERS COMMENTS & FEEDBACk
Complete certificates
ISO, CE, TUV Rehinland, CEC Listed, INMETRO, FIDE...
Pay Attention ~
1.Factory Direct Price
2.NICE Quality.
3.QUICK SHIPPING Fastest 7 DAYS.
4.No MOQ,Small Order Welcome.
5.Customized Design,suppport OEM for all orders.
6.Support REFUND Money if the quality is not satisfactory.
7.PAYMENT Support T/T, L/C, Credit Card, E-checking, Western Union.
Payment
|
Payment Term
|
T/T
|
EXW
|
30% T/T in advance, balance paid before dispatch
|
||
|
|
|
FOB
|
|
||
|
|
|
CNF(CFR)
|
30% T/T in advance,
balance paid againist copy of B/L
|
||
|
|
|
CIF
|
|
||
|
|
L/C , Money Gram , Western Union , Paypal
|
|
|
||
|
Delivery Time
|
7-10 working days after down payment received
|
|
|
||
