Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LANJIU
-
Model Number:
-
LK215BLS0450-15B
-
Torque:
-
31.8N.m
-
Product Name:
-
BLDC Motor
-
Application:
-
Automatic Product
-
Keywords:
-
High Torque BLDC Motor
-
Motor type:
-
DC Brushless Three Phase
-
Rated Voltage:
-
48V
-
Name:
-
Brushless Motor
-
Size:
-
220MM
-
Power:
-
2kw 4KW 5kw 6KW
-
Rated Speed:
-
1500RPM
-
Shaft type:
-
Keyway
Quick Details
-
Speed(RPM):
-
1500RPM
-
Continuous Current(A):
-
130A
-
Efficiency:
-
Ie 3
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LANJIU
-
Model Number:
-
LK215BLS0450-15B
-
Torque:
-
31.8N.m
-
Product Name:
-
BLDC Motor
-
Application:
-
Automatic Product
-
Keywords:
-
High Torque BLDC Motor
-
Motor type:
-
DC Brushless Three Phase
-
Rated Voltage:
-
48V
-
Name:
-
Brushless Motor
-
Size:
-
220MM
-
Power:
-
2kw 4KW 5kw 6KW
-
Rated Speed:
-
1500RPM
-
Shaft type:
-
Keyway

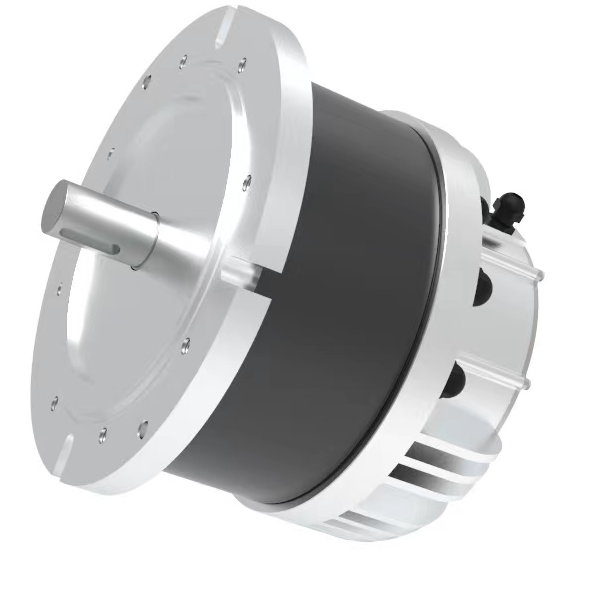

high torque high power bldc motor 2kw 3kw 4kw 5kw 48v brushless dc motor 4000w
heavy duty pancake brushless motor
Axial magnetic field motor (Axial Flux Permanent Magnet Machine AFPMM) is also known as disk-type permanent magnet motor, axial magnetic field motor air gap is planar, air gap magnetic field along the axial distribution.
Because of its compact structure (short axial size), small size, high efficiency, large power density, good speed regulation performance, small moment of inertia, high reliability and short magnetic field circuit, so the motor structure is small size, light weight, the motor's stator structure is convenient for the motor core and winding cooling, can obtain a larger heat dissipation area.
Axial magnetic field motors are widely used in small and medium-sized new energy electric vehicles, electric forklifts, heavy AGV, lawnmower and drive, marine electric propulsion, wind power and industrial equipment mobile platforms, pumps, fans and so on.
| Transveres flux permanent magnet motor |
| Compact size, short axial size |
| High efficiency, power factor 0.85 |
| High torque density |
| Lower rotational inertia |
| Small volume and light weight |
| The structure of the motor is conductive to the cooling of the motor core and winding |
| Be widely used in electric vehicle, electric boat, wind power generation equipment, industry equipmetn. |
