1.Small beam size from 5um 2.Compact and light weight
- Product Details
- {{item.text}}
Quick Details
-
Weight (KG):
-
0.01 KG
-
Wavelength:
-
405nm-980nm
-
Dimension:
-
Customized
-
Beam Type:
-
Dot, Line, Hair Cross
-
LD Power:
-
1-5mw
-
Case Material:
-
Aluminum or brass
-
Circuit Protection:
-
Static, Surge, and Reverse Polarity Protected
-
MTTF:
-
>10,000hrs
-
Operating Current:
-
25-5000mA
-
Input Voltage:
-
3VDC
-
MOQ:
-
1 Piece
Quick Details
-
Place of Origin:
-
Shaanxi, China
-
Spare Parts Type:
-
Laser Component
-
Brand Name:
-
OEM
-
Weight (KG):
-
0.01 KG
-
Wavelength:
-
405nm-980nm
-
Dimension:
-
Customized
-
Beam Type:
-
Dot, Line, Hair Cross
-
LD Power:
-
1-5mw
-
Case Material:
-
Aluminum or brass
-
Circuit Protection:
-
Static, Surge, and Reverse Polarity Protected
-
MTTF:
-
>10,000hrs
-
Operating Current:
-
25-5000mA
-
Input Voltage:
-
3VDC
-
MOQ:
-
1 Piece
|
Specification
|
Industrial Mini Laser Diode Module
|
|
|
|
|
|
|||||
|
Wavelength
|
450nm
|
520nm
|
635nm
|
650nm
|
780nm
|
850nm
|
|||||
|
Output Power
|
≤ 5mW
|
≤ 5mW
|
≤ 5mW
|
≤ 5mW
|
≤ 5mW
|
≤ 5mW
|
|||||
|
CDRH Class
|
I, II, IIIa, IIIb
|
|
|
|
|
|
|||||
|
Aperture
|
Ø1.0mm, Ø1.5mm, Ø2.0mm, Ø2.4mm, Ø3.0mm
|
|
|
|
|
|
|||||
|
Divergence
|
0.6mrad, 0.8mrad, 1.0mrad, 1.5mrad, 2.0mrad, 3.0mrad
|
|
|
|
|
|
|||||
|
Beam Size
|
5x10mm, 6x12mm, 8x16mm, 10x20mm (@10m)
|
|
|
|
|
|
|||||
|
Laser Drive Modes
|
CW, Analog Modulation, Digital Mdulation
|
|
|
|
|
|
|||||
|
Lens
|
Optical Glass Lens
|
|
|
|
|
|
|||||
|
Input Voltage
|
3.0V 5.0V
|
|
|
|
|
|
|||||
|
Operating Temperature
|
-10℃~50℃
|
|
|
|
|
|
|||||
|
Storage Temperature
|
-40℃~80℃
|
|
|
|
|
|
|||||
|
MTBF
|
>8,000hours
|
|
|
|
|
|
|||||

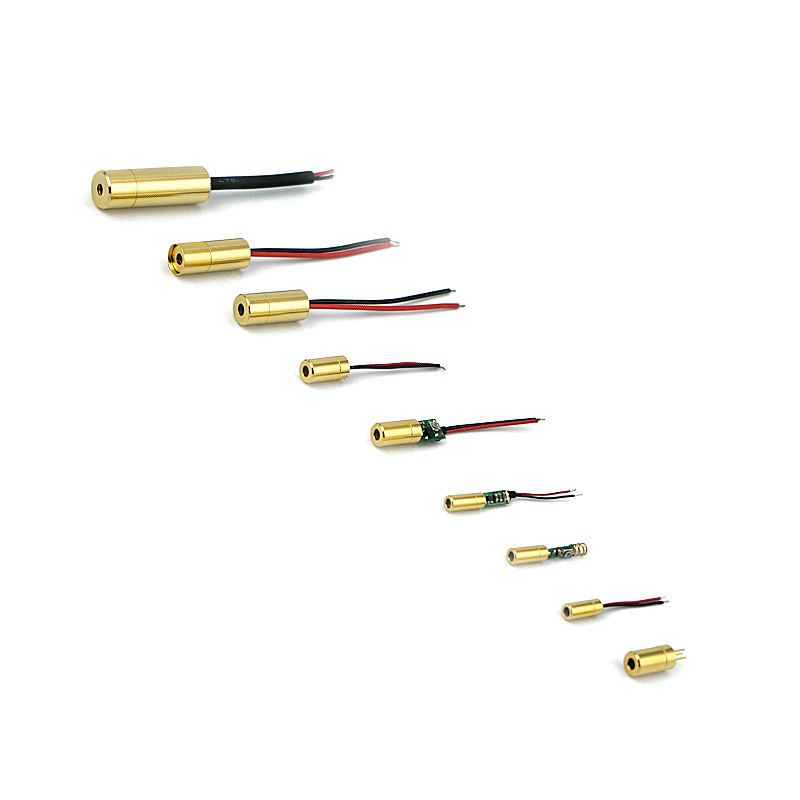

Mini Lasers
Mini Lasers
3.Long term stability 4.High reliability
Mini Lasers
5.High power density 6.Water-resistant IP55~65
ELITE Design
ELITE offers the ultra-small beam laser diode module,specially designed for high precision instrumrnt and equipment,widely used in precise positioning and high-precision detection.
FAQs
1. What's the way of shipping
Shipping via DHL, TNT, UPS, FedEx, and EMS.
2. What's the payment method?
Assurance payment on Alibaba
3. What's your MOQ?
1 Piece
4. What's the delivery time?
3 – 7 days for International Shipping
5. Can I customize the products based on my requirements?
Yes. We can design and produce lasers based on your special requirements.
6. Do you have any certifications for lasers?
Yes. All our lasers are certified with CE, RoHS.
7. How long is the warranty period?
12 months.
Shipping via DHL, TNT, UPS, FedEx, and EMS.
2. What's the payment method?
Assurance payment on Alibaba
3. What's your MOQ?
1 Piece
4. What's the delivery time?
3 – 7 days for International Shipping
5. Can I customize the products based on my requirements?
Yes. We can design and produce lasers based on your special requirements.
6. Do you have any certifications for lasers?
Yes. All our lasers are certified with CE, RoHS.
7. How long is the warranty period?
12 months.
