Quick Details
-
Range of Spindle Speed(r.p.m):
-
2800 - 3800 r.p.m
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
saiyu
-
Voltage:
-
According to model
-
Dimension(L*W*H):
-
According to model
-
Weight (KG):
-
320 KG
-
Marketing Type:
-
Available
-
Function:
-
Make Dry Powder
-
After-sales Service Provided:
-
Online Support
-
Product name:
-
Stainless Steel Crusher Mill
-
Color:
-
Clients' Requirement
Quick Details
-
Output (kg/h):
-
100 - 300 kg/h
-
Feeding Size (mm):
-
10 - 15 mm
-
Output Size (mesh):
-
60 - 120 mesh
-
Range of Spindle Speed(r.p.m):
-
2800 - 3800 r.p.m
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
saiyu
-
Voltage:
-
According to model
-
Dimension(L*W*H):
-
According to model
-
Weight (KG):
-
320 KG
-
Marketing Type:
-
Available
-
Function:
-
Make Dry Powder
-
After-sales Service Provided:
-
Online Support
-
Product name:
-
Stainless Steel Crusher Mill
-
Color:
-
Clients' Requirement
Product Overview
FS series square oscillating screen

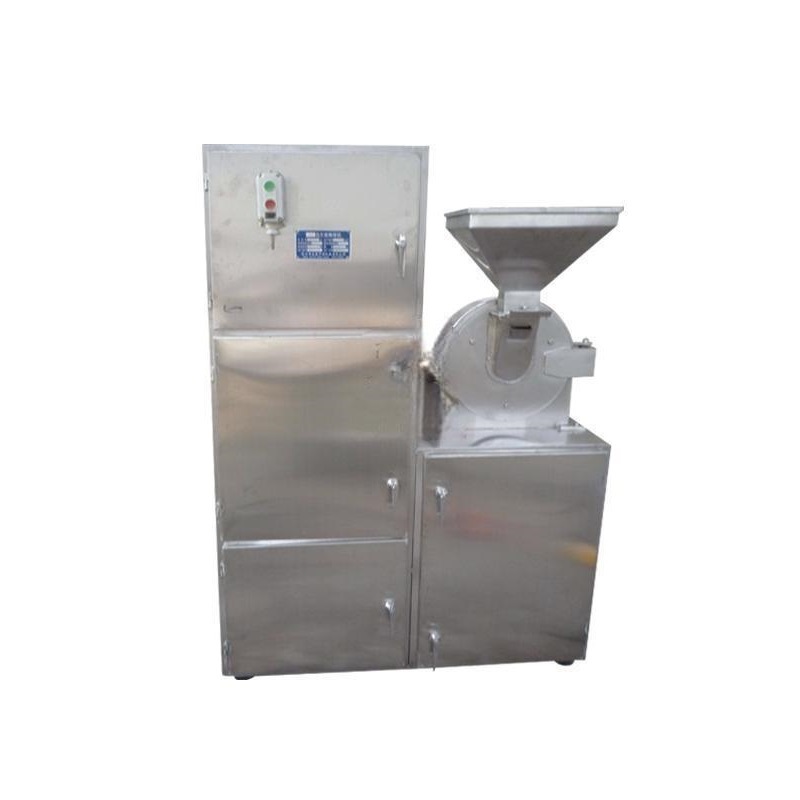

30B series universal high efficiency grinding machine is composed of crusher, ESC material collection box and ESC vacuum cleaner. Solve the dust flying in the crushing process of the material. The working principle of the machine is that the material enters the crushing chamber, and is crushed under the impact, shear, friction and mutual impact between the teeth between the high-speed rotating movable tooth plate and the fixed tooth plate, and becomes the required powder after screening by the screen.
Application area
This machine (group) is suitable for crushing brittle materials in pharmaceutical, chemical, food, pesticide and other industries. It is a new generation of crushing equipment integrating crushing and vacuuming.
Technical specifications
|
Model
|
unit
|
20B/20B set
|
30B/30B set
|
40B/40B set
|
60B/60B set
|
|
Production capacity
|
kg/h
|
60-150
|
100-300
|
160-800
|
500-1500
|
|
Spindle speed
|
r/min
|
4500
|
3800
|
3400
|
2800
|
|
Feed particle size
|
mm
|
6
|
10
|
12
|
15
|
|
Mesh
|
mesh
|
60-150
|
60-120
|
60-120
|
60-120
|
|
Crushing motor power
|
kw
|
4
|
5.5
|
11
|
15
|
|
Vacuum fan power
|
kw
|
1.5
|
1.5
|
1.5
|
2.2
|
|
Weight
|
kg
|
250
|
320
|
550
|
680
|
|
Overall dimensions（L×W×H）
|
mm
|
550×600×1250
|
600×700×1450
|
800×900×1550
|
1000×900×1680
|
|
External dimensions (unit)（L×W×H）
|
mm
|
1100×600×1650
|
1200×650×1650
|
1350×700×1700
|
1550×1000×1750
|
Product Photos
