--On-time delivery.
--Installation guide.
--5 Years warranty.
--High efficiency.
--Low wind speed to start the wind turbine.
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
SH-Q5000
-
Certification:
-
CE,ISO9001,ROHS
-
Output Voltage:
-
48/96/110/220/380v,customized
-
rotor diameter:
-
2.5m
-
Rated power:
-
5000w
-
Start-up wind speed:
-
2m/s
-
Rated wind speed:
-
11m/s
-
Survival wind speed:
-
50m/s
-
Blade material:
-
Aluminum alloy
-
Blade quantity:
-
3 blades
-
Generator:
-
Three phase AC permanent magnet generator
-
The wind adjustment:
-
Automatically adjust to windward
Quick Details
-
Rated Power:
-
5000w
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SH
-
Model Number:
-
SH-Q5000
-
Certification:
-
CE,ISO9001,ROHS
-
Output Voltage:
-
48/96/110/220/380v,customized
-
rotor diameter:
-
2.5m
-
Rated power:
-
5000w
-
Start-up wind speed:
-
2m/s
-
Rated wind speed:
-
11m/s
-
Survival wind speed:
-
50m/s
-
Blade material:
-
Aluminum alloy
-
Blade quantity:
-
3 blades
-
Generator:
-
Three phase AC permanent magnet generator
-
The wind adjustment:
-
Automatically adjust to windward

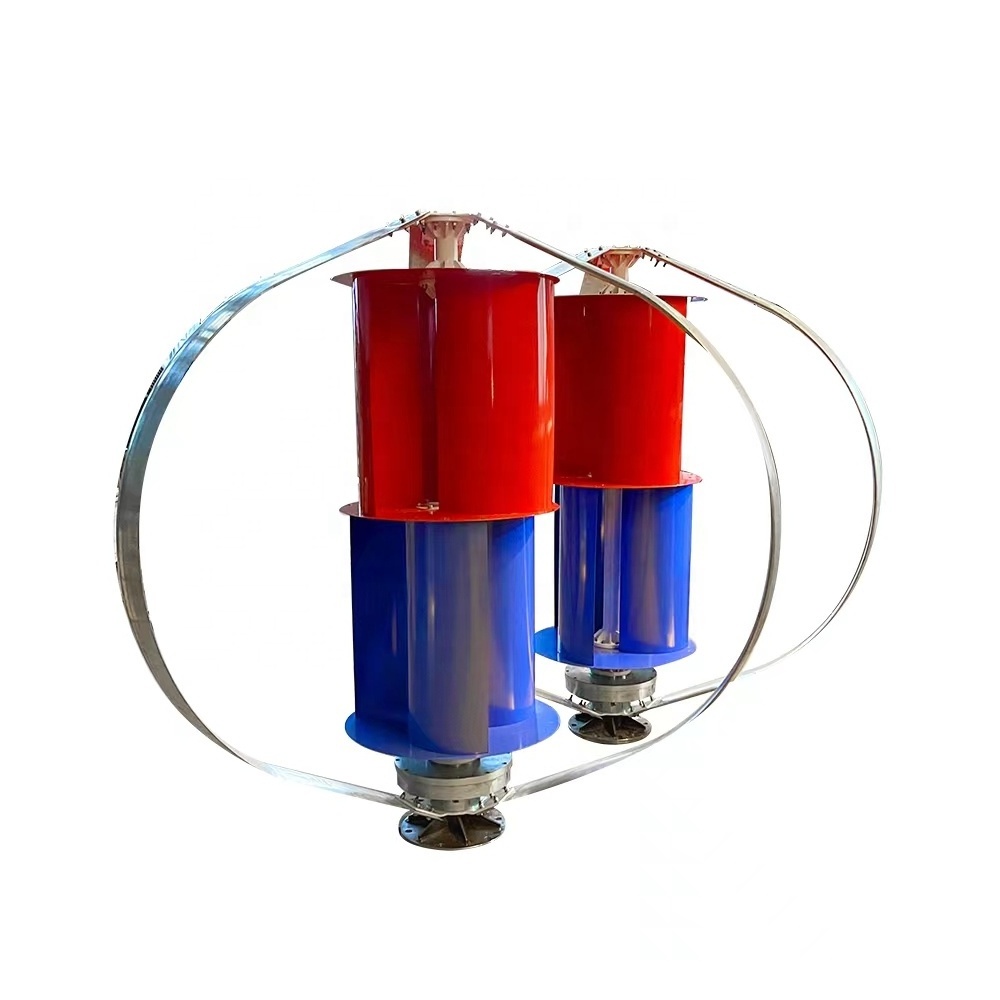

Q Vertical Wind Turbine,2kw,3kw,5kw,7kw,10kw
--Direct factory,with professional engineers team to support whole projects.
Product Characteristics
|
Mode
|
SH-Q2000
|
SH-Q3000
|
SH-Q5000
|
SH-Q7000
|
SH-Q10K
|
||||
|
Rated power
|
2000W
|
3000W
|
5000W
|
7000W
|
10KW
|
||||
|
Max power
|
2200W
|
3500W
|
6000W
|
8000W
|
12KW
|
||||
|
Rated Voltage
|
12/24/48V
|
48/96/110/220/380V
|
48/96/110/220/380V
|
96/110/220/380V,customized
|
96/110/220/380V,customized
|
||||
|
Blade Height
|
1.5m
|
2m
|
2.5m
|
3m
|
4m
|
||||
|
Rotor Diameter
|
2m
|
2m
|
2.5m
|
3m
|
4m
|
||||
|
Weight
|
50kgs
|
120kgs
|
160kgs
|
250kgs
|
500kgs
|
||||
|
Start up wind speed
|
2m/s
|
|
|
|
|
||||
|
Rated wind speed
|
10m/s
|
|
|
|
|
||||
|
Survival wind speed
|
55m/s
|
|
|
|
|
||||
|
Blade quantity
|
3pcs
|
|
|
|
|
||||
|
Blade material
|
Aluminum alloy
|
|
|
|
|
||||
|
Packing
|
Carton/wooden box
|
|
|
|
|
||||
|
Generator type
|
Three phase AC permanent magnet generator
|
|
|
|
|
||||
|
Braking model
|
Electromagnetism
|
|
|
|
|
||||
|
The wind adjustment
|
Automatically adjust to windward
|
|
|
|
|
||||
|
Noise level
|
<50dBA
|
|
|
|
|
||||
