The power head of the drilling rig is made of advanced manufacturing technology in the industry, which is suitable for high torque
and high Drilling operation at high speed, while ensuring compact structure, it has strong power.
- Product Details
- {{item.text}}
Quick Details
-
Weight:
-
6500 KG
-
The hole diameter:
-
60-110mm
-
Drilling depth:
-
300m
-
Drilling angle:
-
45°-90°
-
Engine power:
-
75kw
-
Mud pump model:
-
BW90-3
-
Gradeability:
-
30°
-
Walking speed:
-
2.5KW
-
Drill pipe length:
-
1.5meters
-
Lifting force:
-
10T
-
Slewing speed:
-
0-1200rpm
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Kaishan
-
Dimension(L*W*H):
-
4800*1700*2280mm
-
Weight:
-
6500 KG
-
The hole diameter:
-
60-110mm
-
Drilling depth:
-
300m
-
Drilling angle:
-
45°-90°
-
Engine power:
-
75kw
-
Mud pump model:
-
BW90-3
-
Gradeability:
-
30°
-
Walking speed:
-
2.5KW
-
Drill pipe length:
-
1.5meters
-
Lifting force:
-
10T
-
Slewing speed:
-
0-1200rpm
Products Description

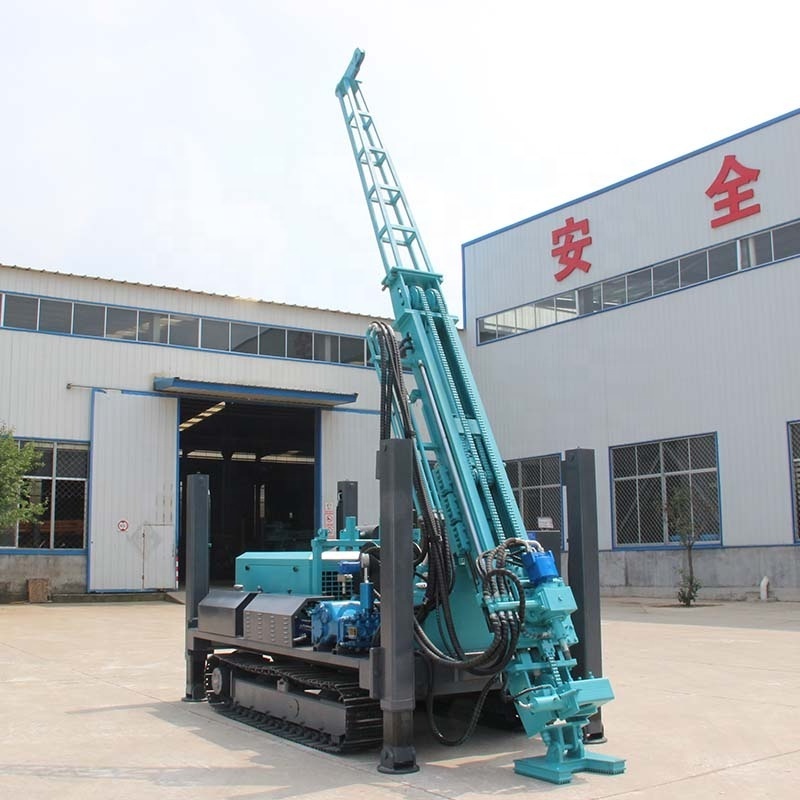

Fully hydraulic rope core drilling rigs, divided into 300, 400, 500, and 600, with complete models and high efficiency, adopt the latest technology, and can be customized according to customer needs to adapt to various working environments. The hydraulic fixture system makes it easy to complete the drilling task with a drilling angle of 45°-90°. The machine comes with a mud dyeing pump to make the work easier and save user costs; the drilling rig is equipped with a high-performance hydraulic oil pump to make the machine neat, more flexible and more stable; the overall steel structure is thickened with steel plates to increase the stability of the machine and make it more durable. The operating system is easy to learn and easy to operate.
Product Parameters
|
Model
|
FD300
|
FD400
|
FD500
|
FD600
|
|
The weight(T)
|
6.5
|
6.8
|
7
|
7.5
|
|
The hole diameter(mm)
|
60-110
|
60-110
|
60-110
|
60-110
|
|
Drilling depth（m）
|
300
|
400
|
500
|
600
|
|
Drilling angle（°）
|
45°-90°
|
45°-90°
|
45°-90°
|
45°-90°
|
|
Engine power（kw）
|
75
|
85
|
96
|
118
|
|
Mud pump model
|
BW90-3
|
BW90-3
|
BW90-3
|
BW90-3
|
|
Gradeability（°）
|
30
|
30
|
30
|
30
|
|
Walking speed（kw）
|
2.5
|
2.5
|
2.5
|
2.5
|
|
Drill pipe length(m)
|
1.5
|
1.5
|
1.5
|
1.5
|
|
Lifting force(T)
|
10
|
10
|
10
|
12
|
|
Slewing speed（rpm）
|
0-1200
|
0-1200
|
0-1200
|
0-1200
|
|
Overall dimension(mm)
|
4800*1700*2280
|
4800*1800*2280
|
5300*2000*2300
|
5500*2200*2300
|
Products Details
Hydraulic power head
Centralized console
Compact and Simple Operating Control Panel
High quality mud pump
Drilling rig mud treatment system, using customized high-pressure mud pump, weight Light, small pulse, can handle high solid phase mud and circulating mud.
Tracked Chassis
Crawler travel device Easy to move Suitable for various terrain
