Quick Details
-
Horsepower:
-
< 150hp
-
Cargo Tank Type:
-
dump type
-
Gross Vehicle Weight:
-
450kg
-
Drive Wheel:
-
3*2
-
After-sales Service Provided:
-
Video technical support, Online support
-
Brand Name:
-
Lianke
-
Place of Origin:
-
Henan, China
-
Engine Brand:
-
Lianke
-
Gear Box Brand:
-
Lianke
-
Forward Shift Number:
-
1
-
Size:
-
2700*900*1210mm
-
Cargo Tank Dimension:
-
1400*900*455mm
-
Model:
-
LK130
-
Front tire:
-
4.00-12 normal tire
-
Rear tire:
-
4.50-14 normal tire
-
Driving motor:
-
1500W/48V
-
Lifting motor:
-
1000W/48V
-
Batteries:
-
dry batteries or water battery
-
Rear axle type:
-
Gearbox single chain rear axle type
-
steering system:
-
handle type or steering wheel
-
Max speed:
-
20 km/h
-
Color:
-
red,yellow, green, orange
Quick Details
-
Condition:
-
New
-
Emission Standard:
-
Euro 6
-
Market Segement:
-
Construction materials transportation
-
Horsepower:
-
< 150hp
-
Cargo Tank Type:
-
dump type
-
Gross Vehicle Weight:
-
450kg
-
Drive Wheel:
-
3*2
-
After-sales Service Provided:
-
Video technical support, Online support
-
Brand Name:
-
Lianke
-
Place of Origin:
-
Henan, China
-
Engine Brand:
-
Lianke
-
Gear Box Brand:
-
Lianke
-
Forward Shift Number:
-
1
-
Size:
-
2700*900*1210mm
-
Cargo Tank Dimension:
-
1400*900*455mm
-
Model:
-
LK130
-
Front tire:
-
4.00-12 normal tire
-
Rear tire:
-
4.50-14 normal tire
-
Driving motor:
-
1500W/48V
-
Lifting motor:
-
1000W/48V
-
Batteries:
-
dry batteries or water battery
-
Rear axle type:
-
Gearbox single chain rear axle type
-
steering system:
-
handle type or steering wheel
-
Max speed:
-
20 km/h
-
Color:
-
red,yellow, green, orange
Product Description

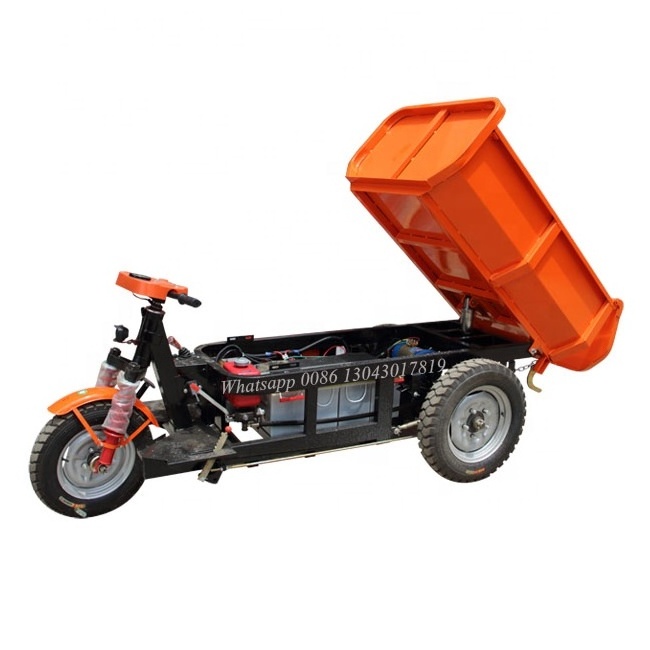

LK130 reduce labor intensity electric chinese mini truck, battery operated mini truck electric pickup
LK130 reduce labor intensity electric chinese mini truck
is our new-design economical and cheap products with relatively low configuration, but the quality is still high. Strong enough to load 1 ton.
It uses batteries as power and is used in mining, sanitation and cleaning and other area.
It is widely used in mine, concentrator,
construction site
, quarries, refractory factory, flour mill, brick factory, furnace charge factory, forest, farm and so on. It is loved and received very well in current
domestic
and oversea market.
LK130 reduce labor intensity electric chinese mini truck
s are in the below chart, the red parts belong to
electric dumper trucks.
Specification
|
Item
|
Parameter
|
|
|
|
Model
|
LK130
|
LK135
|
|
|
Condition
|
New
|
New
|
|
|
Loading capacity
|
1000kg
|
1000kg
|
|
|
Net weight
|
450kg
|
500kg
|
|
|
Dimension(L * W * H)
|
2700*900*1210mm
|
2800*1000*1250mm
(provide customization)
|
|
|
Cargo box size
|
1400*900*455mm
|
1450*900*400mm
(provide customization)
|
|
|
Front tire
|
4.00-12 (normal tire)
|
4.00-12 (Huanyan tire)
|
|
|
Rear tire
|
4.50-14 (normal tire)
|
5.00-14 (Huanyan tire)
|
|
|
Driving motor power
|
1500W/60V
(other big motor power also can be used)
|
2000W/48V
(other big motor power also can be used)
|
|
|
Driving motor type
|
Brushed motor
(brushless motor is also available)
|
Brushed motor
(brushless motor is also available)
|
|
|
Lifting motor
|
1000W/60V
|
1000W/48V
|
|
|
Lifting motor
|
Brushed motor
|
Brushed motor
|
|
|
Batteries type and quantity
|
5 pcs of 12V45ah dry batteriies.
4 pcs of 12V80ah water batteries also can be used.
|
4 pcs of 12V80ah water batteries.
4/5pcs 12V52ah/60ah/80ah dry batteries are also can be used.
|
|
|
Rear axle type
|
Gearbox single chain rear axle type
|
Gearbox double chains rear axle type
Driving shaft type and direct-connection type also can be used.
|
|
|
Diameter of half shaft
|
External measurement size 26mm.
Inner size 30mm.
|
|
|
|
Speed
|
≤ 25km/h
|
|
|
|
Others
|
* Support changing steering wheel and Mid-mounted 2-section cylinder for free.
* Including front LED light
|
*Including front and rear LED lights, horn and revering notice voice
|
|
Specific Details
1.1 Driving motor: 1500W brushed motor
The standard configuration is 1500W brush motor, but brushless motor is also available, and other big motor power also can be used, such as 2000W, 2500W or 3000W.
1.2 Lifting motor: 1000W brushed motor
Lifting motor is only used for lifting the cargo box when dumping, so 1000W brushed motor is enough to lift heavy cargo. Even 3
ton mini dumper also use 1000W brushed lifting motor.
ton mini dumper also use 1000W brushed lifting motor.
2. control system
1) Main power switch:
Prevent short circuit and effectively protect the electrical equipment on the vehicle.
2) Charging
socket:protected by a waterproof cover
3) Controller: 1500W brushed controller, matching with the driving motor.
4) DC contactor
3.Rear axle:Gearbox single chain rear axle type
Even this model is cheap, but we still use the strong and thick heavy load half-axles on this single chain gearbox rear axle to ensure the dumper can load 1 ton.
The main body diameter of the half shaft is 30mm, since the exposed end point is tapered, so measured from the outside end, the narrowest place's diameter is directly at least 26mm.
Please note:
Some suppliers will use thin half shaft which diameter is only 16mm inside the rear axle of mini dumper, but if so, that mini dumper can't load 1 ton, because that thin half shaft to weak to bear the weight of 1 ton cargo.
Maybe that mini dumper is cheaper, but no strong enough to load 1 ton and can't be suitable to be used on mining site. Otherwise, the gears in the gearbox will be broken.
* Please check the
Compare photos.
The left side 1 is a 26mm(30mm) thick half axle rear axle, and the right side 2 is a 16mm thin half axle rear axle.
4.Wheel
Front wheel: 4.00-12
Rear wheel: 4.50-12
5. Battery
It can use 5 pieces of 12V45ah dry batteries, and also can use 4 pieces of 12V80ah water batteries.
6. Cargo box--Shot blasting, plastic spraying and baking paint process
Not only the cargo boxes, but also the cargo plates, vehicle frames and control box are all treated with advanced shot blasting, plastic spraying and paint process. After this treatment, the vehicles will get good anti-rust and anti-scratch effect, strong wear resistance and very beautiful. While traditional ordinary sanding +normal spray painting can not achieve above effects.
7.Lifting system.
1 is lifting motor power switch:open it or keep it open before lifting.
2 is lifting rod: pull it up when lifting, press it down after lifting.
3 is oil pump
4 is lifting motor
5 is hydraulic oil tank
6 is
hydraulic
oil hose
7 is
hydraulic
oil cylinder:
Single cylinder rear jacking hydraulic cylinder
8.Driving platform
1 is handle bar and hand accelerator.
2 is forward and reversing rod
3 is LED front light
4 is brake pedal
5 is handbrake
Packing & Delivery
LCL: wooden case and iron frame
FCL: disassembly 8 sets in one 20ft container; disassembly 20-24 sets in one 40HC container
Related Product
LK135 load 1 ton
Standard configuration 2000W brush motor, 48V/60V. 1000mm width.
800mm width LK135 load 1 ton
800mm in width, 2000W brushless motor, 60V.
LK270 load 2 ton mini dumper
High configuration: 4000W brushless motor, 72V, 60km/h.
