Quick Details
-
Network:
-
OTHER
-
Product name:
-
Alarm contact
-
Color:
-
Silver
-
Function:
-
Anti-Theft
-
Type:
-
Magnetic switch
-
Application:
-
Outdoor
-
Certificate:
-
CE Rohs
-
Material:
-
Aluminum Alloy
Quick Details
-
Place of Origin:
-
Israel
-
Brand Name:
-
Av-Gad
-
Model Number:
-
AV-8103
-
Network:
-
OTHER
-
Product name:
-
Alarm contact
-
Color:
-
Silver
-
Function:
-
Anti-Theft
-
Type:
-
Magnetic switch
-
Application:
-
Outdoor
-
Certificate:
-
CE Rohs
-
Material:
-
Aluminum Alloy

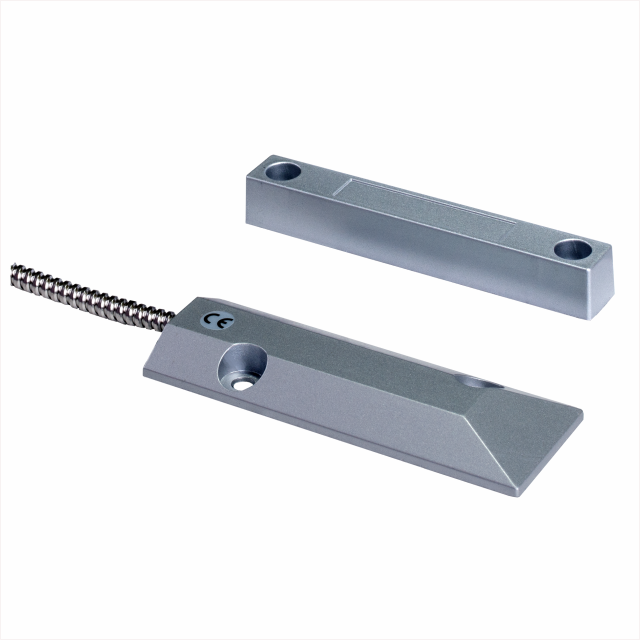

Outdoor magnetic switch AV8103
Outdoor magnetic switch without bracket
Magnetic switch for outdoor industrial applications
With form A (one contact) N.O.
Outdoor magnetic proximity switch
Magnetic contacts switch with wires terminal
Metal enclosure magnetic contact
Magnetic switch for outdoor security applications
Heavy Duty Magnetic Overhead Door Contact
Used for protecting metal doors and shatters
Magnetic side made of Alnico 5 magnet
Operation Gap Distance: 51 mm (2”)
Installation wires are protected in stainless steel armored flexible cable
Mounted with surface (without bracket)
Outdoor magnetic switch 105 X 36 X 10 mm
Flexible Mounting magnetic switch
Main Features
Heavy duty magnetic contact switch
Outdoor magnetic switch
Fits industrial applications
Simple wire connection
Attached with screws
Large gap for heavy doors and windows
Easy and Fast installation
Technical
Magnetic switch contacts: Wires terminal 370 m"m (14.5”) long
Magnetic Sensor: Reed switch
Type: Surface Mount contact
Operation Gap Distance: 45-55 mm (2”)
Contacts: Form A, N.O. type
Magnet: Alnico 5
Colors: Gray as standard
Enclosure: Metal ZN Alloy
Maximum Breakdown Voltage: 100V
Maximum Switching Current: 500 mA
Outdoor rating: IP-44
Operating Temperature: -25°C to +80°C (-13°F to +176°F)
Switch Dimensions: 105 X 36 X 10 mm (4 X 1½ X 3/8")
Magnet Dimensions: 105 x 16 x 17 mm
