Quick Details
-
Drilling Speed:
-
450-2500; 530-3100RPM
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
SUMORE
-
Model Number:
-
SP5216VS/80
-
Voltage:
-
Customized
-
Dimension(L*W*H):
-
760*500*280mm
-
Power (kW):
-
0.55
-
Weight (KG):
-
35 KG
-
Marketing Type:
-
Hot Product 2023
-
Drill capacity:
-
16mm
-
Column diameter:
-
65mm
-
Swing:
-
305mm
-
Spindle travel:
-
80mm
-
Spindle taper:
-
B16
-
Spindle speed range(50Hz):
-
450-2500 rpm
-
Spindle speed range(60Hz):
-
530-3100 rpm
-
Table size:
-
240x245mm
-
Base Size:
-
395x250mm
-
Overall height:
-
930mm
Quick Details
-
type:
-
Variable Speed Drill Press
-
Max. Drilling Dia. (mm):
-
16 mm
-
Range of Spindle Speed(r.p.m):
-
530 - 3100 r.p.m
-
Drilling Speed:
-
450-2500; 530-3100RPM
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
SUMORE
-
Model Number:
-
SP5216VS/80
-
Voltage:
-
Customized
-
Dimension(L*W*H):
-
760*500*280mm
-
Power (kW):
-
0.55
-
Weight (KG):
-
35 KG
-
Marketing Type:
-
Hot Product 2023
-
Drill capacity:
-
16mm
-
Column diameter:
-
65mm
-
Swing:
-
305mm
-
Spindle travel:
-
80mm
-
Spindle taper:
-
B16
-
Spindle speed range(50Hz):
-
450-2500 rpm
-
Spindle speed range(60Hz):
-
530-3100 rpm
-
Table size:
-
240x245mm
-
Base Size:
-
395x250mm
-
Overall height:
-
930mm
Products Description
Factory HOT !!! drill press zj4116
variable speed
bench drill press
SP5216VS/80
Quick Detail:
Drilling capacity: 16mm
Motor power: 550W
Table size: 240X245mm
Height: 930mm
Drilling capacity: 16mm
Motor power: 550W
Table size: 240X245mm
Height: 930mm
Specifications
|
Model
|
SP5216VS80
|
|
Motor
|
550w
|
|
Column diameter
|
65mm
|
|
Swing
|
305mm
|
|
Max.drilling capacity
|
16mm
|
|
Chuck capacity
|
3-16mm
|
|
Taper
|
JT3/B16
|
|
Spindle travel
|
80mm
|
|
No. of speed
|
Variable
|
|
Speed range 50Hz
|
450-2500rpm
|
|
Speed range 60Hz
|
530-3100rpm
|
|
Table size
|
240*245mm
|
|
Base size
|
395*250mm
|
|
Overall height
|
930mm
|
|
Measurement-Carton
|
750*500*280mm
|
|
N.W/G.W
|
35/33kg
|
Product detail pictures

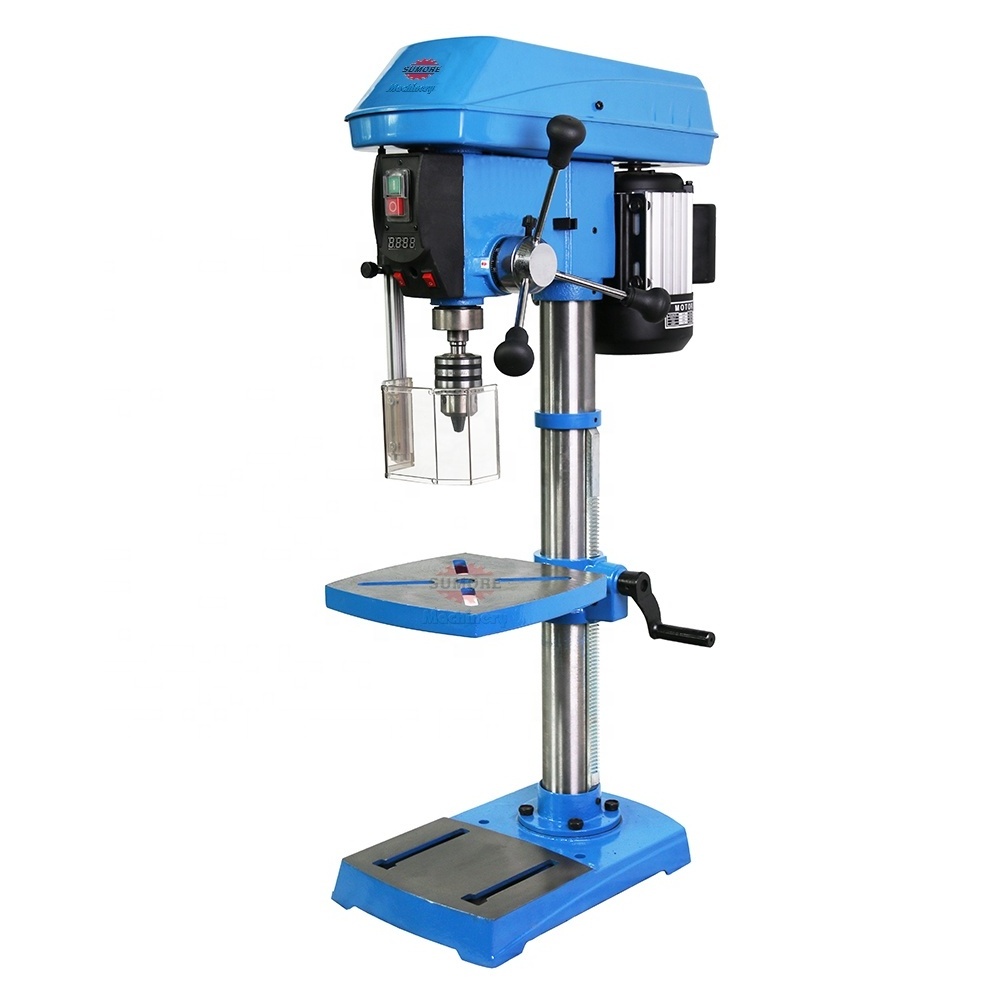

SP5216VS drilling machine belongs to variable speed type which is quite convenient for the users’ real work. It is newly designed with CE approved high precision and quite popular in the market. Main features as below:
1. Excellent performance
2. Extend table
3. Powerful motor up to 3000rpm
4. CE approved chuck guard high quality
5. Pretty appearance
6. OEM accepted
1. Excellent performance
2. Extend table
3. Powerful motor up to 3000rpm
4. CE approved chuck guard high quality
5. Pretty appearance
6. OEM accepted
Packaging & Shipping
Full drill press
