Quick Details
-
Model Number:
-
PMG
-
Certification:
-
CE
-
Output Voltage:
-
220V 380V
-
rotor diameter:
-
Customized
-
Generator type:
-
AC
-
Protection grade:
-
IP54 IP55
-
Phase:
-
3 phase
-
Rated voltage:
-
220V
-
Brand:
-
ENN
-
Insulation Class:
-
H
-
Bearing Brand:
-
SKF
-
Cooling Method:
-
Natural Cooled
Quick Details
-
Rated Power:
-
12-3000kw, 12kw-3000kw
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ENN
-
Model Number:
-
PMG
-
Certification:
-
CE
-
Output Voltage:
-
220V 380V
-
rotor diameter:
-
Customized
-
Generator type:
-
AC
-
Protection grade:
-
IP54 IP55
-
Phase:
-
3 phase
-
Rated voltage:
-
220V
-
Brand:
-
ENN
-
Insulation Class:
-
H
-
Bearing Brand:
-
SKF
-
Cooling Method:
-
Natural Cooled
Product Drawing
Product Description
|
Rated power
|
12kW-3000kw
|
|
Rated speed
|
300rpm
|
|
Rated voltage
|
220VAC
|
|
Frequency
|
60Hz
|
|
Numbers of Poles
|
24
|
|
Insulation Class:
|
H
|
|
Protection Class
|
IP54 IP55
|
|
Efficiency
|
93%
|
|
Cooling Method
|
Natural cooled
|
|
Ambient temperature
|
-25~45℃
|
|
Recommended altitude
|
≤ 1000m
|
|
Bearings
|
SKF Ball Bearings
|
|
Winding material
|
100% Copper
|
|
Winding temperature level
|
180℃
|
|
Stator Impregnation type
|
Vacuum Pressure Impregnation (VPI)
|
|
Normal working temperature
|
90℃
|
|
Max working temperature
|
130℃
|
|
Installation
|
Horizontal
|

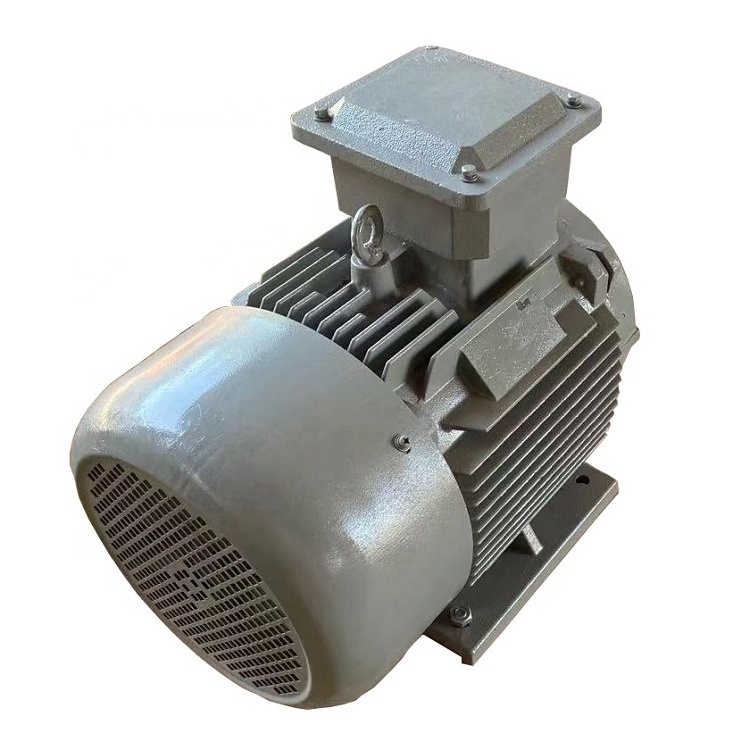

Details Images
Main Features
① The generator has many poles,which improve the frequency and efficiency,saving the cost of rectifiers and inverters.
② Finite Element Analysis is used when designing the generator,compact structure. Low startup torque,solves the problem of small wind startup,improving the wind energy utilization.0
③ Leave out the gear increaser,improve the reliability and efficiency of the generator,lower the amount of maintenance.
④ H class insulation,vacuum pressure impregnation.
⑤ Have many structures such as vertical axis,horizontal axis,internal rotor,external rotor,plate type.
⑥ Strong rotors ,the generator could achieve high speed.
⑦ Small size ,light weight,high energy density,suitable for special situations.
⑧ Run efficiency throughout the whole speed range,high efficient.
⑨ Use imported high-speed oil-contained bearings,maintance free,high reliablity.
⑩ The parameters like voltage,speed,power can be customized.The shape can be changed.Spline shaft,biaxial extension,flange can be used.
Factory Show
FAQ
1. Q: How does your permanent magnet generator work?
A: Our generator needs to be driven by other energy, like wind power, water power, belt, etc, then it can generate electric power.
A: Our generator needs to be driven by other energy, like wind power, water power, belt, etc, then it can generate electric power.
2. Q: What is the power of your generator?
A: We can manufacture from 12kw to 3000kw.
A: We can manufacture from 12kw to 3000kw.
3. Q: Can you manufacture customized product?
A: Yes, we can.Please tell your detailed request (power, rpm, voltage, size, color) to our sales, we will make the generator according to your request.
4. Q: Can your company provide OEM service?
A: Yes, we can.
