- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
SKF
-
Model Number:
-
VPKM-4-2S-2T-05T
-
Place of Origin:
-
Shanghai, China
-
Product name:
-

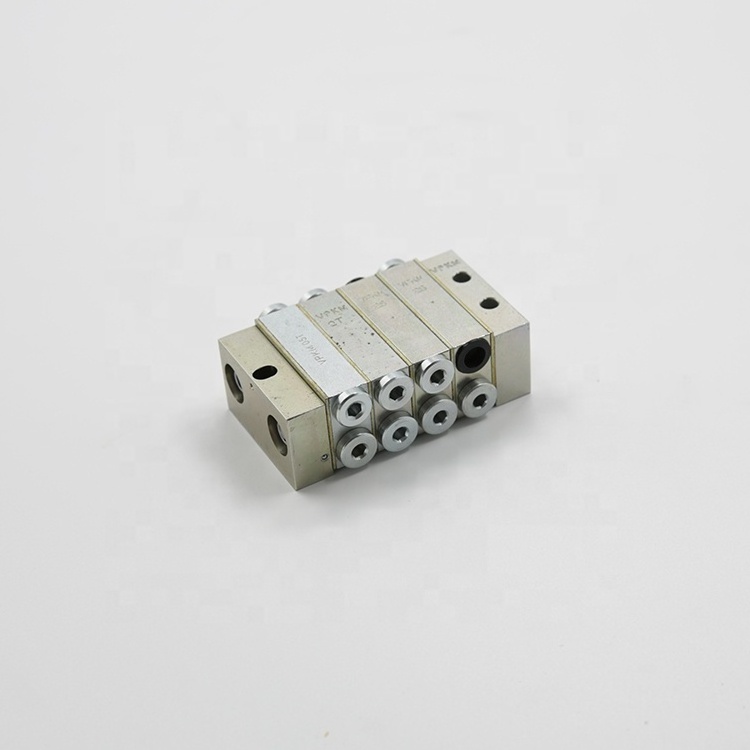

Progressive sectional feeder
-
Usage:
-
Oil
-
Fuel:
-
oil
-
Power:
-
Handle
Quick Details
-
Application:
-
Automotive Industry, Industrial Boilers, Industrial Utilities, Machining
-
Warranty:
-
1 year
-
Customized support:
-
NO
-
Brand Name:
-
SKF
-
Model Number:
-
VPKM-4-2S-2T-05T
-
Place of Origin:
-
Shanghai, China
-
Product name:
-
Progressive sectional feeder
-
Usage:
-
Oil
-
Fuel:
-
oil
-
Power:
-
Handle
Note:
Please communicate the details with us before placing an order.The picture only shows a part of the series of products. For
specific requirements, please provide key information such as technical parameters, nameplate pictures and so on
| Technical data | |
| Style | hydraulically controlled |
| Mounting position | discretionary |
| Screw connection | I/O: VPKM = M10x1 VPKG = G1/8" |
| Ambient temperature range | -25 to + 90 °C |
| Feeder sections | see table Occupied outlets with internal connections . 1 to 19 |
| Material | |
| Inlet plate, separator plate and end plate . Steel, tinned/nitrilebutadiene rubber | |
| Sections (piston plates) |
Steel, tinned
Hydraulic |
| Operating pressure max. | Oil 200 bar, grease 300 bar |
| Volume per outlet and cycle | 0.05-0.6cm3/cycle |
| Lubricant | Mineral oils, greases based on mineral oil,environmentally friendly and synthetic oils and greases |
| Operating viscosity | > 12 mm2/s |
| Worked penetration | ≥ 265 x 0.1 mm (up to NLGI grade 2) |
Please contact customer service to confirm whether it can arrive or not and the detailed freight before placing an order
Shanghai getan Lubrication Tech. Co., Ltd, established in2008,We are located in Shanghai Jinshan District Industrial Zone with convenient transportation access and beautiful environment.
Our company is SKF group's authorized distributor in the field of industrial lubrication, integrating the trade of imported lubrication parts, lubrication system design, technical support and after-sales service. Professional to provide customers with a variety of SKF Lincoln lubrication system and accessories and technical application services. We can also provide customized service and automated lubrication system.
Lubrication system consists of lubrication tools, grease gun, nozzle, such as waste oil collection device, various viscosity of lubricating oil, grease pump, precision plunger pump, gear pump, vane pump, muilt-linegear pump, high pressure pump, etc., large circulation lubrication system, oil mist lubrication system , and various kinds of measuring distributor, flow meter, pressure sensor, liquid level control sensors and different specifications of the various types of joint fittings, can satisfy the lubrication requirements of almost all machinery and equipment and conveyor lubricant flow.
Products are widely used in automobile chassis, engineering machinery, cement equipment, rail vehicles, chain transport, machine cutting, media filtration, cooling equipment, printing machinery, shield equipment, port machinery, metallurgical machinery, lifting machinery, papermaking machinery, glass machinery, food machinery and other industrial equipment.
Our diverse products, rich experience, intimate service, good product quality can meet your precise requirements, for you to save costs, improve efficiency, create a safer and healthier working environment, achieve sustainable development.
