Quick Details
-
Place of Origin:
-
Shandong, China
-
Machine Weight:
-
360 kg
-
Marketing Type:
-
Other
-
Model:
-
YF0302
-
Product name:
-
mini dumper
-
Load weight:
-
500kg
-
Track width:
-
180
-
Dimension:
-
1000*700*450mm
-
Starting device:
-
Reversing starter
-
Transmission:
-
3F+1R
-
Keyword:
-
Mini Track Dumper
-
Brand:
-
INFRONT
-
Color:
-
Customer's Requiement
Quick Details
-
Engine Brand:
-
LONCIN
-
Power:
-
9HP
-
Brand Name:
-
INFRONT
-
Place of Origin:
-
Shandong, China
-
Machine Weight:
-
360 kg
-
Marketing Type:
-
Other
-
Model:
-
YF0302
-
Product name:
-
mini dumper
-
Load weight:
-
500kg
-
Track width:
-
180
-
Dimension:
-
1000*700*450mm
-
Starting device:
-
Reversing starter
-
Transmission:
-
3F+1R
-
Keyword:
-
Mini Track Dumper
-
Brand:
-
INFRONT
-
Color:
-
Customer's Requiement

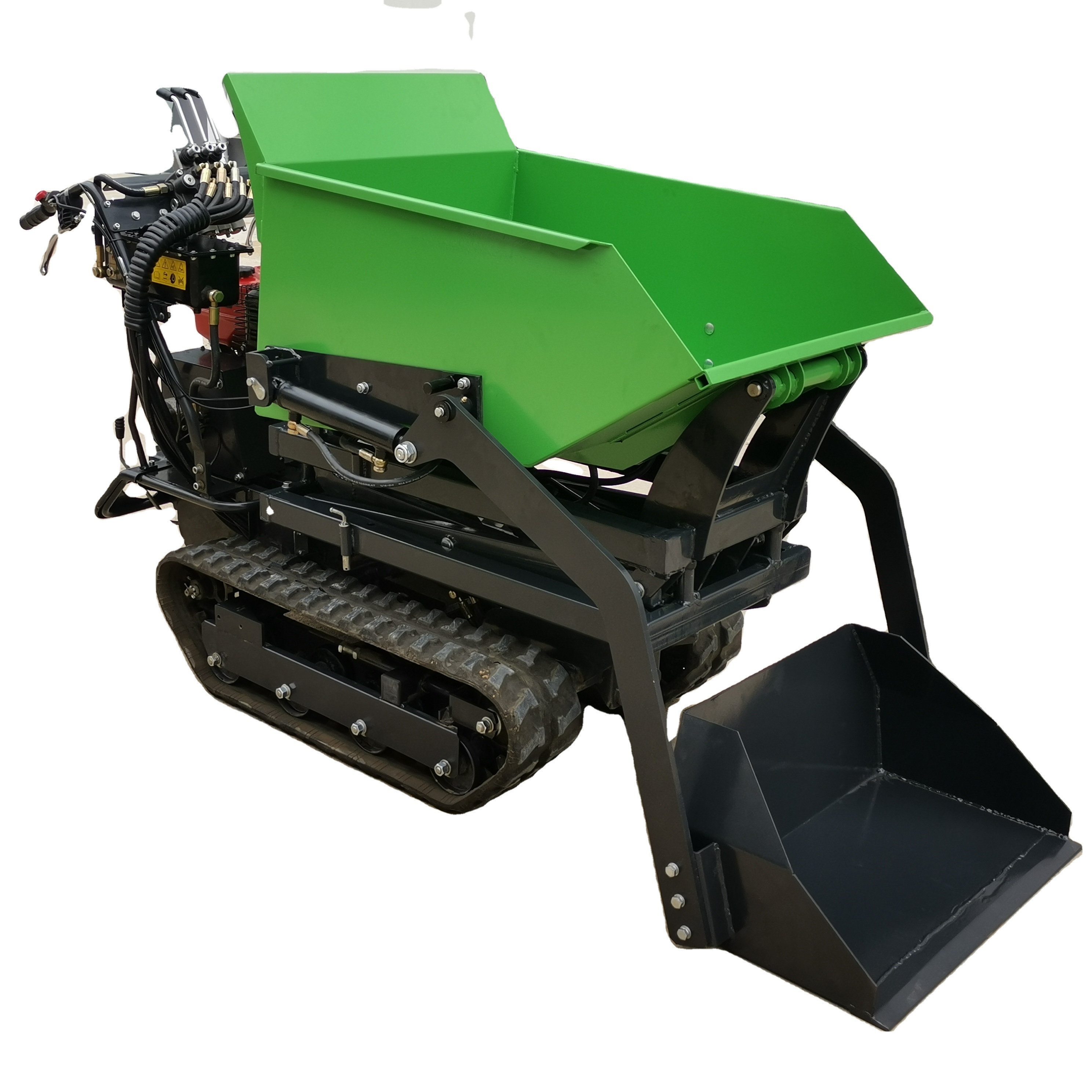

INFRONT Diesel Dumper Crawler Wheelbarrow Mini Dumper For Sale
YF0302CS 500kg Petrol High Tip Mini Dumper with All Hydraulic Tip. The YF0302CS mini dumper is based on the original 0302C configuration . It offers the same reliable, easy starting Loncin engine and simple drive system but with a dumper style tipping butt that is more suited for shifting sand, soils etc. Tipping is fully mechanized by the hydraulic ram. The machine is still only 700mm wide and great to get in those hard to reach areas.
|
Engine |
1-cylinder 4-stroke OHV LONCIN engine |
|
Displacement |
270 cc |
|
power |
9HP |
|
Operating speed |
3,000 rpm |
|
Starting device |
Reversing starter |
|
drive |
Gear transmission |
|
steering |
Steering brake |
|
Tilting container (LxWxH) |
1000 x 700x 450 mm |
|
own weight |
280kg |
|
Ground clearance |
105 mm |
|
Load max. |
500 kg |
|
Capacity |
315 |
|
Tilting device |
Hydraulic, tiltable forwards |
|
hydraulic pump |
12l / min (at 3,000 rpm) |
|
Working pressure max. |
200 bar |
|
transmission |
3 forward / 1 reverse gears |
|
Dimensions (LxWxH) |
1750 x 750 x 1200 mm |
Miss. Leah Zhang
Mobile/Whats up: +0086 183 6981 5899
WeChat: 86 183 6981 5899
Email:sales08@ chinaift.com
Contact me if you are interested, hope we could be your long-term and quality supplier,thank you !
