Quick Details
-
Brand Name:
-
LISHIXIN
-
Weight (KG):
-
18000 kg
-
Chassis brand:
-
Howo ,Shacman,Dongfeng,Isuzu
-
Product name:
-
Vacuum Sewage Suction Truck
-
Engine:
-
Weichai
-
After Warranty Service:
-
Spare parts
-
After-sales Service Provided:
-
Online support
-
product name:
-
Isuzu 13 m³ compression garbage truck
Quick Details
-
Marketing Type:
-
New Product 2021
-
Size:
-
8900*2500*3300mm(no feeding device)
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
LISHIXIN
-
Weight (KG):
-
18000 kg
-
Chassis brand:
-
Howo ,Shacman,Dongfeng,Isuzu
-
Product name:
-
Vacuum Sewage Suction Truck
-
Engine:
-
Weichai
-
After Warranty Service:
-
Spare parts
-
After-sales Service Provided:
-
Online support
-
product name:
-
Isuzu 13 m³ compression garbage truck

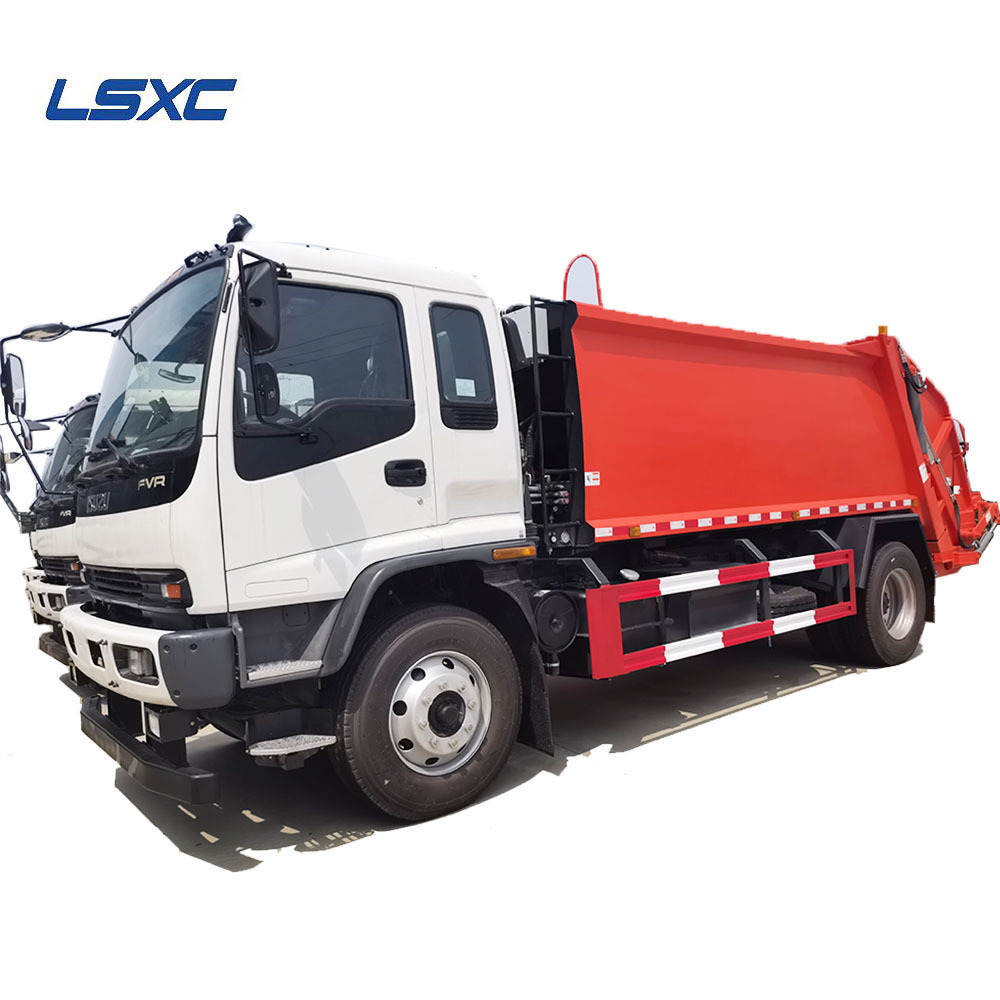

13 Cubic meter garbage compactor truck waste bin cleaning truck garbage collector truck
| product Overview | |||
| product name | Isuzu 13 m³ compression garbage truck | model | LSXC5180ZYS5 |
| cab | flat top | Engine horsepower (PS) | 240PS |
| Dimensions (mm) | 8500×2500×3400 | driving style | Steering Wheel / Left Drive |
| Weight (kg) | 10000 | Loading mass(kg) | 10000 |
| Production cycle | 1 set (60 days) | warranty period | one year |
| Product parameters (main configuration) | |||
| Item Item | Specification Standard Specification | ||
| cab | Isuzu FVR cab reversible with air conditioner | ||
| front bridge | 6.3 tons | ||
| rear bridge | 13 tons | ||
| gearbox | Isuzu MLD six-speed transmission | ||
| vehicle frame | Straight through reinforced girder | ||
| tire | 295/80R22.5 type tubeless tire 6 pieces | ||
| Power take-off interface | have | ||
| PTO | have | ||
| Front/rear overhang (mm) | Front: 1335, Rear: 2665 | ||
| departure angle | Front: 20, Rear: 17 | ||
| suspension | Leaf spring 9/7+7 | ||
| leaf spring | Front 9, back 7+7 | ||
| Number of axles | 2 | ||
| Wheelbase (mm) | 4500 | ||
| Number of tires | 6 | ||
| Wheel base (mm) | 1960/1860 | ||
| drive type | 4*2 | ||
| engine | 6HK1-TCL Isuzu 240 horsepower | ||
| Emission Standards | Euro five | ||
| suspension | leaf spring | ||
| driving style | steering wheel, left-hand drive | ||
| brake | Drum | ||
| Braking System | air brake | ||
| spare tire rack | have | ||
| light | have | ||
| Voltage | 24V | ||
| toolbox | have | ||
| color | According to user requirements | ||
| Upper part configuration | |||
| Item Item | Specification Standard Specification | ||
| Waste box material and thickness | Q345 low alloy anti-corrosion and wear-resistant plate (manganese steel) side 5mm, bottom 5mm, side plate 5mm | ||
| Box shape | Curved box | ||
| emergency stop button | have | ||
| safety control system | have | ||
| sewage tank | have | ||
| Tail electronic control device | have | ||
| Remarks: Oil cylinders of domestic famous brands, high-density and high-pressure oil pipes, multi-way valves and oil pumps are used, and the small landing bucket is turned over. The compressed garbage bin is a conjoined type, flipped to feed, with a compressed push plate and a locking door at the rear. | |||
Q1: Are you original manufacturer?
A: Yes, we are professional manufacturer of special trucks
Q2: What is your terms of payment?
A: 30% by T/T as deposit, and 70% by T/T before delivery. Also we accept 100% confirmed irrevocable sight L/C. We will show you the photos and videos of the products and packages before you pay the balance.
Q3: Could your company totally customize products for me?
A: Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
Q4: Do you provide certification that we need?
A: Yes, we can provide various certifications, such as CCC, ADR, ASME, BV, DOT, SASO, SGS, and so on. We will provide directly or apply for new certificate according to your needs.
Q5: How about the delivery time?
A: It depends on the product type and quantity you need,usually the production cycle of one unit truck is 15-25 days.
Q6: What is your terms of packing?
A: Truck will be nude, waxed or packed in waterproof cloth according to the shipping way. Small truck can be shipped in container. Big trucks will be shipped by RORO ship, bulk ship or Flat rack container.
Q7: Do you test all your goods before delivery?
A: Yes,we will 100% test before delivery, and ensure zero defect products to all our customers.
