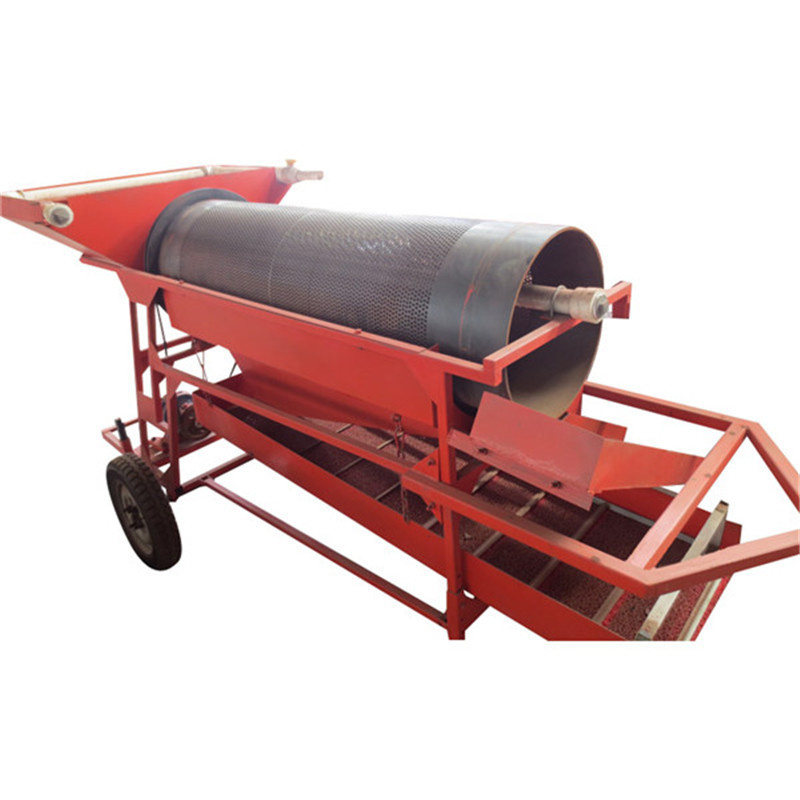

The Trommel Screen provide a simple, efficient ,economical solution.This method of screening helps to reduce operating and investment cost and to ncrease product quality, while allowing rapid and large volume processing.
|
SPECIFICATIONS FOR Trommel Screen
|
|
|
|
|
||||
|
Model
|
|
KDTJ-50
|
KDTJ-100
|
KDTJ-200
|
||||
|
Performance
|
Dimension(L*W*H)(mm)
|
7000*2000*3000
|
8300*2400*4700
|
9800*3000*5175
|
||||
|
|
Processing capacity (t/h)
|
50-100
|
100-150
|
200-300
|
||||
|
Main Power
|
Power(kw)
|
24
|
50
|
75
|
||||
|
Feeder hopper
|
Size (L*W*H)(mm)
|
2000*2200
|
3000*2200
|
3800*3000
|
||||
|
Gold chutes with carpet
|
Size (W*L)
|
1000*2000
|
1000*6000
|
1000*6000
|
||||
|
|
Quantity
|
2
|
2
|
3
|
||||
|
Water system
|
Pump power(kw)
|
7.5
|
30
|
45
|
||||
|
Optional equipment
|
Wheel, Grizzly, conveyor, shaking chute , centrifugal machine etc.
|
|
|
|
||||
1) Patented unique design allows the trommel screen to have higher capacity, longer drum life and no blockage.
2) Easy to move, it can be dragged by wheel loader or excavators.
3) Gold Recovery rate can be more than 90%
4) Low water and electricity requirements
5) Customized by your detailed requirement.
1.The screen uses a special high-manganese steel wire, this material is widely used in the oil industry as a fuel rod, extending the life of the use and replacement, usually 2-3 months to replace the material once, our sieve at least 6 months to replace.
2.Two-layer sieve, good grading effect, high wear resistance, not easy to deformation, to extend the service life of equipment to avoid direct or indirect economic losses due to unreliable quality
1. Use generator set as power, generator set with trailer, easy to move, optional famous brand, or customer-specified brand
2. According to the specific circumstances of the replacement of diesel generating units, in the light of energy-saving purposes, to help customers achieve energy-saving low-cost, saving production costs.
In line with European standards of the distribution system in line with European standards, greatly increasing the safety of equipment operation, visual operation more convenient
It can be used in different mines in complicated field working environment, such as clay mine, potholes mine, jungle mine, sand area, river ford etc.
High integration with washing, separating and classifying which greatly liberates labor force, makes 1-2 person operation possible and saves your cost.
Fixed-type and wheel-type are available according to clients’ requirements.
1.Wheel-type one has steering system which makes the equipment can be moved easily.
2.Fixed-type one is with sled chassis and can be used in beach area for easy moving in case wheels being trapped.
Qingzhou Keda ore machinery Co.,LTD. is a modern and formal ore machine manufacturer,which is professional at producing all kinds of mining equipment with ISO9001:2008. The gold wash plant has obtained PATENT both in utility and design. Our company is established in 2002 primitively, covers an area of more about 20,000 square meters and equipped with modern type workshops and office .
Currently there are 120 staffs, including 2 senior engineers, 10 engineers, 15 technicians and 60 technical workers. Our company are more normative in management, our engineers are more professional in design and manufacture, our service are more comprehensive and thoughtful, and our price are more competitive with the best quality.
* Equipment of right model is selected for customers.
* Customized products and processing flow sheet can be designed and developed to meet customer's special needs,.
* Engineer could be sent to observe customer's working site to come up with an optimized solution accordingly.
* Installation, adjustment, and testing of equipment On-Site is available.
* Train of technicians and workers at site is promised.
* Service engineers will not leave until ensuring the whole line running well after the installation & adjustment is finished.
* If any failure or question about the machines or the processing line, contact us and we are available at any time.
|
Packaging
|
|
|
|
Size
|
Several high containers
|
|
|
Weight
|
1-20 T
|
|
|
Packaging Details
|
The normal package is high containers. If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
|
