Quick Details
-
Material of Armature:
-
Brass and Magenetic Iron
-
material of button:
-
plastic or brass
-
Voltage:
-
AC and DC
-
botton color:
-
orange , blue
-
Connect type:
-
Male thread
-
item name 1:
-
iron core
-
item name 2:
-
iron powder core
-
item name 3:
-
plunger assembly
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
NMPC plunger assembly
-
Model:
-
210 assembly iron core
-
Material of Armature:
-
Brass and Magenetic Iron
-
material of button:
-
plastic or brass
-
Voltage:
-
AC and DC
-
botton color:
-
orange , blue
-
Connect type:
-
Male thread
-
item name 1:
-
iron core
-
item name 2:
-
iron powder core
-
item name 3:
-
plunger assembly
High Quality Solenoid Valve Tube Armature Plunger Assembly Solenoid valve Iron Brass Core
1.Classical design,durable ai control design
2.Engery saving and environmental protection with big low rate,safety and precision
3.Can work at the low pressure,smartness for on and off,good seal performance
4.Single action and double action types for your selection
5.Widely used in the food,machin,industry,abstersion,lanification,printing and other area
We Mainly do solenoid valve ,pneumatic valve, air treatment units, air Cylinder, quick connection fittins and PU tube . 4V. 3V.2V.2p .solenoid valve ,and 4A.3A Pneumatic valve sell so hot in Asia, Europe,and Middle East.
Our products passed ISO9001:2008 and CE Quality Certification. Brand name is NMPC.
We have so many distributors and agent in mainland of China.
So popular in pneumatic and Hydraulic market. Our accessories taked from the same supplier as Airtac . O seal ring is Taiwan Xiehe,valve made by numerically controlled production center (CNC)
| Item No. | 210 assembly iron core |
| Tube Diameter | 8mm~13mm |
| Tube Material | Brass |
| Plunger Material | Magnetic Iron |
| O-Ring Material | NBR, Viton, EPDM, all can be customized |
| Seal Material | NBR, Viton, EPDM, all can be customized |
| Spring Material | SUS304 |
| Type | 2/2, 3/2 Way, with exhausting hole on the top |
| Type | Normally Closed |
| Connection Type | Male Thread |
| Voltage | AC/DC |
| Matching Coil | Hole diameter 8mm, coil height maximum 30mm |
| Welding Type | No welding, made of brass single piece |

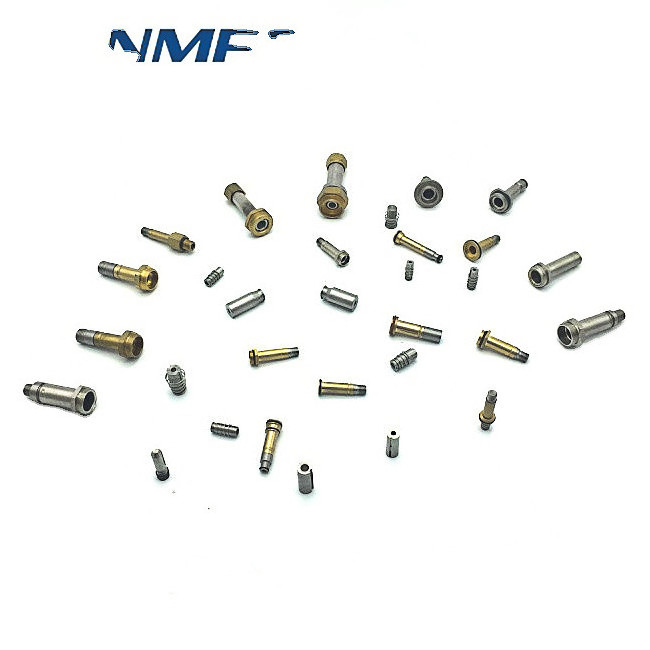

Images for plunger assembly :
plunger assembly Can be Customized :
