12-piece FTTH fiber optic tool includes FS-6C cutter 1mW 5KM red light pen Fiber Optic Power Meter

12-piece FTTH fiber optic tool includes FS-6C cutter 1mW 5KM red light pen Fiber Optic Power Meter

FOB Reference Price: Get Latest Price

≥1 Pieces

US $42

≥10 Pieces

US $39

≥20 Pieces

US $38

≥50 Pieces

US $37

Free Inquiry

Customized Request

Explore More Products

FTTH Epon Onu Fiber Optic 1Ge Wireless Gpon ONU Router WiFi Onu

$ 16 - $ 20

Low Price Fiber Optic Ftth BOSA 1ge Ont 1Ge Epon Onu WIFI Onu Xpon

$ 16 - $ 20

FTTH Optic Fiber Network Unit RX8101W Mini Onu Smart Wifi Router 1GE+WiFi Gpon Epon Xpon Onu

$ 16 - $ 20

Made In China Fiber Optic Small Size Xpon Gepon Wifi Function ONU Gpon Onu Wifi

$ 16 - $ 20

Product Details

{{item.text}}

Quick Details

Brand Name:: OTHER

Product name:: Fiber Optic Tool

Application:: FTTH FTTB FTTX Network

Weight:: 2kg

Name:: fiber FTTH tool kit

Packing:: 1 Pcs /bag

Quick Details

Type:: Optical Fibers

Model Number:: fiber FTTH tool kit

Place of Origin:: Guangdong, China

Brand Name:: OTHER

Product name:: Fiber Optic Tool

Application:: FTTH FTTB FTTX Network

Weight:: 2kg

Name:: fiber FTTH tool kit

Packing:: 1 Pcs /bag

Product Description

Product Name	12-piece fiber optic kit
Number of pieces	12-piece
Components	1km red light pen, FC-6S cutter, alcohol bottle, optical power meter, wire stripper, Miller pliers, fixed length device, inner hexagon, lanyard, battery, tool kit, etc.

Details Images

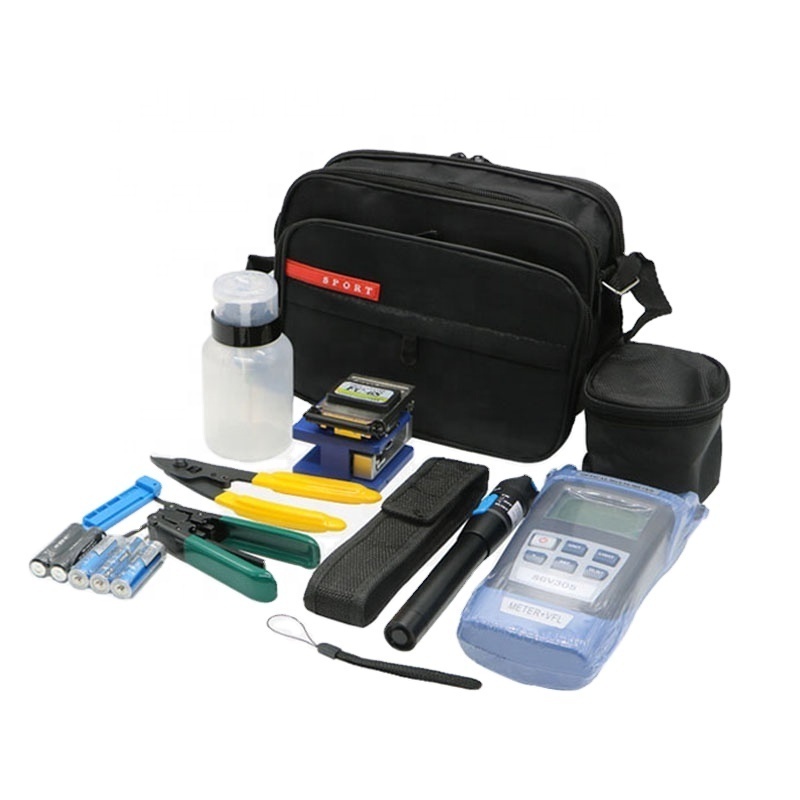

12 piece kit

1km red light pen,

FC-6S cutter,

alcohol bottle,

optical power meter,

wire stripper,

Miller pliers,

fixed length device,

inner hexagon,

lanyard,

battery,

tool kit,

etc.

Product Usage

Optical power meter Support 7 kinds of wavelength test, timing shutdown with backlight, standby for about 48 hours Power measurement range: -70 ~ 10dBm Probe type: InGaAs Wavelength range: 800-1700nm Standard wavelength: 850/980/1300/1310/1490/1550/1625 Display resolution: linear display: 0.1% logarithmic display: 0.01dBm Working temperature: -10 ~ 60 ℃ Storage temperature: -25 ~ 70 ℃ Weight: 260 (G)

1km red light pen

Sufficient light source, stable performance, metal material, universal interface

Output optical power:> 1mW

Battery type: 5th battery

Switch machine: manual

Wavelength range: Specify a standard operating wavelength range from min to max, within which the optical power meter can be designed to work at the specified index

Dimensions: 175 * 26 * 26 (mm)

Weight: 100 (G)

FC-6S Fiber Cleaver Automatic rebound, using imported springback to ensure the stability of the cutting blade Cutting knife: 0.9mm Optical fiber: 10-18mm Cover diameter: 0.25 & 0.9mm Fiber package diameter: 125μm Cutting knife: 0.25mm Optical fiber: 9-18mm Weight: 430 (G)

Wire stripper

Reinforced, graduated, cut-in wire Scope of application: 3.1 * 2.0mm leather cable Reinforced rib material: plastic reinforced metal core Fiber diameter: 125μm Tight cladding diameter: 125μm Operating temperature: -20 ~ + 45 ℃ Optical fiber cores: 1-2 Product use: twisted pair, tight-clad cable CATV wire

Miller pliers

Easy-to-scratch coating does not hurt bare fibers Stripping range: 125mm fiber loose tube jacket, bare fiber, sheath fiber Whether to adjust the bite: adjustable Size: Length 16.5cm Weight: 150 (G)

Press alcohol bottle

Precise design eliminates volatilization, prevents corrosion and overflow, and the solution oozes out with just one touch Bottle mouth: tightly closed Material: High-quality PVC material Size: 60 * 123mm Capacity: 210ml

Why Choose Us

-Available products with high quality and resonable price

-Wonderful types for choose

-Shipping quickly

-Communication on line all the way

-Samples service for technology identification
