- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
JIANGSU, CHINA
-
Brand Name:
-
TAVAS OEM ODM
-
Dimension(L*W*H):
-
515 x 455 x545 mm
-
Weight:
-
63
-
Rated power/speed:
-
3000 rpm
-
Marketing Type:
-
2023 new tech
-
Warranty of core components:
-
12 months
-
Key Selling Points:
-
climate friendly powerful engine
-
Power output:
-
Crankshaft camshaft
-
Air filter options:
-
Dual stage, Oil bath, Cyclone
-
Camshaft PTO:
-
1500 rpm
-
Crankshaft PTO:
-
3000 rpm
-
Key start:
-
Optional
-
PTO types:
-
straight key, thread, Spline, Taper
-
Euro 5:
-
Optional
Quick Details
-
Displacement:
-
667cc
-
Emission Standard:
-
Euro 2 Euro 5
-
Power:
-
9.8 kW
-
Place of Origin:
-
JIANGSU, CHINA
-
Brand Name:
-
TAVAS OEM ODM
-
Dimension(L*W*H):
-
515 x 455 x545 mm
-
Weight:
-
63
-
Rated power/speed:
-
3000 rpm
-
Marketing Type:
-
2023 new tech
-
Warranty of core components:
-
12 months
-
Key Selling Points:
-
climate friendly powerful engine
-
Power output:
-
Crankshaft camshaft
-
Air filter options:
-
Dual stage, Oil bath, Cyclone
-
Camshaft PTO:
-
1500 rpm
-
Crankshaft PTO:
-
3000 rpm
-
Key start:
-
Optional
-
PTO types:
-
straight key, thread, Spline, Taper
-
Euro 5:
-
Optional
Products Description

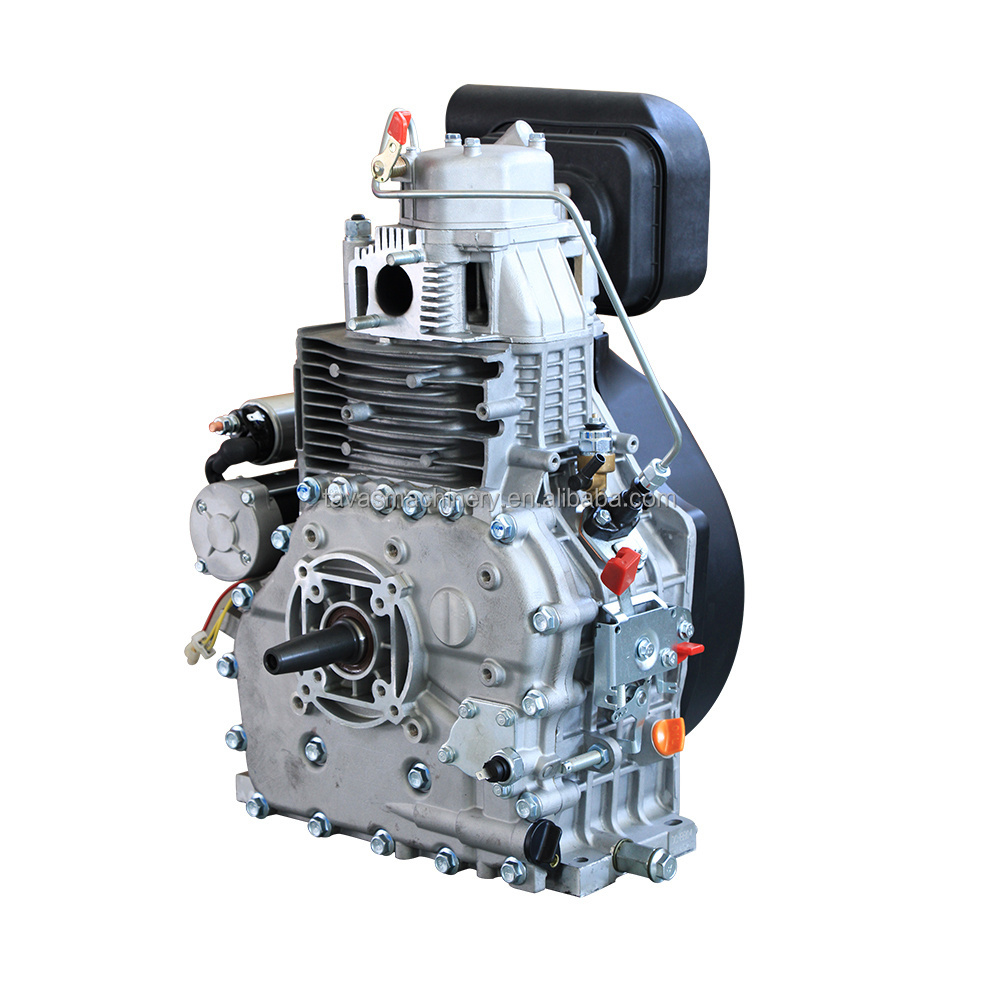

15 hp 1100 F best price 4 stroke made in China slow speed diesel engines with single cylinder
The 1100F diesel engine has several benefits, including high fuel efficiency due to its higher compression ratio and longer stroke, durability with minimal maintenance needed, significant power for its size, reliability in harsh conditions, and versatility for use in various applications.
This makes it a versatile choice for many different industries and use cases.
|
Technical data
|
|
|
|
|
|
|||||
|
Engine model
|
|
1100F(E)
|
|
1103F(E)
|
1105F(E)
|
|||||
|
Type
|
|
Single-Cylinder, Vertical, 4-Stroke Air-Cooled Diesel Engine
|
|
|
|
|||||
|
Combustion System
|
|
Direct Injection
|
|
|
|
|||||
|
Bore x Stroke
|
mm
|
100×85
|
|
103×88
|
105×88
|
|||||
|
Displacement
|
cc
|
667
|
|
720
|
762
|
|||||
|
Engine speed
|
rpm
|
3000
|
|
3000
|
3000
|
|||||
|
Max Output
|
kW
|
9.8
|
|
12.7
|
13.0
|
|||||
|
Continuous Output
|
kW
|
9.1
|
|
11.7
|
12.0
|
|||||
|
PTO type
|
|
Crankshaft or Camshaft(1/2 rpm)
|
|
|
|
|||||
|
Starting System
|
|
Electric
|
|
Electric
|
Electric
|
|||||
|
Cooling System
|
|
Forced air-cooling by fly wheel fan
|
|
|
|
|||||
|
Lubrication System
|
|
Forced lubrication at multiple points
|
|
|
|
|||||
|
Oil Type
|
|
10W/30SAE
|
|
10W/30SAE
|
10W/30SAE
|
|||||
|
Lubrication Volume
|
L
|
2.5
|
|
2.5
|
2.5
|
|||||
|
Fuel Type
|
|
0#(Summer) or-10#(Winter) Light Diesel Oil
|
|
|
|
|||||
|
Fuel Tank Capacity
|
L
|
5.5
|
|
5.5
|
5.5
|
|||||
|
Fuel Consumption Rate
|
g/kW.h
|
<270
|
|
<270
|
<270
|
|||||
Customizable PTO types:
Straight Key shaft
Tapered shaft
Threaded shaft
Spline shaft

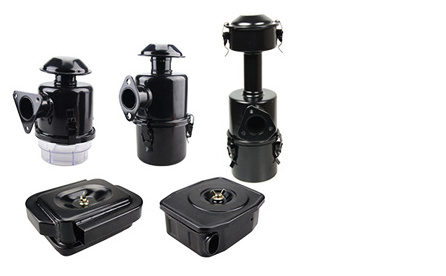

Customizable air filter:
Semi-dry type
Oil bath type
Cyclone type
Dual-stage type

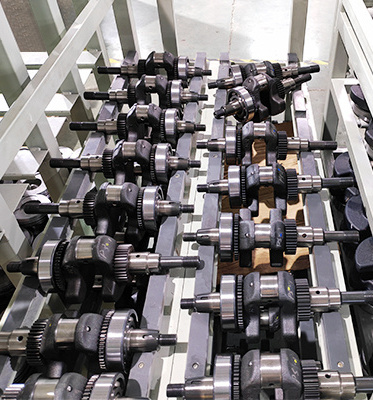

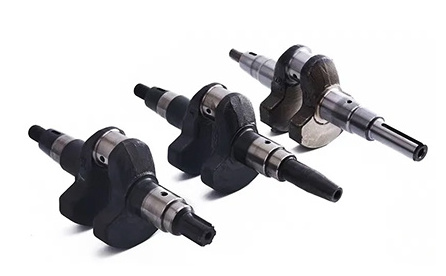

Nitrided crankshaft with lifetime guarantee.
Precisely controlled fuel supply angles to ensure full
combustion and fuel economy
Crankshafts, camshafts and balance shafts all equipped
with top class bearings
High strength crankcase, secured with top quality #12.9
mild steel bolts
