- Product Details
- {{item.text}}
Quick Details
-
Product Weight（kg）:
-
0.2
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Sunricher
-
Connection Mode:
-
Wiring
-
Product Name:
-

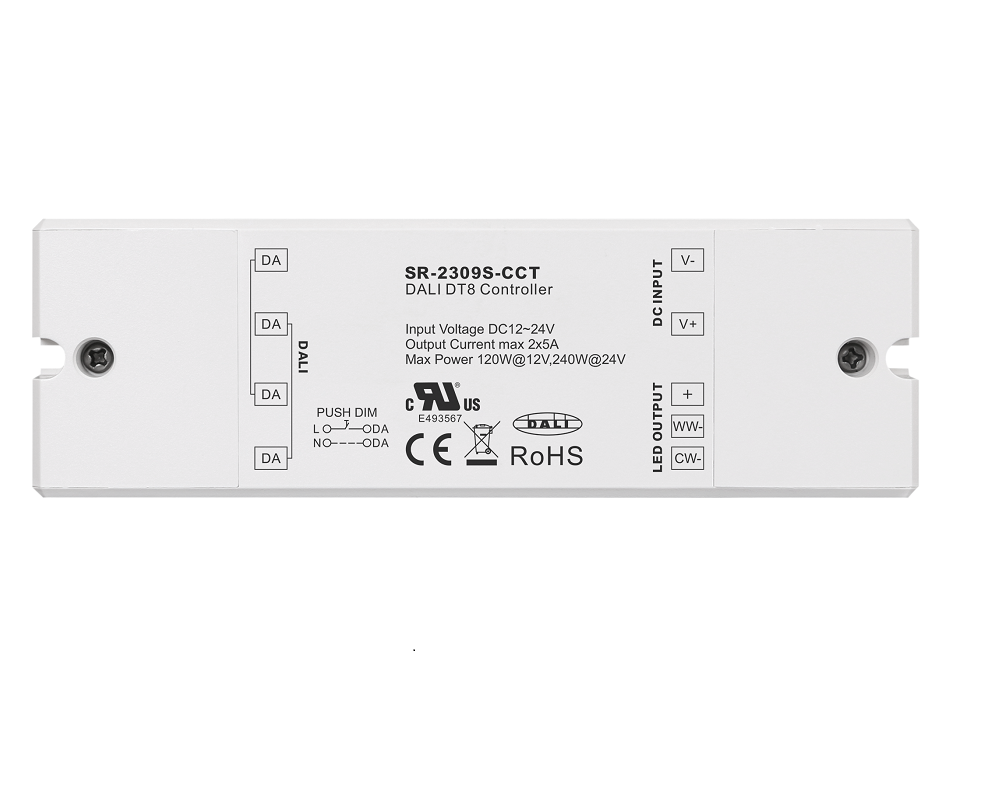

DALI DT8 DC Controller
-
Output Power:
-
120-240W
-
Output Current:
-
2*5A
-
Dimming Range:
-
0.1%-100%
-
Address:
-
1
-
Remarks:
-
Constant Voltage
-
DALI Consumption:
-
2mA
-
Channel:
-
2
-
IP Rate:
-
IP20
-
Size:
-
145x46.5x16mm
Quick Details
-
Warranty(Year):
-
5-Year
-
Type:
-
LED Controller
-
Max. Load Power:
-
120-240W
-
Product Weight（kg）:
-
0.2
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Sunricher
-
Connection Mode:
-
Wiring
-
Product Name:
-
DALI DT8 DC Controller
-
Output Power:
-
120-240W
-
Output Current:
-
2*5A
-
Dimming Range:
-
0.1%-100%
-
Address:
-
1
-
Remarks:
-
Constant Voltage
-
DALI Consumption:
-
2mA
-
Channel:
-
2
-
IP Rate:
-
IP20
-
Size:
-
145x46.5x16mm
Product Description
* In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2, IEC 62386-209:2011.
* Built-in DALI-2 interface, DALI DT8 device.
* 2 Channels constant voltage output with max. 5A per channel.
* Color control as defined in the DALI specification for device type 8, color type Tc.
* Supports DT8 device commands, compatible with DALI masters that support DT8 commands.
* Configuration via DALI master USB interface.
* DALI DT8 device to control Warm White and Cool White output via a single DALI address.
* Enables Dimming and Color Temperature Adjustment.
* Waterproof grade: IP20
Specification
|
Brand Name
|
SUNRICHER
|
|
Product Name
|
DALI DT8 DC Controller
|
|
Output Power
|
120-240W
|
|
Output Current
|
5A/CH
|
|
Channel
|
2
|
|
Remarks
|
Constant voltage
|
|
Protocol
|
DALI
|
|
Dimming Range
|
0.1%-100%
|
|
DALI Consumption
|
2mA
|
|
IP Rate
|
IP20
|
|
Size
|
145x46.5x16mm
|
