Quick Details
-
Model Number:
-
CYX25P
-
Pressure type:
-
Pressure Sensor CYX25P
-
range:
-
0kPa ~ 10KPa--10MPa
-
Weight:
-
50g
-
Response Time:
-
≤1ms
-
constant acceleration:
-
100g, 11ms
-
Shell & Diaphragm Material:
-
all 316L stainless steel
-
Measuring Medium:
-
The fluid which is compatible with 316L, viton, nitrile rubber
-
media compatibility:
-
liquid or gas of 316L and NBR (optional fluororubber)
-
power supply:
-
(1.5 ± 0.0015) mA DC
-
Long-term Stability:
-
0.2Typical value 0.3Maximum
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Gansu, China
-
Brand Name:
-
HUATIAN
-
Model Number:
-
CYX25P
-
Pressure type:
-
Pressure Sensor CYX25P
-
range:
-
0kPa ~ 10KPa--10MPa
-
Weight:
-
50g
-
Response Time:
-
≤1ms
-
constant acceleration:
-
100g, 11ms
-
Shell & Diaphragm Material:
-
all 316L stainless steel
-
Measuring Medium:
-
The fluid which is compatible with 316L, viton, nitrile rubber
-
media compatibility:
-
liquid or gas of 316L and NBR (optional fluororubber)
-
power supply:
-
(1.5 ± 0.0015) mA DC
-
Long-term Stability:
-
0.2Typical value 0.3Maximum
Recommend Products
Product Parameters

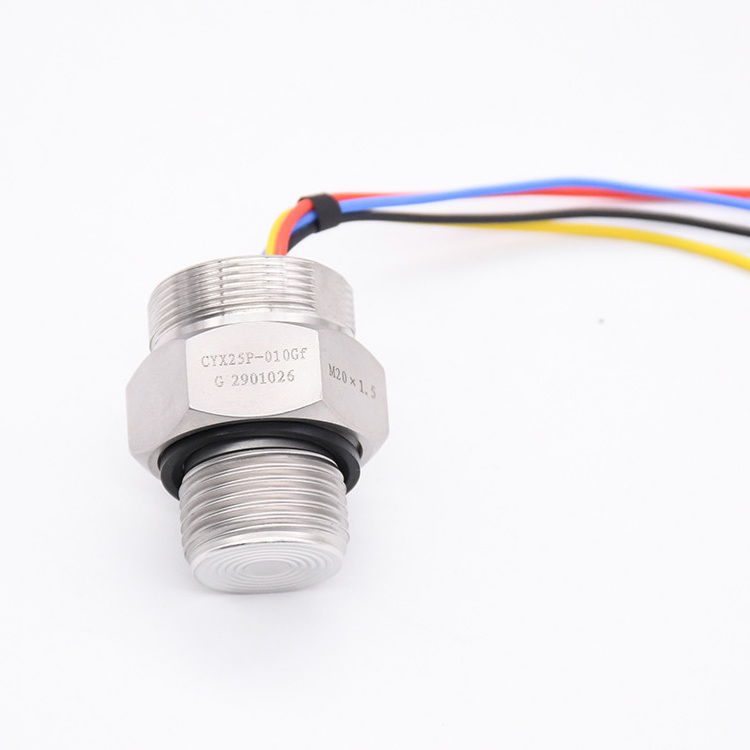

China Huatian sell well CYX25P -100kPa to 10MPa micro pressure sensor flat membrane for liquid and gas
|
Range
|
-100kPa~100MPa
|
|
|
||
|
Parameters
|
Typical Value
|
Maximum Value
|
Unit
|
||
|
Zero Output
|
±1
|
±2
|
mV
|
||
|
Nonlinearity
|
0.2
|
0.5
|
%FS
|
||
|
Hysteresis
|
0.05
|
0.1
|
%FS
|
||
|
Repeatability
|
0.05
|
0.1
|
%FS
|
||
|
Input/ Output Impedance
|
2.6
|
3.8
|
kΩ
|
||
|
Zero Temperature Drift*
|
±0.15
|
±0.8
|
%FS,@25℃
|
||
|
Sensitivity Temperature Drift*
|
±0.2
|
±0.7
|
%FS,@25℃
|
||
|
Long-term Stability
|
0.1
|
|
%FS/year
|
||
|
Excitation Current
|
1.5(Max input voltage is 10VDC)
|
|
mA
|
||
|
Insulation Resistance
|
500(500VDC)
|
|
MΩ
|
||
|
Compensation Temperature
|
0~50; -10~80
|
|
℃
|
||
|
Operating Temperature
|
-40~+85
|
|
℃
|
||
|
Storage Temperature
|
-40~+125
|
|
℃
|
||
|
Response Time
|
≤1
|
|
ms
|
||
|
Shell & Diaphragm Material
|
316L Stainless Steel
|
|
|
||
|
Measuring Medium
|
The fluid which is compatible with 316L, viton, nitrile rubber
|
|
|
||
|
Vibration(20~500Hz)
|
20
|
|
G
|
||
|
Useful Time(25℃)
|
>1*108Pressure Circulation(80%FS)
|
|
times
|
||
|
Packing Medium
|
Silicon Oil / Fluorine Oil
|
|
|
||
|
Weight
|
36
|
|
g
|
||
|
O Ring
|
Φ16*1.8mm(nitrile rubber or viton)
|
|
|
||
|
Range
|
Full scale
Output (mV) |
Typical value
|
Pressure form
|
Range
|
Full scale
Output (mV) |
Typical value
|
Pressure
form |
|
0～10kPa
|
35～60
|
45
|
G
|
0～600kPa
|
90～120
|
100
|
G/A
|
|
0～20kPa
|
70～110
|
90
|
G
|
0～1.0MPa
|
80～120
|
100
|
G/A
|
|
0～35kPa
|
55～80
|
70
|
G/A
|
0～1.6MPa
|
125～185
|
150
|
G/A
|
|
0～70kPa
|
55～80
|
60
|
G/A
|
0～2.0MPa
|
50～70
|
60
|
G/A
|
|
0～100kPa
|
60～85
|
75
|
G/A
|
0～3.5MPa
|
100～120
|
110
|
G/S/A
|
|
0～200kPa
|
65～85
|
75
|
G/A
|
0～7.0MPa
|
120～150
|
135
|
S/A
|
|
0～400kPa
|
60～80
|
70
|
G/A
|
0～10MPa
|
180～230
|
200
|
S/A
|
Products Description
Features
the measuring range is 0kPa ～ 10KPa···10MPa
it has the form of gauge pressure G, absolute pressure A and sealing gauge pressure S
constant current / constant voltage power supply
isolated structure, suitable for a variety of fluid media
M20 × 1.5, G1/2 thread optional
all 316L stainless steel
Application
The products are widely used in coal, petroleum, medicine, civil explosive, chemical, electric power, metallurgy, light industry, food, water conservancy, military industry and other fields.
Main uses:
industrial process control
liquid level measurement
gas and liquid pressure measurement
pressure switch and hydraulic system
medical and food equipment
