Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
WM
-
Model Number:
-
WCHL
-
Usage:
-
pipe line connector
-
Specification:
-
1/8~1
-
Material:
-
Stainless Steel 304/316
-
Thread Type:
-
NPT BSP BSPT G
-
Packing:
-
Carton Box
-
Color:
-
Silver
-
Working Pressure:
-
MAX 2.0 Mpa
-
Technology:
-
Investment Casting and CNC
-
Function:
-
Watering System Fittings
-
Package:
-
Paper Box
Quick Details
-
Technics:
-
CNC
-
Shape:
-
Equal
-
Head Code:
-
Pagoda shape
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
WM
-
Model Number:
-
WCHL
-
Usage:
-
pipe line connector
-
Specification:
-
1/8~1
-
Material:
-
Stainless Steel 304/316
-
Thread Type:
-
NPT BSP BSPT G
-
Packing:
-
Carton Box
-
Color:
-
Silver
-
Working Pressure:
-
MAX 2.0 Mpa
-
Technology:
-
Investment Casting and CNC
-
Function:
-
Watering System Fittings
-
Package:
-
Paper Box

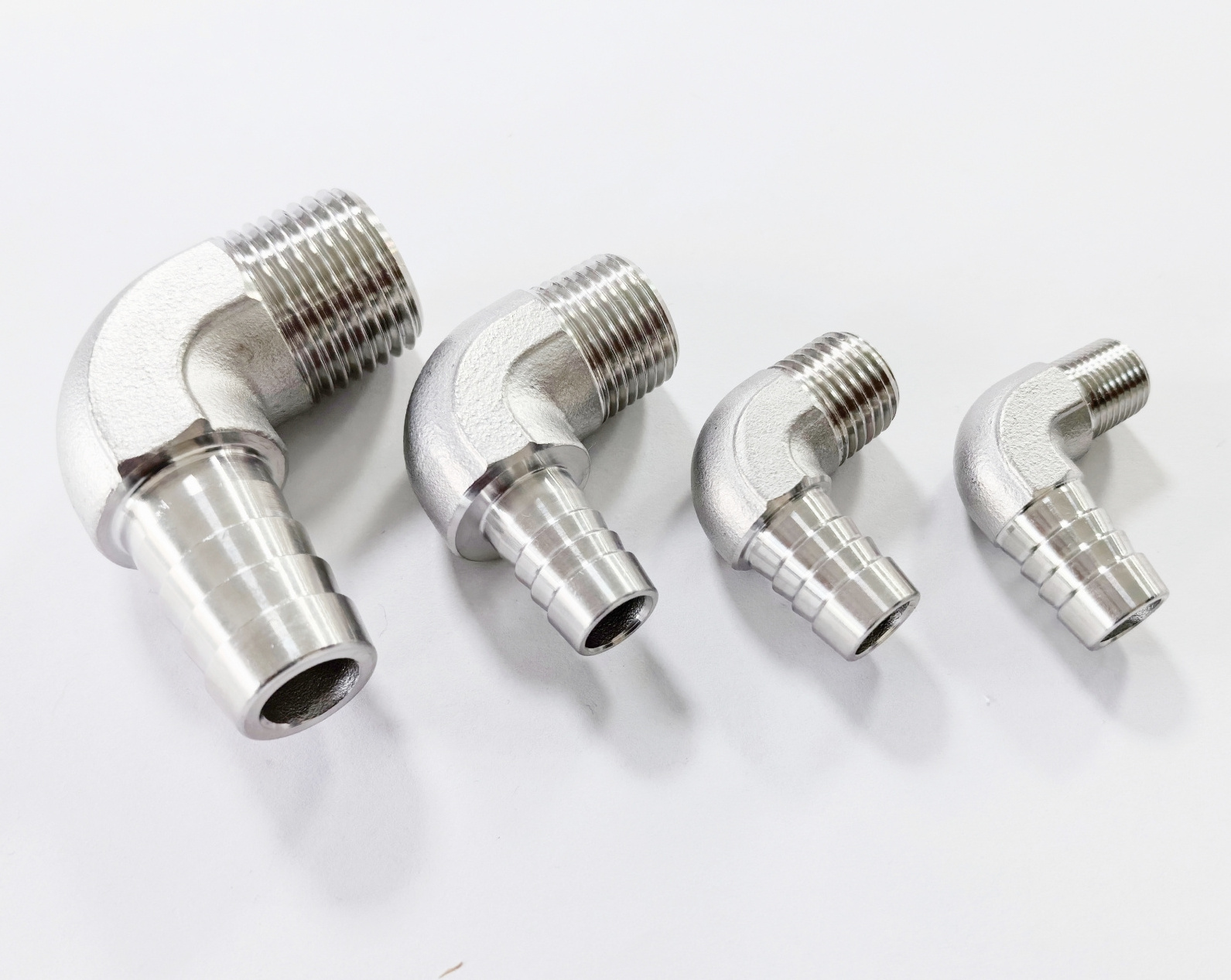

Details Images
Details Images
Consistent quality for
16 years
offline export Japan Germany USA since 2012
GOOD QUALITY VISABLE
CLEAR THEARD
DEEP VEINS
Various sizes,OEM higly welcomed
Product Paramenters
|
Use Temperature C
|
-20~40°c
|
100°C
|
150°C
|
200°C
|
220°C
|
||||
|
Maximum allowable pressure MPA
|
2.0
|
1.65
|
1.50
|
1.4
|
1.35
|
||||
|
Use fluids
|
Water, oil, air, vapor, gas (other than combustibility, per sex)
|
|
|
|
|
||||
Unit: mm
|
Name
|
Thread Size
|
D
|
L
|
|
WMCHL-1/8
|
1/8
|
11.0
|
24.0
|
|
WMCHL-1/4
|
1/4
|
11.0
|
24.0
|
|
WMCHL-3/8
|
3/8
|
11.0
|
30.0
|
|
WMCHL-1/2
|
1/2
|
15.2
|
40.0
|
|
WMCHL-1/2
|
1/2
|
16
|
40.0
|
|
WMCHL-3/4
|
3/4
|
19
|
50.0
|
|
WMCHL-3/4
|
3/4
|
20.5
|
50.0
|
|
WMCHL-1
|
1
|
27.5
|
60.0
|
Product Paramenters
