Quick Details
-
Rated Voltage:
-
24KV, 24KV
-
Tensile Strength:
-
11KN
-
Name:
-
Busbar Support Insulators
-
Rated mechanical bending load:
-
11KN
-
OEM:
-
Provided
-
Certificate:
-
CE ROHS ISO9001
-
Function:
-
Simple Installation,Safe Use,Cheap
-
Color:
-
Grey,Customized
-
Package:
-
Standard Case
-
Company:
-
Manufacturer
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SMICO
-
Model Number:
-
FPQ-24/11
-
Rated Voltage:
-
24KV, 24KV
-
Tensile Strength:
-
11KN
-
Name:
-
Busbar Support Insulators
-
Rated mechanical bending load:
-
11KN
-
OEM:
-
Provided
-
Certificate:
-
CE ROHS ISO9001
-
Function:
-
Simple Installation,Safe Use,Cheap
-
Color:
-
Grey,Customized
-
Package:
-
Standard Case
-
Company:
-
Manufacturer
You are here: Home >> Insulator >> Suspension Composite Insulator

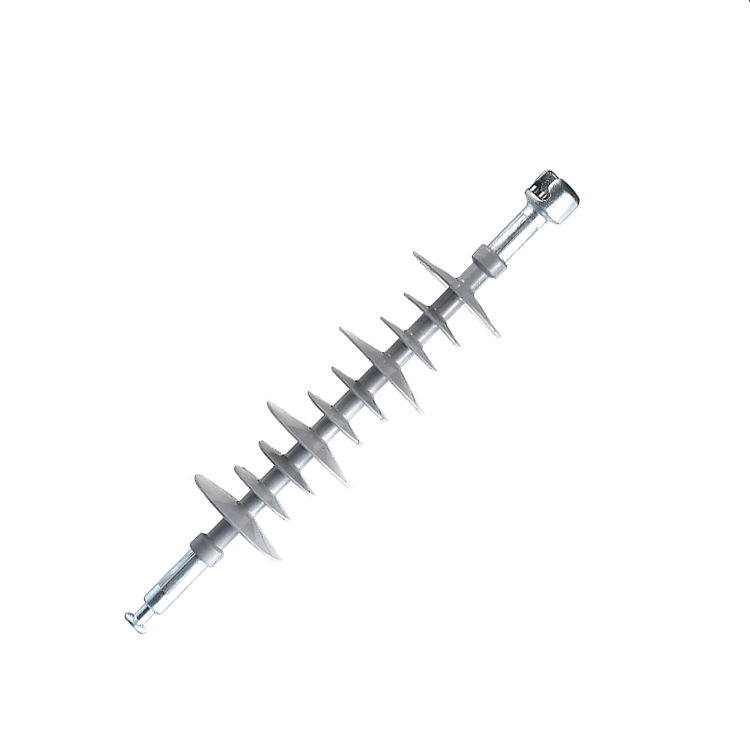

SMICO Most Selling Products Composite Post Busbar Support Insulators Fittings
Main Technical parameters(Performance meet the GB/T 19519-2004,IEC61109 and 61952)
| Product Model |
Rated Voltage (KV) |
Rated mechanical bending load (KV) |
Structure Height H.(mm) |
Min.Arc distance Li.(mm) |
Min.creepage distance Lc.(mm) |
Diameter of shed D.(mm) |
Lightning impulse withstand voltage (peak)(KV) |
P.F.1min wet withstand voltage (Virture value)(KV) |
| FZSW-24/6 | 24 | 6 | 315 | 200 | 450 | 120/100 | 145 | 65 |
|
FPQ2- 24/4 |
24 | 4 | 280 | 160 | 665 | 130/100 | 145 | 65 |
| FZSW-24/4 | 24 | 4 | 305 | 220 | 640 | 120/100 | 145 | 65 |
|
FPQ- 24/11 |
24 | 11 | 280 | 165 | 665 | 135/105 | 145 | 65 |
| FZSW-33/6 | 33 | 6 | 450 | 360 | 900 | 148/118 | 185 | 95 |
|
FPQ- 33/10 |
33 | 10 | 485 | 360 | 1255 | 122/92 | 185 | 95 |
|
FPQ- 33/12 |
33 | 12 | 545 | 380 | 1485 | 200 | 185 | 95 |
|
FPQ- 36/12 |
36 | 12 | 580 | 460 | 1460 | 140/110 | 185 | 95 |
|
FPQ-36/12.5 |
36 | 12.5 | 580 | 460 | 1460 | 140/110 | 185 | 95 |
1.Packaging:
Export Carton,or as your request.
2.Shipping Methods:
By air or by sea(FOB port:Shanghai/Ningbo),by express (DHL,UPS,TNT,FEDEX).
