- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Hanpu
-
Voltage:
-
220v
-
Dimension(L*W*H):
-
2100*1000*10
-
Weight:
-
10 KG
-
Power:
-
47kw
-
Working Temperature Range:
-
0-100
-
Application:
-
Cooling System
-
Material:
-
SS304/SS316L/TN2
-
Product name:
-
Product name
-
Welding technology:
-
Laser welding
-
Keyword:
-
Plate Heat Exchanger
Quick Details
-
Core Components:
-
pillow plate
-
Condition:
-
New
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Hanpu
-
Voltage:
-
220v
-
Dimension(L*W*H):
-
2100*1000*10
-
Weight:
-
10 KG
-
Power:
-
47kw
-
Working Temperature Range:
-
0-100
-
Application:
-
Cooling System
-
Material:
-
SS304/SS316L/TN2
-
Product name:
-
Product name
-
Welding technology:
-
Laser welding
-
Keyword:
-
Plate Heat Exchanger
Product Description

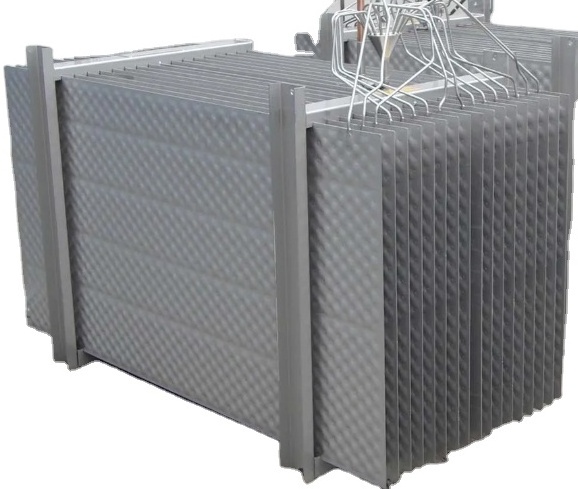

Two sheets of steel are overlapped and welded by laser. Laser ring welding is used in the middle of the sheet and two laser welding seals are used around the edge.Injecting high-pressure liquid between plates makes the plates expand and deform under pressure, forming a hollow plate heat exchanger with uneven surface.
Drum at one side
Single-sided drum pressure, generally as a flat sleeve or clamped heat exchanger.
Drum at both sides
Double-sided drum pressure, generally used as immersion heat exchange element.
Specification
|
High pressure capacity (≥40MPa)
|
Cost-effective due to low welding costs
|
|
Thinner materials can be used, saving you on material costs
|
Can be designed into any shape
|
|
Pillow Plates' welding pattern guarantees high turbulence and therefore creates high overall heat transfer coefficients
|
Due to the low volume in the plate, little cooling / heating fluid needs to be circulated. As a result, less pump capacity is required
|
|
Maximum size of single piece: 2000*12000mm
|
Easy to clean
|
Accept any other special shape and size design and customization！
Product Advantage:
(1) The inflated channels create the higher turbulence flow to achieve the higher heat transfer efficiency
(2) Available in most materials, like stainless steel SS304, 316L, 2205 Hastelloy titanium and others
(3) Custom-made size and shape are available
(4) Under the maximum internal pressure is 60 Bar
(5) Low pressure drops
(6) Easy for cleaning and replacing
(1) The inflated channels create the higher turbulence flow to achieve the higher heat transfer efficiency
(2) Available in most materials, like stainless steel SS304, 316L, 2205 Hastelloy titanium and others
(3) Custom-made size and shape are available
(4) Under the maximum internal pressure is 60 Bar
(5) Low pressure drops
(6) Easy for cleaning and replacing
Product Details
Application
