fiber, rubber, organic waste and non metallic materials. It consists of a single solid shaft with square blades bolted into it.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
HD
-
Power (kW):
-
22
-
Weight (T):
-
4
-
Maximum feed size:
-
550-1350mm
-
Blade diameter:
-
260-400mm
-
Spindle diameter:
-
140-190mm
-
Spindle speed:
-
75r/min
-
Motor power:
-
22-110kw
-
Fixed blade material:
-
D2
-
Moving blade material:
-
DC53
-
Capacity:
-
500-4500kg/h
-
Weight:
-
2300-4900kg
-
Color:
-
Customers' Demand
Quick Details
-
Max.Production Capacity (kg/h):
-
4500
-
Place of Origin:
-
Henan, China
-
Production Capacity (kg/h):
-
500 - 4500 kg/h
-
Brand Name:
-
HD
-
Power (kW):
-
22
-
Weight (T):
-
4
-
Maximum feed size:
-
550-1350mm
-
Blade diameter:
-
260-400mm
-
Spindle diameter:
-
140-190mm
-
Spindle speed:
-
75r/min
-
Motor power:
-
22-110kw
-
Fixed blade material:
-
D2
-
Moving blade material:
-
DC53
-
Capacity:
-
500-4500kg/h
-
Weight:
-
2300-4900kg
-
Color:
-
Customers' Demand
Products Description

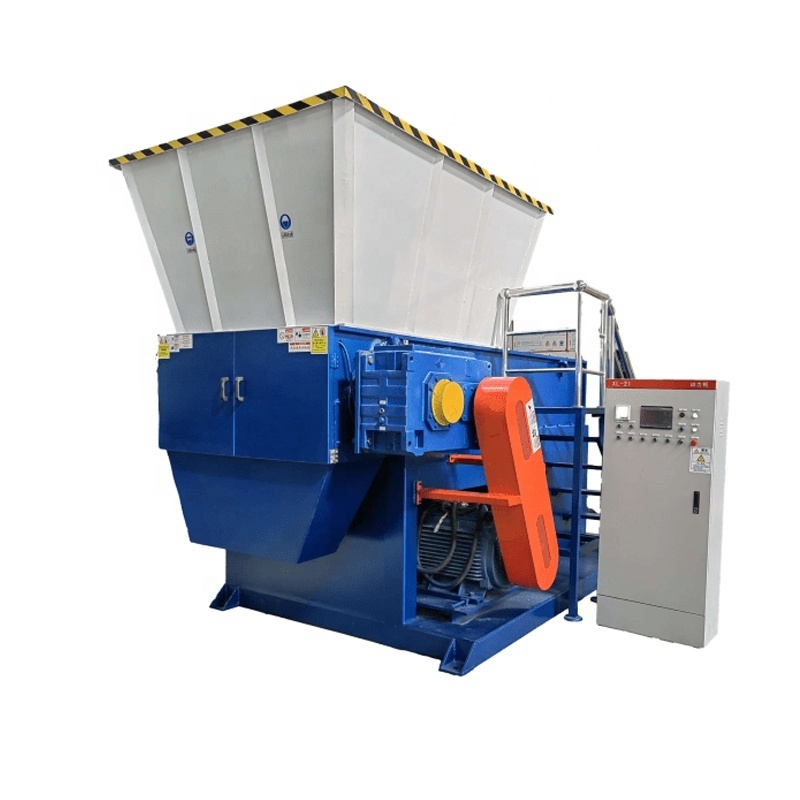

fiber, rubber, organic waste and non metallic materials. It consists of a single solid shaft with square blades bolted into it.
Details Images
Rotary shaft:
The rotary shaft made by high quality carbon steel, anti-worn
Rotary blade: Move blade made by D-2, by bolt fixed in the rotor shaft ,it is easy for worker change it . blade can use 4 times when the blade worn after using long time
Fixed Blade :Using D-2 materail, more better than SKD-II, We also can use DC-53 material
Screen:The screen use carbon steel made, the flakes will easy shredding and down.
Rotary blade: Move blade made by D-2, by bolt fixed in the rotor shaft ,it is easy for worker change it . blade can use 4 times when the blade worn after using long time
Fixed Blade :Using D-2 materail, more better than SKD-II, We also can use DC-53 material
Screen:The screen use carbon steel made, the flakes will easy shredding and down.
Advantages:
1.Low noise, smooth operation process, no harsh noise, no need to do sound insulation measures;
2.Cooperate with control electric box, low energy consumption, high degree of automatic operation, low failure rate of automatic operation;
3.Blade wear slow, low replacement frequency, blade can be changed Angle multiple use;
4.Strong versatility, can be broken in addition to metal all materials;
1.Low noise, smooth operation process, no harsh noise, no need to do sound insulation measures;
2.Cooperate with control electric box, low energy consumption, high degree of automatic operation, low failure rate of automatic operation;
3.Blade wear slow, low replacement frequency, blade can be changed Angle multiple use;
4.Strong versatility, can be broken in addition to metal all materials;
Product Paramenters
|
Model
|
Cutter diameter(mm)
|
Spindle speed(r/min)
|
Discharge particle size(mm)
|
Capacity(t/h)
|
Power(kw)
|
|
600
|
300
|
75
|
5-50
|
0.5-1
|
22
|
|
800
|
300
|
75
|
5-50
|
1-2
|
37
|
|
1000
|
360
|
75
|
5-50
|
2-4
|
55
|
|
1200
|
400
|
75
|
5-50
|
4-8
|
90
|
|
1400
|
400
|
75
|
5-50
|
6-12
|
132
|
