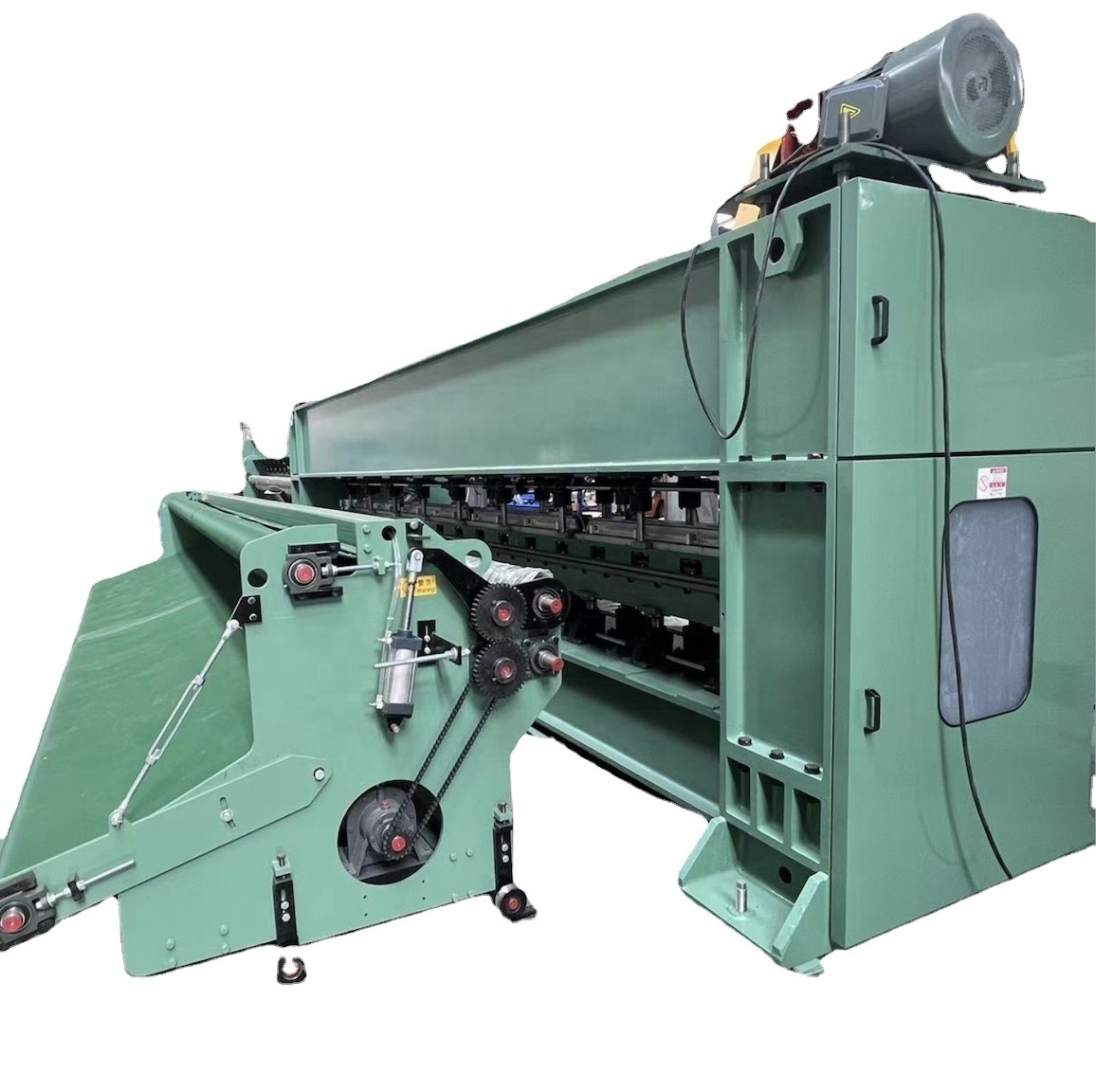

High speed needle punching machine weaving loom machine industrial weaving machines at good prices

Bale opener-Pre Opene r -Large chamber mixer-Fine Opener-Feeder-Double Cylinder Double Doffer Carding Machine-Cross Lapper-Needle Loom-Ironing Machine-Winding Machine-Edge trim recycling Machine

A pplication :

hook, so that the fibers are entangled, forming a non-woven fabric with a certain tension in the vertical and horizontal direction; The main structure is composed of beam, pin plate, transmission and so on.

Technical parameters:

Working width: 4500mm

Needling range: 40-60mm

Needle density: 3500-6000 / m

Acupuncture frequency: 450~600r/min

Cloth moving speed: 1 to 8m/min

Installed power: 18KW (subject to actual design)

Structural features:

I s welded with high quality steel plate. The vertical wall plate is 30mm and the transverse wall plate is 25mm. The main beam is qualitatively treated with sufficient strength and stability.

Bottom needle beam 6 turbine electric lifting, stripping 6 worm gear box electric lifting.

¢133× 7mm

Inlet roller is ¢133× 7mm seamless tube roller is sandblasted chrome plated, roller is more static balance.

Needle plate to use epoxy board material, irregular American Molison disorderly cloth needle, computer drilling. Pinhole ¢1.83mm, airbag was locked, qualitative treatment of main beam was stable enough, movable beam was iron beam to make thick and heavy products.

Spindle diameter is 70mm, bearing is used in Wuxi Torrington double row self-aligning roller bearing, with a ¢70mm tight set sleeve, spindle belt plate is 320mm smaller, six grade bearing.

Eccentric: material QT50-5 nodular ink casting

The supporting cotton, stripping board and incoming and outgoing materials are electroplated and polished with a thickness of 12mm
