Products
100 ton favorable price metal plate hydraulic press machine
100 ton favorable price metal plate hydraulic press machine
100 ton favorable price metal plate hydraulic press machine
100 ton favorable price metal plate hydraulic press machine
100 ton favorable price metal plate hydraulic press machine
100 ton favorable price metal plate hydraulic press machine
100 ton favorable price metal plate hydraulic press machine
100 ton favorable price metal plate hydraulic press machine

100 ton favorable price metal plate hydraulic press machine

FOB Reference Price: Get Latest Price
≥1 Pieces
US $15500
≥2 Pieces
US $15000
≥3 Pieces
US $14500
≥4 Pieces
US $14000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
hydraulic press machine:
100 ton favorable price metal plate hydraulic press machine
Keyword:
Hydraulic Press
Color:
Optional Color Hydraulic Press
Application:
Metal Sheet Stamping
Type:
Four Columns
Model:
YW32 Four column hydraulic press
Nominal Force:
315 ton
Usage:
Pressing Metal Products
Name:
Y32 Hydraulic Press Machine
Product name:
100 ton favorable price metal plate hydraulic press machine
Weight:
1-6T
Certification:
CE ISO
Power:
22x2

Quick Details

Place of Origin:
Jiangsu, China
CNC or Not:
Normal
Power Source:
Hydraulic
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
hydraulic press machine:
100 ton favorable price metal plate hydraulic press machine
Keyword:
Hydraulic Press
Color:
Optional Color Hydraulic Press
Application:
Metal Sheet Stamping
Type:
Four Columns
Model:
YW32 Four column hydraulic press
Nominal Force:
315 ton
Usage:
Pressing Metal Products
Name:
Y32 Hydraulic Press Machine
Product name:
100 ton favorable price metal plate hydraulic press machine
Weight:
1-6T
Certification:
CE ISO
Power:
22x2
Product Description
Parameter
Unit
Spec.
Nominal Force
kN
3150
Max.hydraulic ic pressure
MPa
25
Stroke of slide
mm
800
Max. Die shut height
mm
1250

Speed of slide
Empty descending
mm/s
100
pressing
mm/s
8-12
return
mm/s
60

Table size
L-R
mm
1260
F-B
mm
1200
Motor Power
kW
kW
22

100 ton favorable price metal plate hydraulic press machine

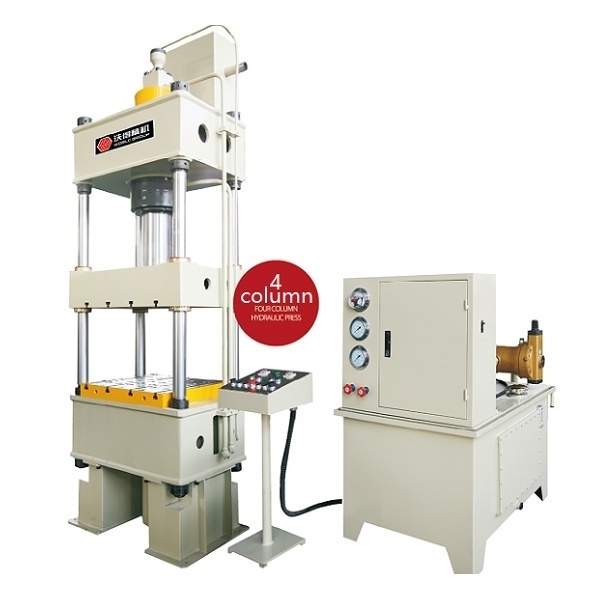

1. Structure: it consists of an upper beam, a slide block, a workbench, an upright post, a main cylinder, hydraulic system and electrical system components. The column uses the high quality 45# forging steel and the surface hardness can reach HRC38-42.The main oil cylinder seals use imported materials to ensure reliable sealing.
100 ton favorable price metal plate hydraulic press machine
2. Hydraulic System: The hydraulic system device is arranged on the right side of the press, with cartridge integrated system, flexible action, reliable work, good sealing performance. The hydraulic pump comprises an oil tank, a high-pressure pump, motor, cartridge valves and other components.
100 ton favorable price metal plate hydraulic press machine
3. Electrical Control System: an independent electric cabinet and a centralized control panel.
100 ton favorable price metal plate hydraulic press machine
4. Operation: Two working modes as inches and semi-automatic strokes.

Detailed Images
Our Company

World Group has been focusing on research and design, manufacturing and sales of better prices with better quality machines such as construction machines, metal forming machines, agriculture machines and garden machines, since it was established in 1988. World is a true expert of machine- manufacturing based on more than 20 years experience.

We have mainly four individual branches: wheel loaders and hydraulic excavator factory; power presses, shearing machines and bending machines factory; combine harvesters and tractors factory; lawn mowers factory. Each one is equipped with advanced production equipment, experienced staff, and strictly effective quality assurance system. World selects best material and parts for the machines and the most important is World manufactures most of the parts by itself for better to control the quality. Therefore, World brand products win the reputation of practical, reliable and durable.

Nowadays World Group is developing the global market, so that we set up a international marketing branch Shanghai Yingxin World Machinery Co., Ltd which enabling us to give better communication and service to our clients all over the world.

Why Choose Us

Professional team and excellent service

Advanced production equipment

Strong production capacity

Customer support and trust

Packing & Delivery
Our Service

1. OEM Manufacturing welcome: Customer brand, Color...
2. Spare parts in stock.
3. We will reply you for your inquiry in 24 hours.
4. Factory visiting, pre-shipment inspection, training...
5. Purchasing agent for related machines...

Other Products
FAQ

Q1. Are you manufacturer or trader?
A: World is a group company and World is TOP500 Private Company in China. We are manufacturer of construction machines, agriculture machines and power press machines. Actually, we produce most of the parts in our own factory for better cost and quality control. Shanghai Yingxin World is the exporting center of all World brand machines.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.


Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.


Q4. How about your delivery time?
A: Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order. Sometimes we have some in stock.

Q5. Are you interested in dealership with local company?
A: Yes, we are quite interested in this business. We'd like to cooperate with some local partner to sell more World machines in local market and supply better service.

Q6. What is your warranty policy?
A: We can supply one year warranty for our machines. We will provide parts as free within warranty. We can send engineer to customer place if big quality problem. We can provide internet or calling service at any time.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8. Can you provide some videos of your factory and the machine working?
A: Yes, please visit our Facebook to get more videos.
www.facebook.com/worldpowerpress

Q9: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
