Quick Details
-
Voltage:
-
3PH-380V-50HZ
-
Dimension(L*W*H):
-
1200*600*1100MM
-
Weight:
-
200 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Refrigerant:
-
R407c/R134a/R22/R410a
-
Product name:
-

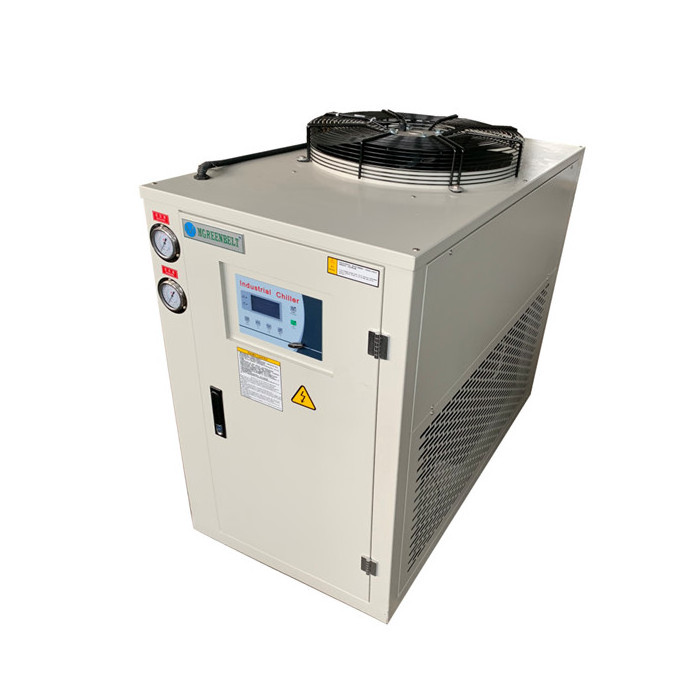

Stype Air Cooled Industrial Water Chiller
-
Application:
-
Industrial Cooling Solutions
-
Compressor Brand:
-
Copeland \ Danfoss \ Sanyo\Hanbell
-
Evaporator type:
-
High efficiency copper tube shell and tube type
-
Cooling capacity:
-
18KW~4000KW
-
Compressor type:
-
Hermetic Scroll Type(piston)
-
Power supply:
-
3PH-380V/415V/440V/460V/480V-50HZ/60HZ
-
Condenser:
-
high efficiency hydrophilic aluminum foll finned type
Quick Details
-
Condition:
-
NEW100%
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
MGREENBELT
-
Voltage:
-
3PH-380V-50HZ
-
Dimension(L*W*H):
-
1200*600*1100MM
-
Weight:
-
200 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Refrigerant:
-
R407c/R134a/R22/R410a
-
Product name:
-
Stype Air Cooled Industrial Water Chiller
-
Application:
-
Industrial Cooling Solutions
-
Compressor Brand:
-
Copeland \ Danfoss \ Sanyo\Hanbell
-
Evaporator type:
-
High efficiency copper tube shell and tube type
-
Cooling capacity:
-
18KW~4000KW
-
Compressor type:
-
Hermetic Scroll Type(piston)
-
Power supply:
-
3PH-380V/415V/440V/460V/480V-50HZ/60HZ
-
Condenser:
-
high efficiency hydrophilic aluminum foll finned type
Product Application
Main Features
1.We offer a wide range of Air Cooled Chillers that are designed to handle any cooling problem.
2.These chillers have best standard compressor and latest design fins & tube heat exchanger.
3.Our Air Cooled Chillers have powerful cooling ability, low noise, low vibration, high efficiency and high reliability due to which they are highly approved by our clients.
4.our chillers are very cost-effective.
|
SPECIFICATIONS FOR 5HP COLD WATER CHILLER
|
|
|
|
|||
|
MG-5C
|
Cooling capacity
|
kcal/h
|
11266
|
|||
|
|
Cooling capacity
|
Kw
|
13.1
|
|||
|
|
Power
|
kw
|
5.61
|
|||
|
Main parts
|
Compressor
|
hermetic scroll type
|
4.2KW
|
|||
|
|
Evaporator
|
SS Tank with coil or Shell and tube
|
70L capacity
|
|||
|
|
Condenser
|
aluminum foil finned type
|
0.52KW
|
|||
|
Dimension
|
Length
|
1220mm
|
|
|||
|
|
Width
|
690mm
|
|
|||
|
|
Height
|
1200mm
|
|
|||
Technical service
1. We calculate the capacity and recommend the best models.
2. We design and develop the new products according to your requirement besides our standard products.
3. We supply you the professional refrigeration technical support and electronic technical support for your installation, debugging and operation.
4. We supply the spare parts and technical support in & after the warranty time.
5. We supply the training course to your workers at our factory if you need.
After sale service
1. One-Year guarantee for whole unit and all parts free
2. Machines have to be strictly adjusted before delivery and deliver with firm & reliable packing and transportation.
3. Spare parts and technical support at most economic prices after the warranty.
4. 24 hours on line service.
|
Packaging
|
|
|
|
Size
|
1220(L) * 690 (W) * 1200 (H)
|
|
|
Weight
|
200kg
|
|
|
Packaging Details
|
The normal package is veneer case. If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
|
