Quick Details
-
Weight:
-
8850 KG
-
Horsepower:
-
20-260hp
-
Color:
-
Red/Yellow/Green/Blue/Orange and so on
-
Engine Model:
-
diesel 6 cylinders
-
Clutch:
-
Dual-stage Clutch
-
Implements:
-
Three point linkage
-
PTO speed:
-
540/1000 or 760/1000
-
Gear shift:
-
16F+16R/40F+40R
-
Tire:
-
20.8-42/20.8-38/16.9-28
-
Cabin:
-
Luxury/AC/Reverse camera
-
Seat:
-
Air
Quick Details
-
Brand Name:
-
Volfond
-
Place of Origin:
-
Shandong, China
-
Engine Brand:
-
Lovol/YTO/Weichai/Yuchai/Shangchai
-
Weight:
-
8850 KG
-
Horsepower:
-
20-260hp
-
Color:
-
Red/Yellow/Green/Blue/Orange and so on
-
Engine Model:
-
diesel 6 cylinders
-
Clutch:
-
Dual-stage Clutch
-
Implements:
-
Three point linkage
-
PTO speed:
-
540/1000 or 760/1000
-
Gear shift:
-
16F+16R/40F+40R
-
Tire:
-
20.8-42/20.8-38/16.9-28
-
Cabin:
-
Luxury/AC/Reverse camera
-
Seat:
-
Air

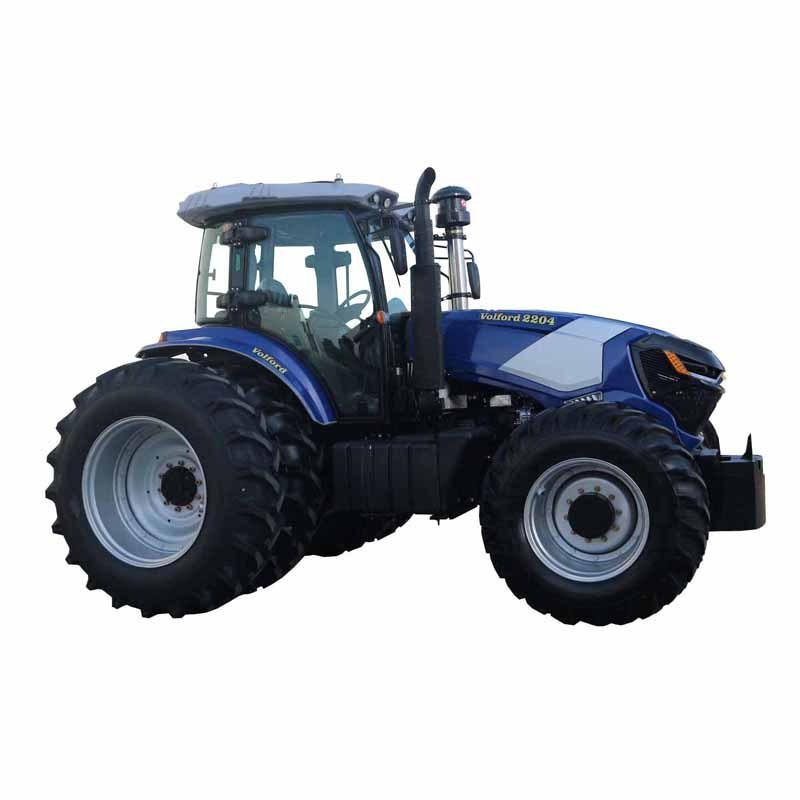

Volford 2204 220hp powerful YTO 6 cylinders diesel engine agriculture wheel tractors with good price
|
|
Luxury Cabin Interior |
|||
|
|
Driving Operation System |
|||
|
|
|
|
|
Front Hydraulic Steering | |||
|
|
Water Radiator Condensation System | |||
|
|
Shangchai 6 Cylinders Turbo Diesel Engine | |||
Engine Features:
- Low fuel consumption and long service life.
- Low operating cost, fast instantaneous response under load, strong power, and good adaptability to working conditions.
- Good reliability, high attendance rate, flexible vehicle layout.
- Mature mainstream, reliable and assured.
- Wide range of adaptation, good environmental adaptability.
- Best power and economy match.
-
Low maintenance costs, reducing user expenses.
|
|
Multiple Rear Power Take Off | |||
|
|
220HP Wheel Tractors Specs Sheet | |||
|
Item |
Data |
Item |
Data |
|
Model |
GT2204 |
Drive type |
4wd |
|
Starting |
electric |
Clutch |
dual stage |
|
Engine brand |
YTO/Yuchai/Deutz |
Engine cylinders |
6 |
|
Rated power/speed |
162/2300kw/rpm |
Engine air |
Turbo |
|
Shift |
16F+16R shuttle |
Front speed |
3.73-38.82km/h |
|
Rear speed |
2.55-25.34km/h |
Brake |
disc type |
|
Fuel tank |
325L |
Steering |
hydraulic steering |
|
Linkage |
three point |
Suspension type |
categoryIII |
|
PTO |
540/1000 760/1000 |
PTO spline size |
6 or 8 |
|
Front tyre |
16.9-30/16.9-28 |
Rear tyre |
20.8-42/20.8-38/18.4-42 |
|
Front ballast |
yes |
Rear ballast |
yes |
|
Swing draw bar |
yes |
PTO cover |
yes |
|
Air pump |
yes |
Roll bar |
selectable |
|
Sun-shade |
selectable |
Cabin |
luxury |
|
Min turning radius |
7.0m |
Hydraulic output |
3 or 4 groups |
|
Cover hood |
metal |
Overall dimensions |
5350*2200*3100mm |
|
Front wheel track |
1900mm |
Rear wheel track |
1700-2300mm |
|
Wheel base |
2780mm |
Ground clearance |
400mm |
|
Rated traction force |
35kn |
Weight |
8850kgs |
|
|
Volford Tractors Ready To Ship | |||
|
|
Volford Tractors Hot Selling Models | |||
|
|
Volford Tractors with Farm Implements | |||
|
|
About Us | |||
At present, we mainly make TY series, TE series, TN series, TB series, TD series, TF series, TC series chassis and gearshift wheel tractors. Full series have entered into mass production stage. Market and agents feedback very nice. Beijing Taishan Guotai Import Export Co., Ltd. is devoting to developing and produce farm wheel tractors from 25hp to 240hp. We are devoted to provide the most suitable tractors and farm equipment according to customers demand. Our company has invested in the construction of Shandong Volford Machinery Co.,Ltd. It was set up in 2015, whic cover about 100,000m2, 10 producing plants, 6 producing lines; the total employee is around 500 people. We have the perfect quality control system to ensure the top quality productions: Professional laboratory, complete test equipment, excellent technical team, including senior engineer 5, and technician 12, strict quality control process.
We have exported to the countries all over the world, such as Europe, Oceania, East Asia, Southeast Asia, and Africa and so on. We warmly welcome you to visit our factory, and all your comment and advice is highly appreciated.
|
|
