- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
OpticTrans
-
Use:
-
CATV
-
Warranty Time:
-
2
-
Name:
-
CATV Fiber Optic Node
-
Application:
-
HFC,FTTB,FTTP
-
Wavelength:
-
1110~1600nm
-
Frequency:
-
45/87~750/862MHz
-
Input optic power:
-
-5~+2dBm (AGC control)
-
RF Output ports:
-
2
-
RF Output level:
-
110dBuV
-
Optical connector:
-
SC/APC, FC/APC
-
Power supply:
-
AC 130~265 or AC 35~65
-
Size:
-
230x190x90 mm
Quick Details
-
Type:
-
Optical Receiver
-
Model Number:
-
OPR-2105GF
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
OpticTrans
-
Use:
-
CATV
-
Warranty Time:
-
2
-
Name:
-
CATV Fiber Optic Node
-
Application:
-
HFC,FTTB,FTTP
-
Wavelength:
-
1110~1600nm
-
Frequency:
-
45/87~750/862MHz
-
Input optic power:
-
-5~+2dBm (AGC control)
-
RF Output ports:
-
2
-
RF Output level:
-
110dBuV
-
Optical connector:
-
SC/APC, FC/APC
-
Power supply:
-
AC 130~265 or AC 35~65
-
Size:
-
230x190x90 mm
|
Optical parameter |
|
|
Optical wavelength |
1100~1600nm |
|
0ptical input power range |
-7~+2dBm |
|
Recommended range |
-3~+2dBm |
|
Return loss |
≥45dB |
|
Optical connector type |
SC/APC . FC/APC (specified by user) |
|
Optical fiber type |
Single Mode |
|
RF parameters |
|
|
Frequency range |
45/87~862MHz |
|
Flatness in band |
±0.75dB |
|
RF impedance |
75Ω |
|
In-stage attenuation |
0~15 dB adjustable |
|
In-stage Equalization |
0~15 dB adjustable |
|
Max output level |
≥105dBuV (AGC: -7~+2dBm) |
|
Slope |
0dB |
|
Return loss |
≥16dB |
|
Circuit Performance |
|
|
CNR |
≥51dB at -1dBm receiving |
|
CTB |
≤-65dB |
|
CSO 59channels |
≤-60dB |
|
General |
|
|
Power consumption |
AC 130~265 or AC 35~65 |
|
Operating temperature |
-40~60 °C |
|
Power consumption |
10W |

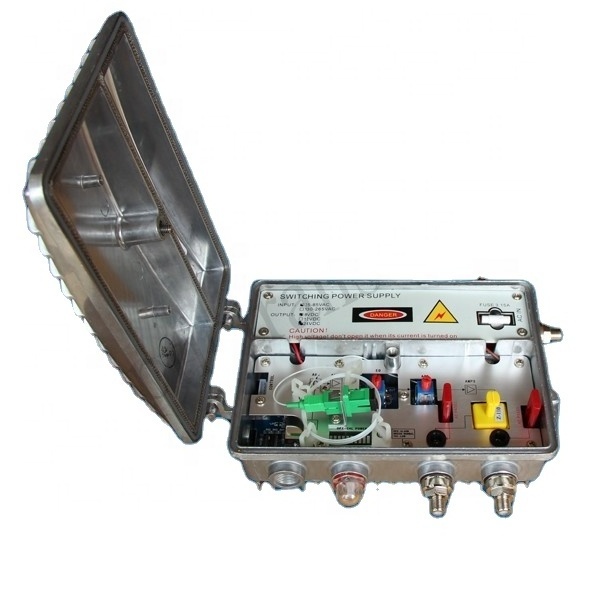

Product Picture Show
