High quality automatic PET Bottle tire shredders paper shredder scrap metal shredder For sale

High quality automatic PET Bottle tire shredders paper shredder scrap metal shredder For sale

FOB Reference Price: Get Latest Price

≥1 Sets

US $6000

≥2 Sets

US $5000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: KOOEN

Voltage:: 380V/50Hz/3Phase

Dimension(L*W*H):: according to model

Power (kW):: 55

Weight (T):: 3

Machine type:: Plastic Shredder

Name:: Waste Palstic Crushing

Keyword:: Strong Plastic Crusher

Crushing material:: General Plastic Materials

Final product:: Small Plastic Scraps

Blades material:: SKD-11

Color:: Customized Color

Shaft:: Double Spline

Motor brand:: ABB

Advantage:: Easy Opperation

Quick Details

Max.Production Capacity (kg/h):: 5000

Place of Origin:: Jiangsu, China

Production Capacity (kg/h):: 300 - 5000 kg/h

Brand Name:: KOOEN

Voltage:: 380V/50Hz/3Phase

Dimension(L*W*H):: according to model

Power (kW):: 55

Weight (T):: 3

Machine type:: Plastic Shredder

Name:: Waste Palstic Crushing

Keyword:: Strong Plastic Crusher

Crushing material:: General Plastic Materials

Final product:: Small Plastic Scraps

Blades material:: SKD-11

Color:: Customized Color

Shaft:: Double Spline

Motor brand:: ABB

Advantage:: Easy Opperation

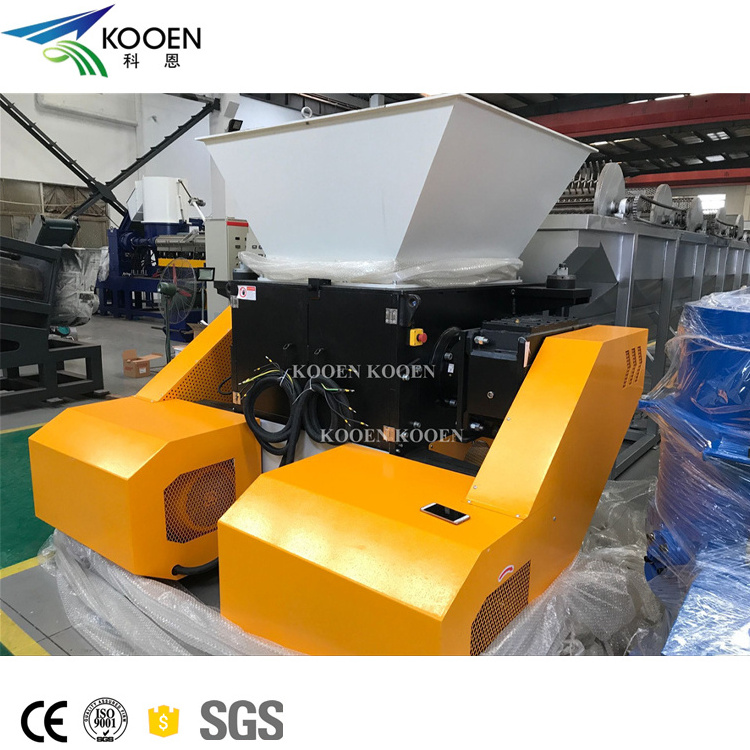

KES/KESB series of single shaft shredder machine

KES/KESB series of single shaft shredder parameters:

Model	Motor power (KW)	QTY. of moving blades	QTY. of fixed blades	Capacity (kg/hour)
KES-4060	30	34	4	300kg/h
KES-4080	37	46	4	500kg/h
KES-40100	45	58	4	1000kg/h
KES-40120	55	70	6	1500kg/h
KES-40150	75	88	6	2000kg/h
KESB-48120	90	102+33	3	1000-1200kg/h
KESB-48150	90	102+33	3	1500-2000kg/h
KESB-48200	55+55	177	4	3000kg/h
KESB-48250	55+55	102+33	4	4000kg/h

Application:
Suitable for shredding materials, such as plastic lumps, plastic bottle/containers, plastic pipes, plastic film (LDPE agriculture film, PP woven bags etc), wood, paper, aluminum cans, fiber, etc.
(Note, KESB is our Swing arm heavy model single shaft shredder machine with big shredding cavity, suitable shredding big sizematerials such wooden pallets, etc. )

More photos:

KES single shaft shredder machine (Hopper - Fixed model).

KES single shaft shredder machine (Hopper - moving model).

It not only can shredding conventional materials, but also be more suitable for shredding plastic pipes

KESB series swing-arm heavy duty shredder machine with big shredding arms.

Suitable shredding big size materials such wooden pallets, baled plastic films/bags, etc

Fix blade+ moving blade

Blade materials is SKD-11, from Japan

Main shaft

Main shaft through linear cutting method, ensure accuracy, it also through nitriding treatment, ensure hardness;

Screen structure

Different mesh structure and different mesh diameter are used for shredding different materials

Main motor

we use world famous brand motor

Gearbox
we use the best gearbox from China

Electric parts

we use world famous brand electric components

KESD/KED Series of double shaft shredder machine

KESD/KED Series of double shaft shredder parameters

Model	Motor power (KW)	Thickness of blade (mm)	Rotation speed (r/min)	Capacity （kg/hour)
KESD-2140	7.5	20	17	100-200kg/h
KESD-2180	7.5+7.5	20	15	300kg/h
KESD-3280	15+15	20	15	500kg/h
KESD-32100	22+22	40	15	1000kg/h
KESD-32120	30+30	40	15	1500-2000kg/h
KESD-40130	37+37	40	14	3000kg/h
KESD-40160	45+45	50	11	4000-5000kg/h
KED-800	30KW*2	78	6	500-800kg/h
KED-1000	37KW*2	96	6	1000kg/h
KED-1200	45KW*2	114	9	1500kg/h
KED-1500	55KW*2	142	9	2000kg/h

Application:
Applicable to Plastic containers/crate, Timber, Aluminum profile, Iron/metal, Home Appliance, Tire, Plastic film (LDPE agriculture film/ PP woven bags), etc
(Note: KED series two rotors shaft shredder is special designed by our company to shredding soft plastics, such LDPE agriculture films, LLDPE strength films, PP woven bags, jumbo bags, big bags, etc)

More photos:

KESD series double shaft shredder machine

KESD double shaft shredder machine main shaft with moving blade

Main shaft through nitriding treatment, ensure hardness;
Blade materials is SKD-11, from Japan

KED series two rotor shredder machine

Special designed by our company to shredding soft plastics, such LDPE agriculture films, LLDPE strength films, PP woven bags,
jumbo bags, big bags, etc

KED two rotors shredder machine main shaft with moving blade

Main shaft through linear cutting method, ensure accuracy, it also through nitriding treatment, ensure hardness;
Blade materials is SKD-11, from Japan

Main motor

we use world famous brand motor
