- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Power Value
-
Dimension(L*W*H):
-
510*490*570mm
-
Weight:
-
50
-
Rated power/speed:
-
9hp/3600rpm
-
BORE*STROKE:
-
86*70 mm
-
Engine speed:
-
1500/1800
-
Max output (kw):
-
6/6.5
-
Continuous output (kw):
-
5.7/6.3
-
Starting system:
-
Recoil or electric
-
Fuel tank capacity:
-
5.5L
-
Rube oil capacity:
-
1.65L
-
Fuel oil consumption rate(g/kw.h):
-
<=278
-
Dimension (mm):
-
510*490*570
Quick Details
-
Displacement:
-
406, 406 ml
-
Emission Standard:
-
Euro 2
-
Power:
-
9HP
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Power Value
-
Dimension(L*W*H):
-
510*490*570mm
-
Weight:
-
50
-
Rated power/speed:
-
9hp/3600rpm
-
BORE*STROKE:
-
86*70 mm
-
Engine speed:
-
1500/1800
-
Max output (kw):
-
6/6.5
-
Continuous output (kw):
-
5.7/6.3
-
Starting system:
-
Recoil or electric
-
Fuel tank capacity:
-
5.5L
-
Rube oil capacity:
-
1.65L
-
Fuel oil consumption rate(g/kw.h):
-
<=278
-
Dimension (mm):
-
510*490*570

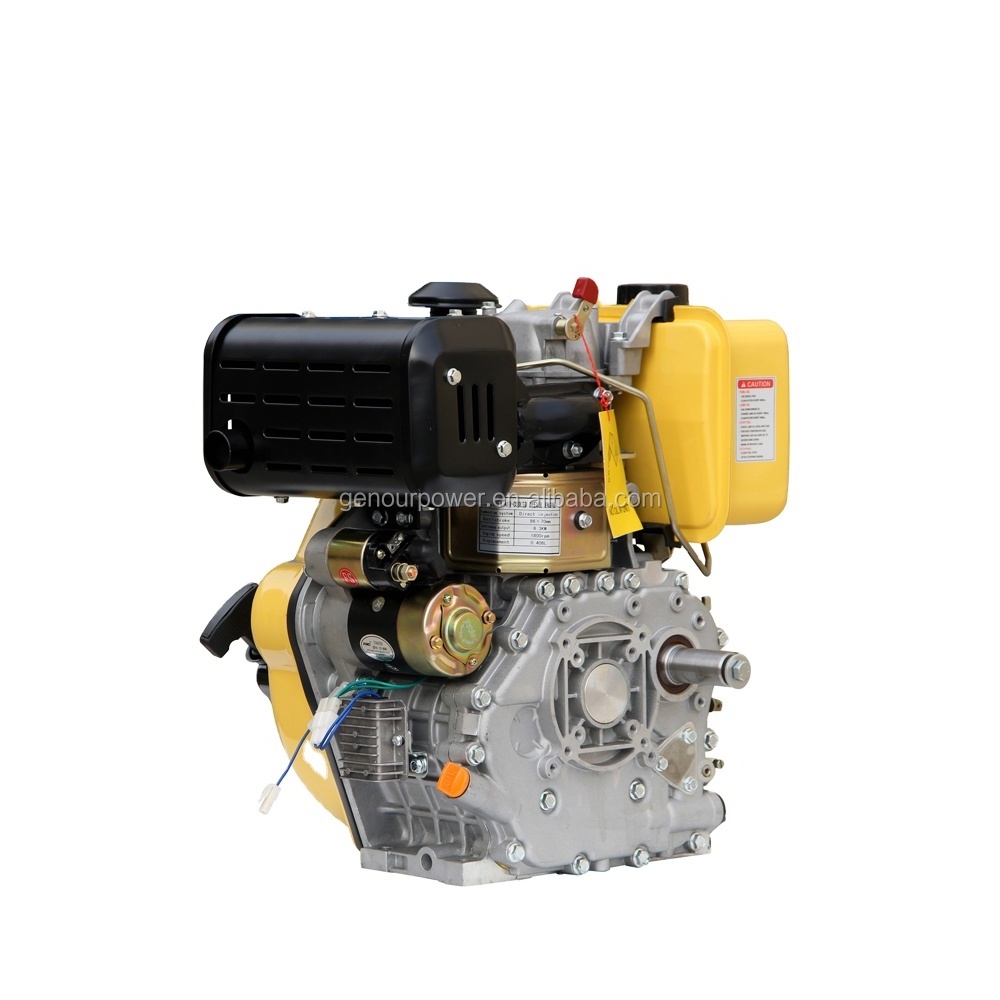

Taizhou factory directly sale 9 hp 1-cylinder 4-stroke air-cooled diesel engine
Product Description
| Model | HR170F | HR178F | HR186FA | HR186FS | HR188FA | |||||
| Type | Single-cylinder, vertical, 4-stroke air-cooled diesel engine | |||||||||
| Combustion System | Direct Injection | |||||||||
| Bore× Stroke(mm) | 70× 55 | 78× 62 | 86× 72 | 86× 70 | 88× 72 | |||||
| Displacement capacity(cc) | 211 | 296 | 411 | 406 | 438 | |||||
| Speed(rpm) | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 1500 | 1800 | 3000 | 3600 |
| Horse power(hp) | 4 | 6 | 10 | 9 | 12 | |||||
| Max. output(kw) | 2.8 | 3 | 4.1 | 4.4 | 6.5 | 7.1 | 6 | 6.5 | 7.5 | 8 |
| Rated output(kw) | 2.5 | 2.8 | 3.7 | 4 | 5.9 | 6.5 | 5.7 | 6.3 | 7 | 7.5 |
| Fuel | o#or-10#light diesel oil | |||||||||
| Fuel oil tank volume(l) | 2.5 | 3.5 | 5.5 | 5.5 | 5.5 | |||||
| Lubricatiom oil volume(l) | 0.75 | 1.1 | 1.65 | 1.65 | 1.65 | |||||
| Fuel oil consumption rate(g/kw. h) | 285 | ≤ 283 | ≤ 280 | ≤ 278 | ≤ 280 | |||||
| Starting system | Recoil or Electric | |||||||||
| PTO rotation direction | It is clockwise as viewing from the flywheel end | |||||||||
| Dimension(mm) | 420× 380× 470 | 480× 480× 520 | 510× 490× 570 | |||||||
| Net weight(kg) | 27 | 36 | 43 | 44 | 44 | |||||
