Quick Details
-
Brand Name:
-
AISEN
-
Voltage:
-
380V
-
Power:
-
2.2kw
-
Dimension(L*W*H):
-
680*600 * 750mm
-
Weight:
-
280
-
After-sales Service Provided:
-
Video support
-
packing details:
-
in wooden case
-
power:
-
2.2 kw
-
gross weight:
-
200kg
Quick Details
-
Place of Origin:
-
Hebei, China
-
Application:
-
industry sector
-
Production Capacity:
-
24 pcs/min
-
Brand Name:
-
AISEN
-
Voltage:
-
380V
-
Power:
-
2.2kw
-
Dimension(L*W*H):
-
680*600 * 750mm
-
Weight:
-
280
-
After-sales Service Provided:
-
Video support
-
packing details:
-
in wooden case
-
power:
-
2.2 kw
-
gross weight:
-
200kg

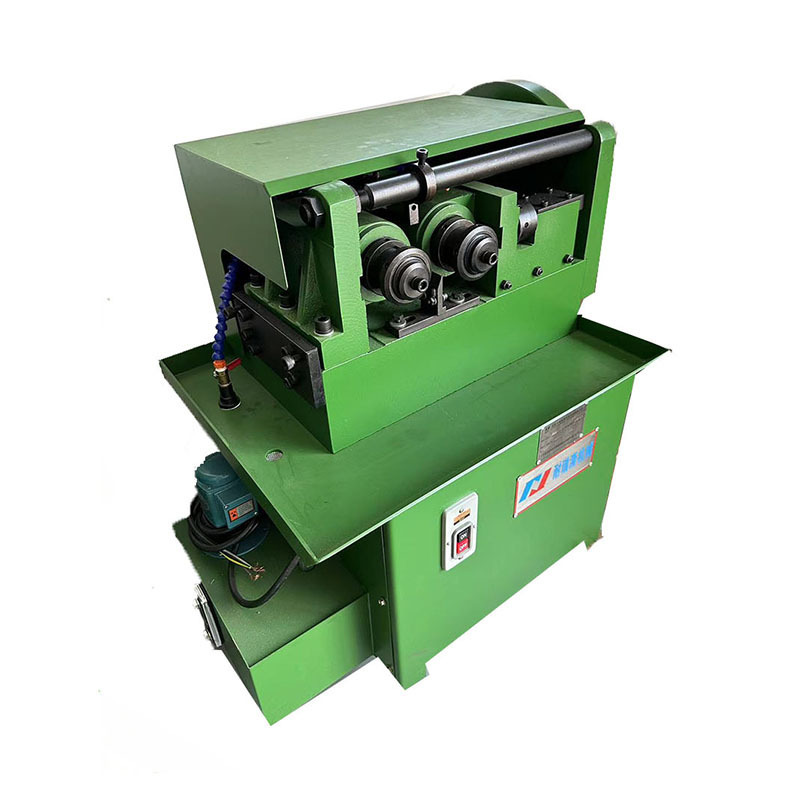

Z28-3T thread rolling machine
1. High precision with little cutting tolerance
2. High speed with automatic thread rolling machine
3. Machine has safety protection cover
4. Low power consumption
5. Stable performance and simple operation
2. High speed with automatic thread rolling machine
3. Machine has safety protection cover
4. Low power consumption
5. Stable performance and simple operation
|
Model
|
Z28-3T
|
|
|
|
|
Diameter range for threads
|
2-10mm
|
|
|
|
|
Range of pitch rolled
|
0.4-1.5p
|
|
|
|
|
Max length of the thread rolled
|
30mm
|
|
|
|
|
Rotation speed of rolling die
|
27rpm
|
|
|
|
|
Outside diameter
|
100mm
|
|
|
|
|
inside diameter
|
50.5mm
|
|
|
|
|
thickness of rolling die
|
30mm
|
|
|
|
|
Min.center distance between die spindles
|
90mm
|
|
|
|
|
Max.center distance between die spindles
|
130mm
|
|
|
|
|
Center distance from the lathe bed to rolling die
|
85mm
|
|
|
|
|
Machine motor
|
1HP
|
|
|
|
|
Weight
|
200kg
|
|
|
|
|
Overall dimension
|
680*600*750mm
|
|
|
|
|
Packing dimension
|
780*680*870mm
|
|
|
|
Q1. Are you factory or trading company ?
A1. We are factory of manufacturing .Welcome to visit our factory.
Q2. What is the delivery time ?
A2. Usually 5-15 days for machine
Q3. What is the warranty time for machine?
A3. Usually 12 months from Shipping date.
Q4. What is the payment term?
A4. T/T, Western Union, Moneygram, Alipay, PayPal.
30% as deposit, and 70% before shipping.
Q5. Is it possible to design and produce automatic loading & unloading devices?
A5. Yes, Engineer can design special auto feeding device according to your products.
But please provide the drawing of your products before that.
Q6. How will you solve problems that we face during using your machine?
A6. Please provide necessary videos and pictures that can show the problems, our engineers will check and give corresponding
solutions.
A1. We are factory of manufacturing .Welcome to visit our factory.
Q2. What is the delivery time ?
A2. Usually 5-15 days for machine
Q3. What is the warranty time for machine?
A3. Usually 12 months from Shipping date.
Q4. What is the payment term?
A4. T/T, Western Union, Moneygram, Alipay, PayPal.
30% as deposit, and 70% before shipping.
Q5. Is it possible to design and produce automatic loading & unloading devices?
A5. Yes, Engineer can design special auto feeding device according to your products.
But please provide the drawing of your products before that.
Q6. How will you solve problems that we face during using your machine?
A6. Please provide necessary videos and pictures that can show the problems, our engineers will check and give corresponding
solutions.
