- Product Details
- {{item.text}}
Quick Details
-
Warranty(Year):
-
5-Year
-
Color Temperature(CCT):
-
5700K
-
Input Voltage(V):
-
AC 100~277V 50-60HZ
-
Lamp Luminous Flux(lm):
-
13500-16000LM
-
Working Temperature(℃):
-
-35 - 55
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Rayborn
-
Model Number:
-
RB-HB-100WU2
-
Input Voltage:
-
AC 100~277V
-
LED Chip:
-
SMD3030 high brightness led chip
-
Power::
-
100W led high bay light
-
Angle:
-
60/90/120degree
-
color temperature:
-
3000K/5000K/6500K
-
Power Factor:
-
>0.98
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
140, 135-160lm/W
-
Lamp Body Material:
-
Aluminum
-
Application:
-
Warehouse
-
Warranty(Year):
-
5-Year
-
Color Temperature(CCT):
-
5700K
-
Input Voltage(V):
-
AC 100~277V 50-60HZ
-
Lamp Luminous Flux(lm):
-
13500-16000LM
-
Working Temperature(℃):
-
-35 - 55
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Rayborn
-
Model Number:
-
RB-HB-100WU2
-
Input Voltage:
-
AC 100~277V
-
LED Chip:
-
SMD3030 high brightness led chip
-
Power::
-
100W led high bay light
-
Angle:
-
60/90/120degree
-
color temperature:
-
3000K/5000K/6500K
-
Power Factor:
-
>0.98

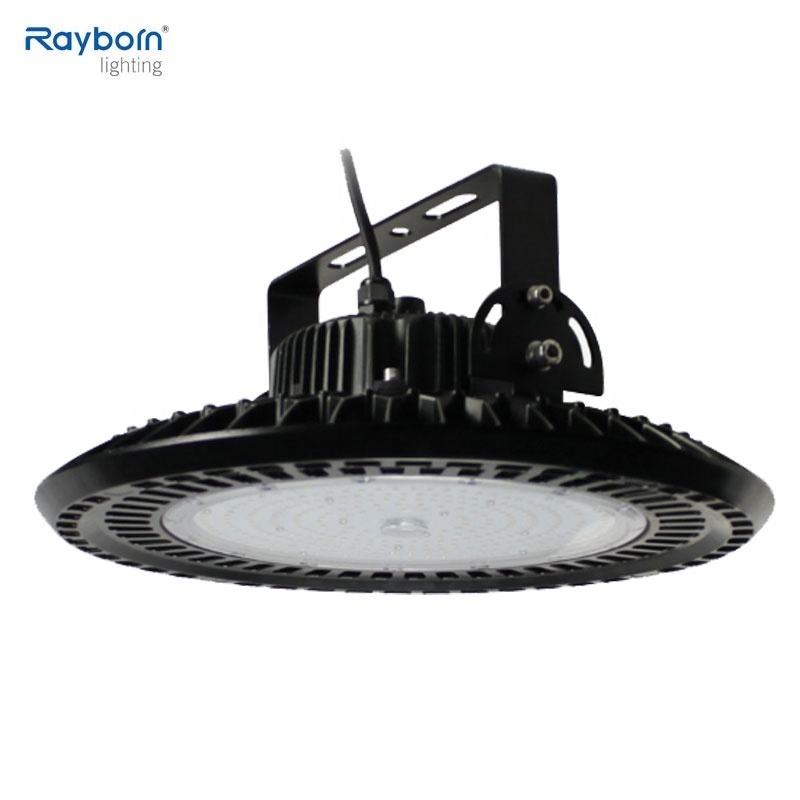

Industry Warehouse lighting 140lm/W 100w 200w 150w Bracket adjustable UFO high bay led for cold storage
Industrial LED High Bay Light With 5 Year Warranty (30-500W )
| 100W UFO LED HIGH BAY-90D | |||
| Item No.: | RB-HB-100WU2 | ||
| Input Voltage: | AC 100-277V | ||
| Freqency Range: | 50Hz~60Hz | ||
| LED Chip: | 3030 140lm Chip | ||
| Power: | 100W | ||
| Power Factor: | >0.98 | ||
| Power Efficiency: | >92% | ||
| Luminous Efficiency: | 135-160LM/W | ||
| LED Power | 100W | ||
| LED QTY: | 120pcs 3030SMD | ||
| LED Working Voltage: | DC 42~48V | ||
| System Consumption: | 103W | ||
| LIGHT Luminous Flux | Warm White | 12000LM | |
| Pure White | 12800LM | ||
| Cool White | 13000LM | ||
| Viewing Angle: | 120/90/60 degree | ||
| Center Luminance | Height 3M | 594LUX | |
| Height 4M | 335LUX | ||
| Height 5M | 214LUX | ||
| Illuminance Area | Height 3M | Dia.489CM points visible | |
| Height 4M | Dia.652CM points visible | ||
| Height 5M | Dia.815CM points visible | ||
| Illuminance Uniformity: | >0.6 | ||
| Color Temperature | Warm White | 3000K~3500K | |
| Pure White | 4000K~5500K | ||
| Cool White | 6000K~6500K | ||
| Color Rendering Index | Ra>80 | ||
| Light Distribution: | LED points visible | ||
| LED Junction Temperature: | ≤115℃ | ||
| Working Temperature: | –40℃~50℃ | ||
| IP Grade: | IP65 | ||
| Working Life-span: | 50000 H | ||
| Power Line: | 1.0 mm three line | ||
| Connect Wire | Brown | L | |
| Blue | N | ||
| Yellow / Green | G | ||
| Certificate | CE/ROHS | ||
| Size: | 278*H170.9 | ||
| Net Weight: | 3.4KG | ||
| Packaging | 32*32*20cm | ||
LED High bay Lamp Features:
1. UFO design LED High Bay light ,60W/100W/150W/200W all are avaliable ;
2. Lumileds ,OSRAM ,Epistar led chip all are available ;
3. The luminous efficacy of whole lamp can reach 135-160LM/W with high brightness ;
4. LED High bay light are adopted Metal plate pure aluminum heat sink and heat conduction by copper cylinder ;
5. Difference beam angle 60/90/120 degree distribution design as optional ;
6. Reflective rate >90%, CRI is more high,and Lighting is more comfortable ;
7. 304 Stainless steel,high quality, easy install,good rust prevention and durable ;
8. The welding spot high temperature of LED Chip is 70ºC, the high temperature of heat sink is 55 ºC,with excellent heat dissipation capacity and low Light decay ,greatly improves the life of lamps ;
9. Installation ways :rings with chains or other installation accessories ;
10. Waterproof IP65 design ,widely use for indoor and outdoor ,suitable for warehouse ,industrial ,cold storage ,steel workshop etc .
UFO LED High Bay Competitive Advantage:
1. CE & RoHS & TUV&SAA approved, Quality Guaranteed
2. Imported original chip, superior light source
3. OEM & ODM welcome, independent R&D ability, patent design.
4. Fast delivery, 2-15 workdays depends on order quantity after payment confirmed
5. Reliable quality & credit, 5 years warranty and 50.000 hours lifespan
1. Workshop and factory lighting.
2. Shopping mall lighting.
3. Museum, stadium and gymnasium lighting.
4. Highway toll station and gas station lighting.
5. Warehouse and smeltery lighting.
All LED lights will be over 24 hours aging tested, inspection department will test 100% products including light up test , power wattage test , highVoltage test , waterproof test , ground connection test and so on, defective rate is controlled less than 0.1%. Quality is ensured, you can be assured.
Shipment & Packing of LED High Bay light :
Our individual package maximize protecting the LED lights from transfer damage in transit.
1. Label on backside of each LED lights and your required label is available.
2. One piece led Light per carton.
3. This is our regular packing ,if you need,we can also custom color packing and put your logo on it.
We has a group of professional technical R & D team, who can provide the OEM / ODM services according to customers and LED lighting solutions,our factory has passed the authentications of ISO9001:2000,CE, FCC, ROSH ,TUV authentication.
As a big led manufacturer with years of experiences,we Rayborn led lghting would very like to be your reliable lighting specialist. We ensure that:
1.Offering you the lowest price with good quality led lights.
2.Delivery the goods to you with speed and precision wherever you are.
3.Reply your inquiry and request in 8 hours during workdays.
4.Keep on researching and developing news prodcuts to satisfy your various needs.
Payment terms :
1. Payment: T/T, L/C at sight, Western Union ,Paypal available
2. Samples can be available within 5-7 working days; Order: 10-20Days
3. Shipping freight is quoted under your requests
4. Shipping port:Shenzhen , China
5. Discounts are offered based on order quantities
