Quick Details
-
Model Number:
-
YJ-30L
-
Place of Origin:
-
Henan, China
-
Application:
-
hospital, clinic
-
Size:
-
30L
-
Temperature control range:
-
10-300℃
-
Material:
-
Metal, Steel, stainless steel
-
Color:
-
customerized
-
Packing:
-
ctn
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Brand Name:
-
forermed
-
Model Number:
-
YJ-30L
-
Place of Origin:
-
Henan, China
-
Application:
-
hospital, clinic
-
Size:
-
30L
-
Temperature control range:
-
10-300℃
-
Material:
-
Metal, Steel, stainless steel
-
Color:
-
customerized
-
Packing:
-
ctn
Product Description
Introduction

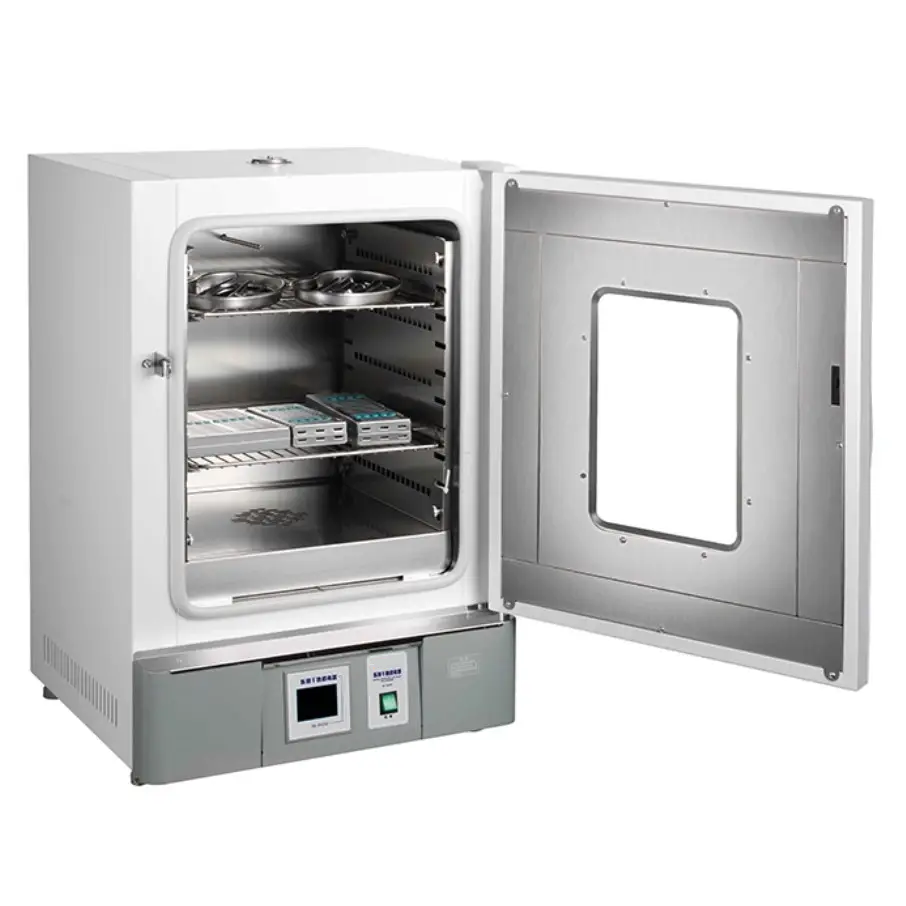

New Thermodisinfector Dryer is widely used for drying, baking, melting, sterilizing and curing in health and medical equipments etc.
Characteristics
1. High-quality cold rolling steel case with electrostatic spraying surface ensures the aesthetics and longevity of the product.
2. Favin stainless steel working room; foursquare semicircle transition; adjustable shelf, airduct lateral plate and bottom heater covering are knock-down construction, which is convenient for cleaning.
3. PID digital intelligent temperature controller with function of temperature setting, time dual screen displaying, over-temperature alarming and timing.
4. The heater and fan are reasonably constructed by placing them under the working room; circulation fan will be closed automatically when it reaches the target temperature to prevent the powdery sample from blowing away.
5. Independent temperature limiter alarm, which can realize auto-switch with temperature controller; over temperature alarm.
6. Air-tightness adjustable buckle lock door to ensure good sealability. Optional accessories:
a. RS485/232 interface, which can be connected with computer by principal computer software to control temperature; convenient to control stopping switch.
b. Micro type printer, which could continuously print temperature record of the running machine.
c. Independent power cut alarm system to help the user process sample immediately.
d. Independent temperature limit alarm system; auto-break-off when over temperature limit
3. PID digital intelligent temperature controller with function of temperature setting, time dual screen displaying, over-temperature alarming and timing.
4. The heater and fan are reasonably constructed by placing them under the working room; circulation fan will be closed automatically when it reaches the target temperature to prevent the powdery sample from blowing away.
5. Independent temperature limiter alarm, which can realize auto-switch with temperature controller; over temperature alarm.
6. Air-tightness adjustable buckle lock door to ensure good sealability. Optional accessories:
a. RS485/232 interface, which can be connected with computer by principal computer software to control temperature; convenient to control stopping switch.
b. Micro type printer, which could continuously print temperature record of the running machine.
c. Independent power cut alarm system to help the user process sample immediately.
d. Independent temperature limit alarm system; auto-break-off when over temperature limit
Technical specifications
|
Model
|
30L
|
45L
|
75L
|
125L
|
230L
|
||||
|
Supply voltage
|
AC220v±10% 50±1Hz
|
|
|
|
|
||||
|
Consumed power(w)
|
800W
|
1200W
|
1600W
|
2300W
|
3000W
|
||||
|
Tem. range
|
RT+10~300℃
|
|
|
|
|
||||
|
Tem. fluctuation
|
±1.0℃
|
|
|
|
|
||||
|
Working room size
W*L*H(mm) |
310×310×310
|
350*×350×350
|
400×360×450
|
500×450×550
|
600×500×750
|
||||
|
Overall product size
W*L*H (mm) |
460×510×695
|
500×550×735
|
550×550×840
|
636×680×915
|
730×670×1220
|
||||
|
Shelf load
|
15/kg
|
|
|
|
|
||||
|
net weight(kg)
|
39
|
42
|
47
|
56
|
70
|
||||
|
Number of Shelf
|
2
|
|
|
|
|
||||
Working conditions
The drying oven work under the following conditions:
1. Temperature ranges between 5~40℃;
2. Relative humidity less than 85% RH;
3. Power: voltage 220±10v, frequency50±1Hz;
4. No succession and corrosive gas surround the oven.
1. Temperature ranges between 5~40℃;
2. Relative humidity less than 85% RH;
3. Power: voltage 220±10v, frequency50±1Hz;
4. No succession and corrosive gas surround the oven.
