Quick Details
-
Brand Name:
-
coda
-
Model Number:
-
CDT-22B
-
Measuring range:
-
0-100%(m3/m3)
-
Output signal:
-
4-20mA ,0-5V,0-2V, RS485 optional
-
Power supply:
-
5VDC, 12-24VDC
-
Accuracy:
-
±2%
-
Response Time:
-
<1s
-
Probe material:
-
316L stainless steel
-
Housing material:
-
ABS
-
IP GRADE:
-
IP68
Quick Details
-
Type:
-
Soil Moisture Sensor
-
Warranty:
-
12 MONTHS
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
coda
-
Model Number:
-
CDT-22B
-
Measuring range:
-
0-100%(m3/m3)
-
Output signal:
-
4-20mA ,0-5V,0-2V, RS485 optional
-
Power supply:
-
5VDC, 12-24VDC
-
Accuracy:
-
±2%
-
Response Time:
-
<1s
-
Probe material:
-
316L stainless steel
-
Housing material:
-
ABS
-
IP GRADE:
-
IP68
|
Item
|
Technical Specification
|
|
|
|
|
Moisture
|
Temperature
|
|
|
Range
|
0-100%（m3/m3）
|
-30℃-+70℃
|
|
|
Accuracy
|
±3%(0-50%)
|
±0.3℃
|
|
|
Output Signal
|
4-20mA ,0-5V,0-2V,RS485 optional
|
|
|
|
Response Time
|
<1s
|
|
|
|
Supply
|
5VDC,12-24VDC
|
|
|
|

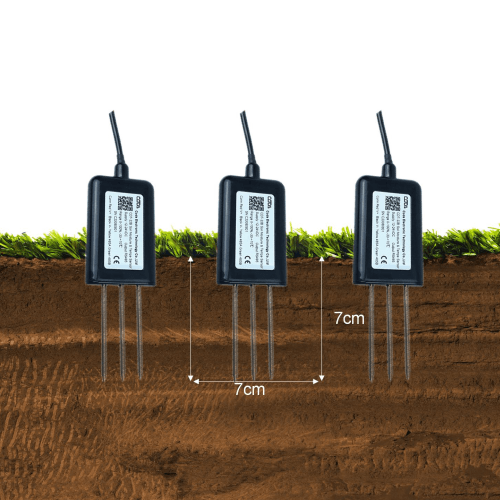

Effective measurement area
|
With the center of the probe diameter is 70mm, high 70mm cylinder
|
|
|
|
Housing
|
ABS
|
|
|
|
Dimensions
|
71*45*16mm( probe:2* Ø3*55mm,1*Ø4*55mm)
|
|
|
|
Operating Temperature
|
-40℃-+80℃
|
|
|
|
Ingress Protection
|
IP68
|
|
|
|
Storage
|
10-60℃@20%-90%RH
|
|
|
|
Probe material
|
316L stainless steel
|
|
|
