Quick Details
-
Max. Loading Capacity:
-
0.1~5L
-
Weight (KG):
-
1 KG
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HXCHEM
-
Voltage:
-
220,380V
-
Dimension(L*W*H):
-
As designed
-
Power (kW):
-
0.1 kW
-
Marketing Type:
-
Hot Product 2023
-
Core Components:
-
impeller
-
Supplier:
-
factory
-
Max loading capacity:
-
100ml~10L
-
Usage:
-
Mixing Proucts
-
Stirrer type:
-
Non-standard Agitator Impeller
-
Speed:
-
150-300/300-650RPM
-
Origin:
-
HXCHEM
-
Product name:
-
Helical Ribbon impeller
-
Mixing type:
-
Scraper Mixer Homogenizer Disperser
Quick Details
-
Barrel Volume (L):
-
1-5L
-
Max. Loading Volume (L):
-
10 L
-
Range of Spindle Speed(r.p.m):
-
50 - 2500 r.p.m
-
Max. Loading Capacity:
-
0.1~5L
-
Weight (KG):
-
1 KG
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HXCHEM
-
Voltage:
-
220,380V
-
Dimension(L*W*H):
-
As designed
-
Power (kW):
-
0.1 kW
-
Marketing Type:
-
Hot Product 2023
-
Core Components:
-
impeller
-
Supplier:
-
factory
-
Max loading capacity:
-
100ml~10L
-
Usage:
-
Mixing Proucts
-
Stirrer type:
-
Non-standard Agitator Impeller
-
Speed:
-
150-300/300-650RPM
-
Origin:
-
HXCHEM
-
Product name:
-
Helical Ribbon impeller
-
Mixing type:
-
Scraper Mixer Homogenizer Disperser
Product Description

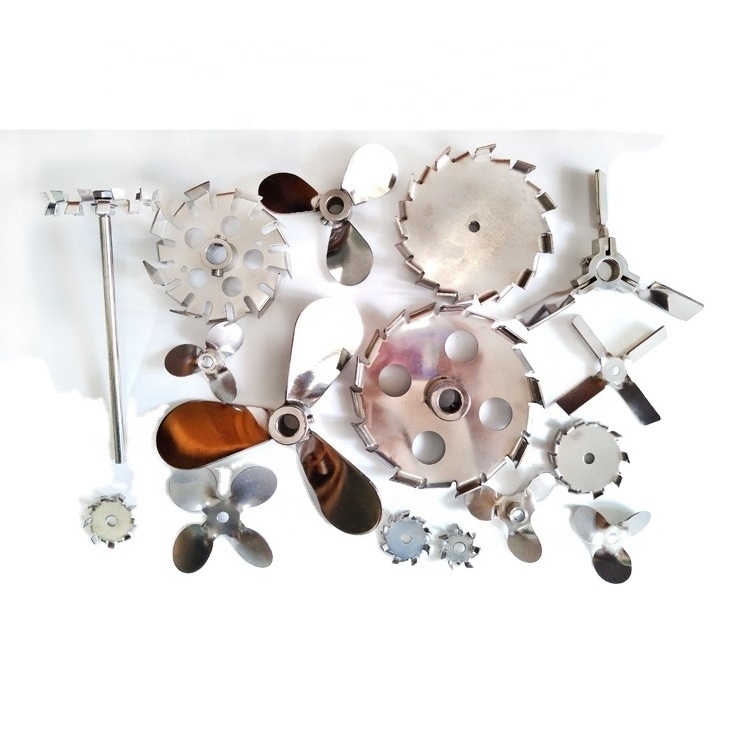

Stainless Steel lab Mixing Marine propellers Three Impellers Mixing blades Non-standard Agitator Impeller
Lab scale agitator impeller
Diameter：4cm- 12cm
Rod aixs diameter: 8mm, 10mm
Length: 300mm-600mm
Material: SS304 or SS316
Customize as client requirement
Details Images
Quick Selection
|
Type
|
Mixing speed
|
Application
|
Feature
|
|
Marine propeller
Broad blade Propeller
|
100-500r/min
|
Low viscosity
|
Low shear, low energy consumption
Strong circulation
High-speed operation
|
|
Paddle type
* Straight blade
* Pitched blade
* Curved blade
|
50-200r/min
|
Medium viscosity
|
Close to the tank wall
Heavy duty, slow operation
High energy consumption
Inefficient mixing
|
|
Turbine type
* Straight blade
* Pitched blade
* Curved blade
|
50-350 r/min
|
Low viscosity
Medium viscosity
|
Medium shear and cyclic
Medium speed operation
Suitable for medium equipment
|
|
Disk turbine
(Flat blade, pinched blade,
curved blade, )
|
100-350 r/min
|
Low viscosity
Medium viscosity
|
Strong shear, gas dispersion
Medium speed operation
High energy consumption
|
|
Frame type
Anchor type
Helical Blade
|
20-150 r/min
|
High viscosity
|
Low shear and speed
Strong cycle ability
High energy consumption
|
|
Self inducing type
Gas inducing type
|
200-500 r/min
|
Liquid-gas mixing
|
Strong self-inducing capacity
High gas consumption
High speed operation
|
Recommend Products
Customization
Customized Specifications
If there has special process requires, HXHCEM will also customize for you!
Pls list your basis process parameters like follows:
1. Reactor volume
2. Operating Temperature
3. Operating Pressure
4. Reactor Material / contacting components material
5. Agitator type, and the Mixing Speed, motor power request?
6. With heating device or not？ Heating type？
7. Internal cooling coil or not, exchange area?
8. Lift or tilt function?（For lab & pilot application）
9. Your other requests
......Contact us！
We like to help you to accomplish your plans.
If there has special process requires, HXHCEM will also customize for you!
Pls list your basis process parameters like follows:
1. Reactor volume
2. Operating Temperature
3. Operating Pressure
4. Reactor Material / contacting components material
5. Agitator type, and the Mixing Speed, motor power request?
6. With heating device or not？ Heating type？
7. Internal cooling coil or not, exchange area?
8. Lift or tilt function?（For lab & pilot application）
9. Your other requests
......Contact us！
We like to help you to accomplish your plans.
