Quick Details
-
Output Speed:
-
1~3000
-
Warranty:
-
1year
-
Weight (KG):
-
6 KG
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Shenli
-
Product name:
-
Travelling Reducer
-
Application:
-
Industry
-
Material:
-
Rubber
-
Type:
-
Carrying Roller
-
Feature:
-
High Wear Resistance
-
Description:
-
Power Steering
-
Certification:
-
ISO9001
-
Advantage:
-
Long Working Life
-
Structure:
-
Speed Adjustable
-
After Warranty Service:
-
Online support
Quick Details
-
Gearing Arrangement:
-
Helical
-
Output Torque:
-
0.64~5Nm
-
Input Speed:
-
3000rpm
-
Output Speed:
-
1~3000
-
Warranty:
-
1year
-
Weight (KG):
-
6 KG
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Shenli
-
Product name:
-
Travelling Reducer
-
Application:
-
Industry
-
Material:
-
Rubber
-
Type:
-
Carrying Roller
-
Feature:
-
High Wear Resistance
-
Description:
-
Power Steering
-
Certification:
-
ISO9001
-
Advantage:
-
Long Working Life
-
Structure:
-
Speed Adjustable
-
After Warranty Service:
-
Online support

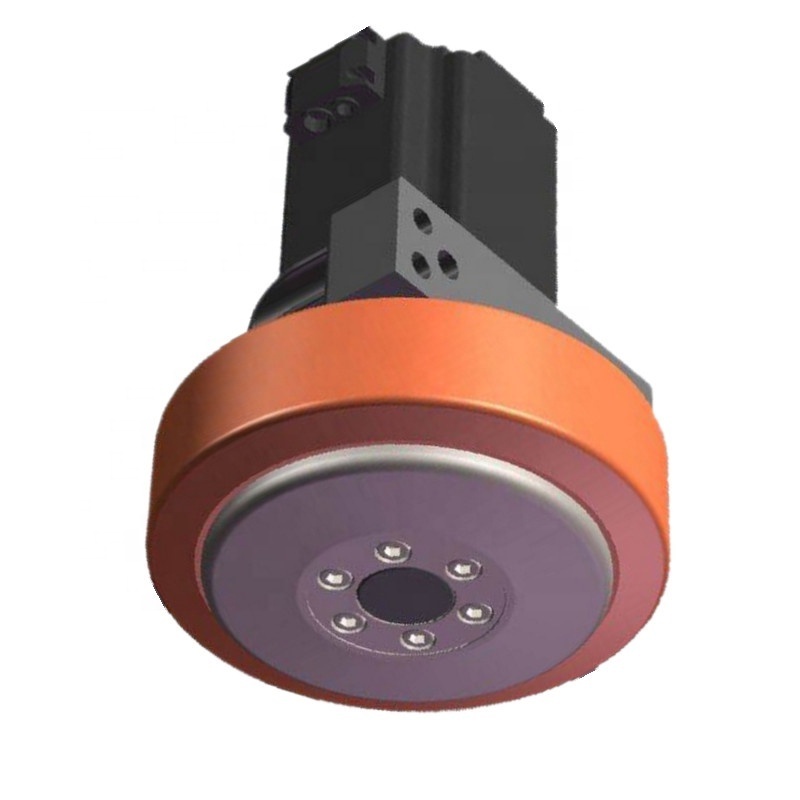

High Torque High Precision 24 Volt Electric Arm Shaft Mount Truck Wheel
| Traction motor parameters | Motor Power | Motor Voltage | Motor speed | Motor current | Rated torque | IP Grade | Encoder | ||
| Type | DC | W | V | RPM | A | Nm | IP | Magnetic braiding | Resolution ratio |
| Servo Motor | 200 | 48 | 3000 | 5.1 | 0.64 | 65 | Increment | 1024 | |
| Traction reducer parameters | Type | X | Planetary reducer | ||||||
| Reducer speed ratio | i | 10 | 12 | 16 | 20 | 35 | 50 | 70 | |
| Reducer torque | Nm | 40 | 90 | 100 | 105 | 110 | 110 | 70 | |
| Polyurethane bearing | Kg | 400 | |||||||
| Rubber bearing | Kg | 350 | |||||||
| Maximum speed | M/min | 150.7 | 125.6 | 94.2 | 75.4 | 43.1 | 30.1 | 21.5 | |
| Traction | N | 80 | 96 | 128 | 160 | 280 | 400 | 560 | |
| Traction weight | reference | 152 | 182.4 | 243.2 | 304 | 532 | 706 | 1064 | |
| Another | Reducer lubrication | lubricant | (-20°~200°) | ||||||
| Dead-weight | Kg | About4.8 | |||||||
