- Product Details
- {{item.text}}
Quick Details
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
China
-
Brand Name:
-
Faith, laser max
-
Dimension(L*W*H):
-
148CM*85CM*86CM
-
Weight (KG):
-
320
-
Mode of Operation:
-
Co2
-
Configuration:
-
Co2
-
Function:
-
Cutting Engraving Non-metal Materials
-
Laser power:
-
50W/60W/80W/100W
-
Control system:
-
Ruida 6442S Control System
-
Keywords:
-
Co2 Laser Cuting Machine
-
Laser tube type:
-
Co2 Glass Sealed Laser Tube
-
Cooling system:
-
Water Cooling Device
-
Model:
-
1080
-
Product name:
-
C02 Laser Engraving Cutting Machine
Quick Details
-
Engraving Area:
-
600*900mm
-
Laser Type:
-
CO2
-
Engraving Speed:
-
0-600mm/s
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
China
-
Brand Name:
-
Faith, laser max
-
Dimension(L*W*H):
-
148CM*85CM*86CM
-
Weight (KG):
-
320
-
Mode of Operation:
-
Co2
-
Configuration:
-
Co2
-
Function:
-
Cutting Engraving Non-metal Materials
-
Laser power:
-
50W/60W/80W/100W
-
Control system:
-
Ruida 6442S Control System
-
Keywords:
-
Co2 Laser Cuting Machine
-
Laser tube type:
-
Co2 Glass Sealed Laser Tube
-
Cooling system:
-
Water Cooling Device
-
Model:
-
1080
-
Product name:
-
C02 Laser Engraving Cutting Machine

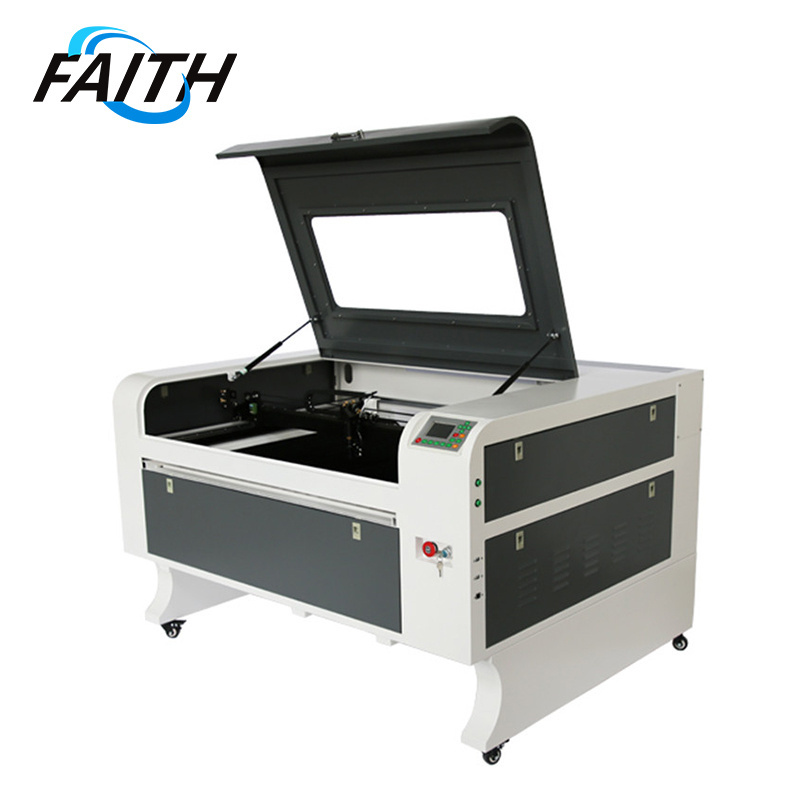

Product Overview
Non-metallic engraving and cutting
FS-1080S 100W
CO2 laser cutting machine
CO2 laser cutting machine
Product Features:
1. Professional Ruida 6442S laser control system,precise,stable and fast.
2. Brand laser tube.good spot quality,stable output power,good engraving effect.
3. With universal wheel bracket,easy to move.
4. USB2.0 interface,support offline work.
5. Color LCD display,support multi-language operation.Electric UP&Down platform,convenient for customers to place thick materials.
6. XY three-axis linear guide,higher precision and more stable performance.
7. Electric UP&Down platform,convenient for customers to place thick materials.
1. Professional Ruida 6442S laser control system,precise,stable and fast.
2. Brand laser tube.good spot quality,stable output power,good engraving effect.
3. With universal wheel bracket,easy to move.
4. USB2.0 interface,support offline work.
5. Color LCD display,support multi-language operation.Electric UP&Down platform,convenient for customers to place thick materials.
6. XY three-axis linear guide,higher precision and more stable performance.
7. Electric UP&Down platform,convenient for customers to place thick materials.
Product Parameters
|
No
|
Item
|
Data
|
|
1
|
Model
|
Laser Cutting Machine LM1080S
|
|
2
|
Colour
|
White and Gray
|
|
3
|
Working Table Size
|
1000mm *800mm
|
|
4
|
Laser Tube brand
|
EFR or Reci can choose
|
|
5
|
Warranty of Laser tube
|
Global Warranty
|
|
6
|
Control System
|
Ruida 6442S (English/Russian/Spanish/France/ Portuguese)
|
|
7
|
Working Table
|
Honeycomb (Cutting blade table optional)
|
|
8
|
Long material pass through front and back
|
Support
|
|
9
|
X axis
|
Square linear guides
|
|
10
|
Y axis
|
Double square linear guides
|
|
11
|
Laser Power
|
80w /100w/130w/150w
|
|
12
|
Z axis adjust height
|
180 mm
|
|
13
|
Cutting Speed
|
0-100mm/s
|
|
14
|
Engraving Speed
|
0-800mm/s
|
|
15
|
Resolution
|
±0.05mm/1000DPI
|
|
16
|
Minimum Letter
|
English 1.5×1.5mm (Chinese Characters 2*2mm)
|
|
17
|
Support Files
|
BMP,HPGL,PLT,DST and AI
|
|
18
|
Interface
|
USB2.0
|
|
19
|
Software
|
RD works
|
|
20
|
Computer system
|
Windows XP/win7/ win8/win10
|
|
21
|
Motor
|
57 Leadshine Stepper Motor
|
|
22
|
Power Voltage
|
AC 110 or 220V±10%,50-60Hz
|
|
23
|
Power cable
|
European Type/China Type/America Type/UK Type
|
|
24
|
Working Environment
|
0-45℃(temperature) 5-95%(humidity)
|
|
25
|
Power consumption
|
<2000W (Total)
|
|
26
|
Position system
|
Red-light pointer
|
|
27
|
Cooling way
|
Water cooling and protection system
|
|
28
|
Gross Weight
|
280KG
|
|
29
|
Package
|
Standard plywood case for export
|
|
30
|
Warranty
|
All life free tech support, one year warranty, except consumables
|
Optional Part
Appliaction
Advertising signs,craft gifts,crystal jewelry,paper cutting technology,architectural models,
lighting,printing and packaging, electronic appliances, clothing bags,
photo frame production and other industries.
Company introduction
Shenyang Faith Technology Co., Ltd.is a high-tech enterprise, which integrates independent research and development, production,sales and service. It specializes in providing laser marking machine technology and traceable system solutions. The company was founded in 2010 with a 30-person team and a 500㎡ production workshop. After more than 10 years of unremitting efforts, by early
2020, it has developed into an excellent team of 300 people and a 2500㎡ production workshop.
Packing & Delivery
FAQ
Q1.What are the primary products of your company?
A1 .Our primary products include laser marking machine, inkjet printer machine，paging machine.
Q2.
Is
CO2 laser cutting machine
easy to use?
A1 .Our primary products include laser marking machine, inkjet printer machine，paging machine.
A2.Of course,
it
has a very convenient operating system, easy to use!
Q4.
What if the machine is damaged or faulty?
A4.
We have a two-year warranty period, so that customers can rest assured that,there is no worry about using!
Q5.Is there any staff to guide the use？
A5.
We have professional engineers to guide customers to use products 24
hours a day!
Q7.How long is the delivery time?
A7.The products will be delivered to you within one week after the order is confirmed.
A7.The products will be delivered to you within one week after the order is confirmed.
