Quick Details
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
HGTECH
-
Single Pulse Energy:
-
90J
-
Wavelength:
-
Wavelength
-
Dimensions:
-
OEM
-
Weight (KG):
-
75 KG
-
Marketing Type:
-
Hot Product 2024
-
Product name:
-
Hot Sale HGTECH Laser Cutting Welding Cleaning Machines 4 in 1 Laser W
-
Application:
-
Welding Products
-
Laser power:
-
1000/1500/2000W
-
Application material:
-
Metal Stainless Steel Aluminum
-
Function:
-
Metal Part Laser Welding
-
Laser source:
-
RAYCUS IPG
-
Advantage:
-
Welding Precision
-
Color:
-
White
-
Feature:
-
Quick Speed High Accuracy
Quick Details
-
Max. Output Power:
-
3000w
-
Usage:
-
Cutting welding Cleaning, Fiber Laser Welding
-
Laser Source Brand:
-
RAYCUS
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
HGTECH
-
Single Pulse Energy:
-
90J
-
Wavelength:
-
Wavelength
-
Dimensions:
-
OEM
-
Weight (KG):
-
75 KG
-
Marketing Type:
-
Hot Product 2024
-
Product name:
-
Hot Sale HGTECH Laser Cutting Welding Cleaning Machines 4 in 1 Laser W
-
Application:
-
Welding Products
-
Laser power:
-
1000/1500/2000W
-
Application material:
-
Metal Stainless Steel Aluminum
-
Function:
-
Metal Part Laser Welding
-
Laser source:
-
RAYCUS IPG
-
Advantage:
-
Welding Precision
-
Color:
-
White
-
Feature:
-
Quick Speed High Accuracy

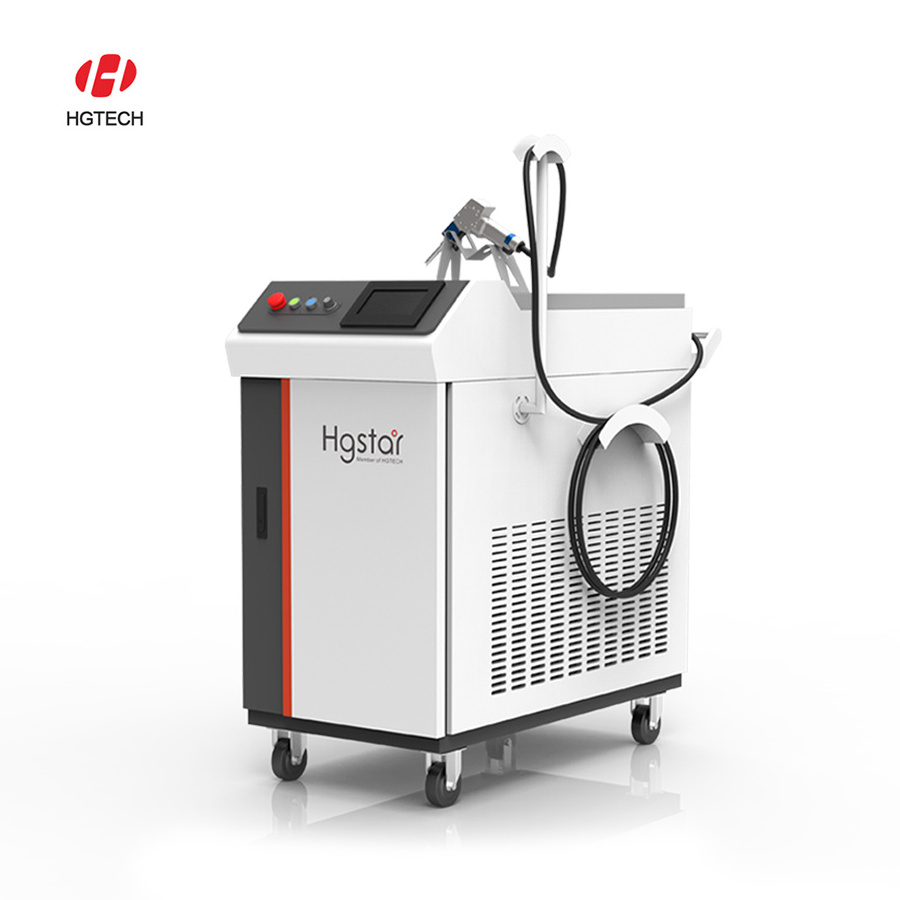

Hot Sale HGTECH Laser Cutting Welding Cleaning Machines 4 in 1 Laser Welding Machine For Metal Material In China
As the world's leading technology, laser welding has become more and more popular with its advantages of high efficiency, high precision, and environmental protection. The handheld laser welding product, which integrates four welding functions, has caused a sensation in the welding industry.
The 4 in 1 handheld laser welding product has a small size, lightweight, and easy to operate. It can realize welding, spot welding, drilling, and wire feeding welding in different welding environments, such as large welded parts or complex-shaped products. It adopts high-quality laser source, which can achieve high efficiency and precision welding, and has the advantages of low energy consumption, no consumables, and low cost.
The handheld laser welding product also has a variety of advantages. Its high flexibility adapts to various welding materials, including stainless steel, iron, aluminum, and copper, and its welding seam is smooth and flat. Moreover, it does not cause any deformation or pollution to the workpiece, and the welding depth is adjustable and controllable. It is suitable for welding various parts with complex shapes and achieving customization and personalization.
| Model | HW-500 | HW-1000 | HW-1500 | HW-2000 |
| Maximum laser power | 500 | 1000 | 1500 | 2000 |
| Laser frequency | 50-5000HZ | 50-5000HZ | 50-5000HZ | 50-5000HZ |
| Power adjustment range | 10-100% | 10-100% | 10-100% | 10-100% |
| Power instability | <3% | <3% | <3% | <3% |
| Welding penetration (stainless steel) | 1.2mm | 2.0mm | 2.5mm | 3.0mm |
| Welding penetration (carbon steel) | 0.8mm | 1.5mm | 2.5mm | 3.0mm |
| Welding penetration (aluminum steel) | 1mm | 2mm | 3mm | 4mm |
| Swing welding spot | Solder spot 2-4mm | Solder spot 2-4mm | Solder spot 2-4mm | Solder spot 2-4mm |
| Input voltage | 220V/50HZ | 220V/50HZ | 380V/50HZ | 380V/50HZ |
| Total power | ≤3KW | ≤3KW | ≤3KW | ≤3KW |
| Automatic wire feeding | Optiona | Optional | Optiona | Optional |
Applications:
Micro Laser Welder Price is mainly use in jewelry, eyeglasses frame, dental, Night-Guards relines and Repairs, watches and golf club industry. It can process all metals used for making jewelries such as gold, silver, platinum, titanium, steel, palladium and their alloys. It is mainly used for manufacturing and repairing jewelry, glasses, dental, watches and golf stick, as well as precisely welding a variety of micro and heat-sensitive parts, just like nickel straps of batteries, hairsprings, down-leads of IC.
Advantages:
1. High precision Nd:YAG welding system
2. Absolute guarantee of stability laser beam alignment
3. Easy of maintenance: automatic water-feeding, no need open the cabinet
4. Colour touch-screen display
5. 50 storage places for parameters
6. Supplier of gas protection
7. Regulator of the cooling air
8. Deionizing filter supplied as standard
9. A soft and attractive design
Fiber Laser welding machine is suitable for welding gold, silver, titanium, nickel, tin, copper, aluminum and other metals and their alloy materials. It can achieve the same precision welding between metals and dissimilar metals. It has been widely used in aerospace, shipbuilding, and instrumentation. , Mechanical and electrical products, automobiles and other industries.
