Quick Details
-
Brand Name:
-
SHARE
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
3100*1050*1200mm
-
Weight (KG):
-
1000
-
Power (kW):
-
4KW
-
Name:
-
Trimmer stable carbide blade sharpener sharpening machine saw blade
-
Keywords:
-
saw blade sharpening wheel
-
Key words:
-
hydraulic pressesband saw blade sharpener
-
Maximum grinding length:
-
3200 (mm)
-
Maximum sharpening width:
-
250MM
-
Table Angle:
-
0 ~ 90 degrees
-
Grinding wheel size:
-
200*100*32 (mm)
-
Key word:
-
sharpening machine saw blade
-
kw:
-
shaving blade sharpener machine
-
Product name:
-
industrial blade sharpening machine
Quick Details
-
Wheel Size(mm):
-
200*110*32mm
-
Year:
-
2023
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
SHARE
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
3100*1050*1200mm
-
Weight (KG):
-
1000
-
Power (kW):
-
4KW
-
Name:
-
Trimmer stable carbide blade sharpener sharpening machine saw blade
-
Keywords:
-
saw blade sharpening wheel
-
Key words:
-
hydraulic pressesband saw blade sharpener
-
Maximum grinding length:
-
3200 (mm)
-
Maximum sharpening width:
-
250MM
-
Table Angle:
-
0 ~ 90 degrees
-
Grinding wheel size:
-
200*100*32 (mm)
-
Key word:
-
sharpening machine saw blade
-
kw:
-
shaving blade sharpener machine
-
Product name:
-
industrial blade sharpening machine
Product Description

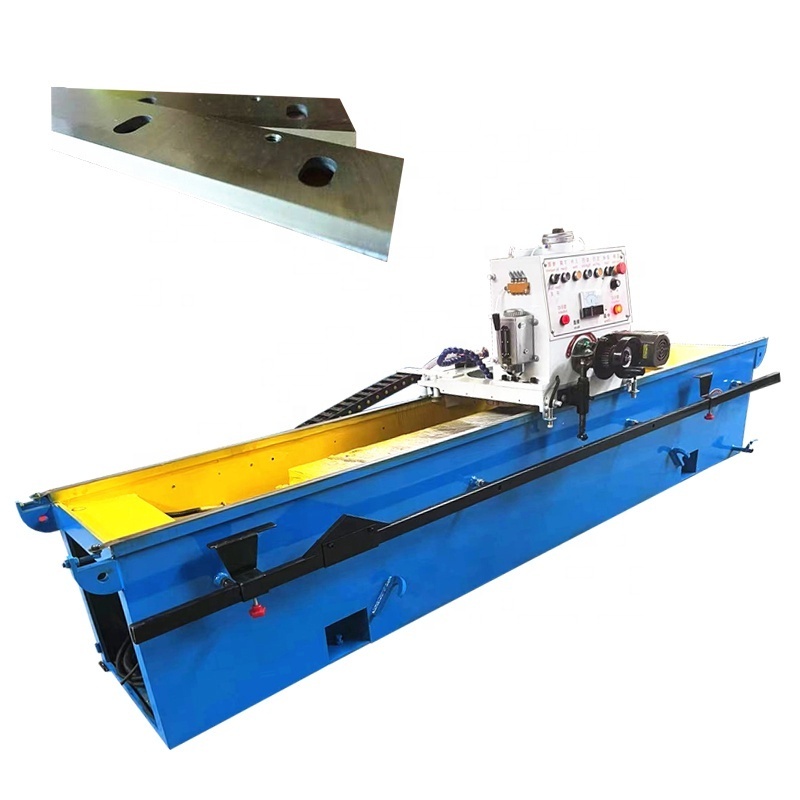

Automatic Knife Sharpening Machine Clipper Blade Sharpening Machine Saw Blade Sharpening Machine
This knife grinder machine is mainly used in straight blade cutting tool in different angles,suitable for all kinds of cutter tools of plywood,furniture,printing,textile industry etc.It is also used to the oblique opening of high speed tool steel.
Details Images
|
Model
|
SR-MDJ
|
|
Dimensions
|
3100*1050*1200mm
|
|
Weight
|
1000kg
|
|
Sharpener angle
|
0-90°
|
|
Sharpening platform size
|
1600*180mm
|
|
Main motor power
|
4KW
|
|
Water pump
|
90W
|
The machine tools consists of five parts,incl machine body,sliding plate,motor,grinding head, electrical parts.Each component has compact structure,rational and beautiful layout, It can make sure the same height and weight and express its unique advantages, so it is ideal for Plywood factory and straight blade knives manufacturers.
More machine detail
Main Features
1. This machine mainly grind all type of long knives, like peeling machine knife, Granulator knife,cutting paper knife ,Shearing Blades, sliceing knives etc.
2. This machine can work long surface knife. Max. Working length is 1500mm.
3. This machine’s body is a design of gantry body, with the high-quality steel weld,The body has high strength and good rigidity.
4. The worktable use the electro magnetic chuck. And very convenience to clamp knife. The worktable is easy to adjust the angle by worm gear.
5. This machine use the inverter. It can be easy to adjust the horizontal and vertical speed of the grinding head.
6. Job accuracy of machine is 0.01mm.
