Quick Details
-
Brand Name:
-
Angnet/OEM
-
Use:
-
FTTH
-
Product name:
-
PLC Splitter
-
Split ratio:
-
1x2 1x4 1x8 1x16 1x32 1x64
-
Package Style:
-
Steel tube
-
Connector type:
-
SC/APC or SC/UPC
-
Fiber Type:
-
G657A
-
Pigtail Diameter:
-
0.9mm
-
Pigtail Length:
-
1M, 1.5M or customized
-
Pigtail color:
-
White or Colored
-
Wavelength:
-
1260-1650nm
-
Application:
-
FTTH
Quick Details
-
Type:
-
PLC splitter
-
Model Number:
-
PLC Splitter
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Angnet/OEM
-
Use:
-
FTTH
-
Product name:
-
PLC Splitter
-
Split ratio:
-
1x2 1x4 1x8 1x16 1x32 1x64
-
Package Style:
-
Steel tube
-
Connector type:
-
SC/APC or SC/UPC
-
Fiber Type:
-
G657A
-
Pigtail Diameter:
-
0.9mm
-
Pigtail Length:
-
1M, 1.5M or customized
-
Pigtail color:
-
White or Colored
-
Wavelength:
-
1260-1650nm
-
Application:
-
FTTH

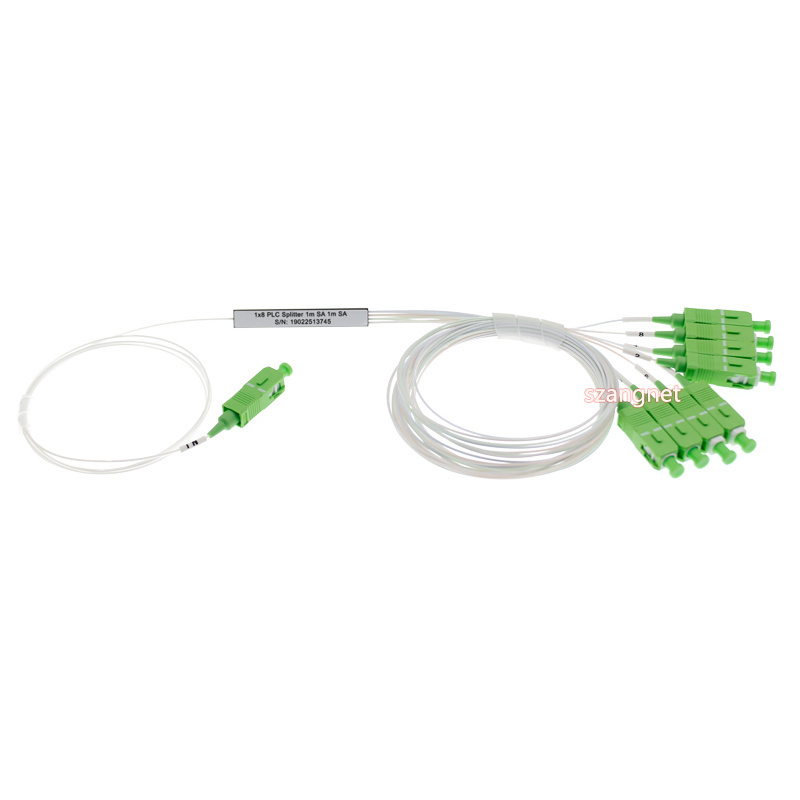

1x2 1x4 1x8 1x16 1x32 1x64 Passive Optical Splitter 1x8 Fiber Optic PLC Splitter
The PLC Splitters is branching devices that is used to distribute optical signals to multiple locations for processing. In optical networks, it is often necessary to split an optical signal into many identical signals, or to combine many signals into a single signal. PLC Splitter (Planar lightwave circuit splitter) is a type of optical power management device that is fabricated using silica optical waveguide technology. They are designed for FTTx Passive Optical Networks, CWDM, DWDM and optical cable TV System. PLC Splitter is responsible to distribute optical signals from Central Office (CO) to multiple premise locations.We provides whole series of 1*N and 2*N splitter products that are tailored for specific applications. All prodcts meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements.
| Technical Test Data | ||||||||||
| Split Ratio | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 2x2 | 2x4 | 2x8 | 2x16 | 2x32 |
| Wavelength | 1260~1650 (nm) | |||||||||
| Insertion Loss(dB) | ≤4.6 | ≤7.5 | ≤11.0 | ≤14.0 | ≤17.0 | ≤4.5 | ≤8.0 | ≤11.7 | ≤14.7 | ≤17.9 |
| Uniformity(dB) | ≤0.6 | ≤0.6 | ≤0.8 | ≤1.2 | ≤1.5 | ≤0.8 | ≤1.0 | ≤1.0 | ≤1.5 | ≤2.0 |
| PDL(dB) | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
| Directivity(dB) | ≥55 | |||||||||
| Operating temperature | -40~+85 | |||||||||
Application:
Optical Signal Distribution; Data Communications; Lan and CATV System; FTTX Deployment; FTTH Network; Passive Optical Networks (PON)
Shenzhen Angnet Technology Co., Ltd, established in 2015, located in Shenzhen China, is a professional manufacturer engaged in the research, development, production, sale and service of Fiber optic products and network products. Our main products: FTTH products and Network products.
Quality and standards are the foundation of Angnet, we have passed many quality system verifications, like ISO9001 and RoHS. Dedicated to strict quality control and thoughtful customer service, Our products are selling well in all cities and provinces around China, and overseas.
The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service. Shenzhen Angent Technology Co., Ltd is looking forward to cooperate with you.
Q1:
Are your trading company or manufacture ?
A:
We are factory verified by SGS
Q2:
Do you provide OEM service ?
A:
Yes, we can print your logo or label on the products or on the box.
Q3:
Can you provide free samples ?
A:
Some of low value samples can be free for you, but you need pay for the shipping cost.
Q4:
How can you guarentee the quality ?
A:
Build on our perfect quality management system, all of our products were 100% tested before the shipment.
Q5:
What is your delivery time ?
A:
Generally, sample: 3~5 working days. formal order: 7-10 working days.
Q6:
What's your payment terms ?
A:
We accept T/T, Western Union, Money Gram, Paypal.
For samples: 100% payment. Formal order: 30% as deposit, 70% balance payment before shipment.
