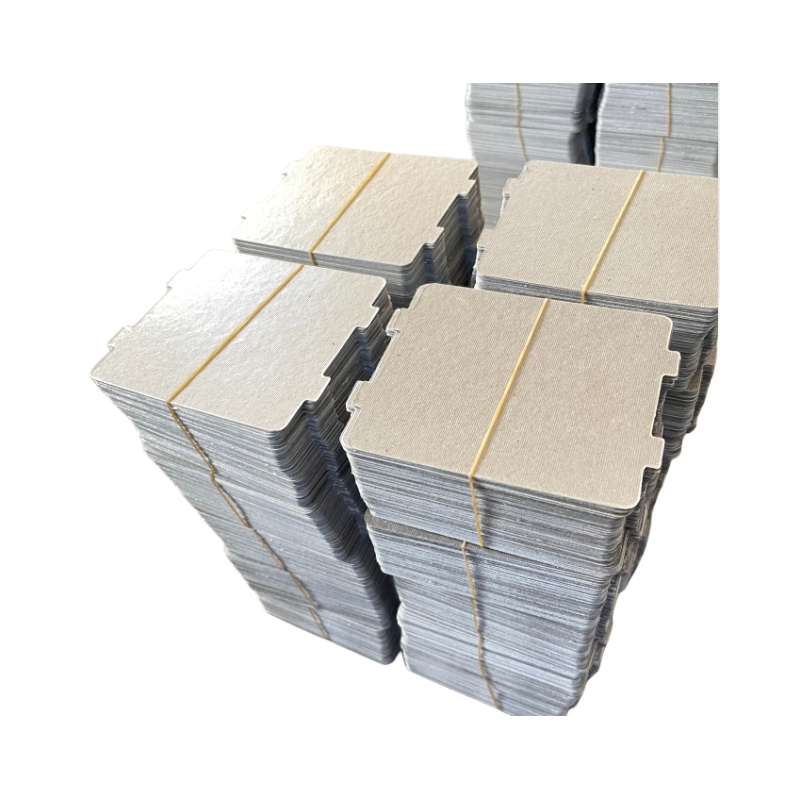

Factory wholesale mica plate insulation hight temperature resistance for microwave toaster heater Hairdryer Toaster coffee pot

Factory wholesale mica plate insulation hight temperature resistance for microwave toaster heater Hairdryer Toaster coffee pot

FOB Reference Price: Get Latest Price

≥500 Kilograms

US $0.19

≥1000 Kilograms

US $0.16

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Tensile Strength:: 18~25kv/0.1 mm, 30~45kgf/mm

Product name:: mica laminate sheet high quality muscovite sheet thin mica sheet

Feature:: Flame retardant

Standard Size:: 600*1000mm

Standard color:: Sliver, Gold

Standard Thickness:: 0.2-50mm

Specific gravity:: 2.4 g/cm3

Flame retardant grade:: UL94V-0

Calcining Temperature::: 600~800℃

Sample:: Freely Supplied

Hardness:: 2.8~3.2

Quick Details

Place of Origin:: Shandong, China

Brand Name:: Shengda

Model Number:: SDH-32471

Tensile Strength:: 18~25kv/0.1 mm, 30~45kgf/mm

Product name:: mica laminate sheet high quality muscovite sheet thin mica sheet

Feature:: Flame retardant

Standard Size:: 600*1000mm

Standard color:: Sliver, Gold

Standard Thickness:: 0.2-50mm

Specific gravity:: 2.4 g/cm3

Flame retardant grade:: UL94V-0

Calcining Temperature::: 600~800℃

Sample:: Freely Supplied

Hardness:: 2.8~3.2

Factory wholesale mica sheet high quality mica plate for microwave toaster heater Hairdryer Toaster coffee pot

Specification

Specification			Muscovite Sheet H P5	Phlogopit Sheet H P5(J)	Muscovite flexibl Sheet H P5(R)	Phlogopite flexiblSheet H P5(JR)
Binder			Silicon Resin
Mica Content			≥90%
Binder Content			≤10%
Thickness(mm)			2.0-100	2.0-100	2.0-100	2.0-100
Thickness Tolerance (mm)	Average	±0.02-0.05	±0.02-0.05	±0.02-0.25	±0.02-0.25
Thickness Tolerance (mm)		Individual	±0.05-0.08	±0.05-0.08	±0.04-0.06	±0.04-0.06
Density ( g/cm3 )			1.8-2.2	1.8-2.2	1.8-2.2	1.8-2.2
Heat loss at 500 °c (%)			≤ 1.00	≤ 0.60	≤ 2.00	≤ 2.00
Flexural Strength ( kgf/mm² )			≥ 18	≥ 16	-	-
Dielectric Strength (KV/mm)			>20	>18	>15	>15
Insulation Resistance (MΩ)			200-600	100-600	-	-
Long Run work Temperature			600-800 °c	600-800 °c	600-800 °c	600-800 °c
Standard Size (mm)			Cut according to customer needs
Standard Reference			GB5019-85,IEC371

Product Description

Epoxy phlogopite mica plate is usually used as insulation material between F grade direct current diverter and other electric
engine, gasket insulation and so on.

at size of 1000*600mm 1000*1200mm 1000*2000mm, in strips and in cut parts according to drawings. Thickness from 0.2-2.0mm

all meet customer requirment

Mica sheet：
NBRAM series mica sheet is a high temp insulating material made of quality mica materials and high performance organic silicon
resin after melting and laminating process, widly used in electrical appliances such as toaster, hair dryer and warm air
blower,etc and other electric heaters which require high temp electro insulation.

Rigid high temperature heat resistant thermal insulation mica board：

Rigid laminated material, constructed of muscovite or phologpite mica paper with silicon resin.
They are known by its excellent thermal resistance, good flame resistance, high dielectric strength, excellent physical strength,
and little smoke by heating.
The products have been widely used in the industries of household electric appliances (clothes irons, hair dryers, toasters,
kettles, cooking appliances, microwave ovens, air heaters), metallurgy (frequency furnace, intermediate frequency furnace, arc
furnace), medical appliances, etc.

Flexible high temperature heat resistant thermal insulation mica board：

Flexible Mica Board is a kind of flexible laminated material, it has excellent dielectric properties , excellent tensile strength and easy to form at room temperature. They are often used for hair dryers, curlers, electrical irons, motors and so on.

Glossy high temperature heat resistant thermal insulation mica board：

Glossy Mica Board are made from muscovite (or phlogopite) mica paper and high temperature resistant silicon resin, compared with rigid mica board, its surface are very smooth, but properties have no different. Glossy Mica Plate series has two species: Glossy muscovite mica plate and Glossy Phologpite mica plate.
