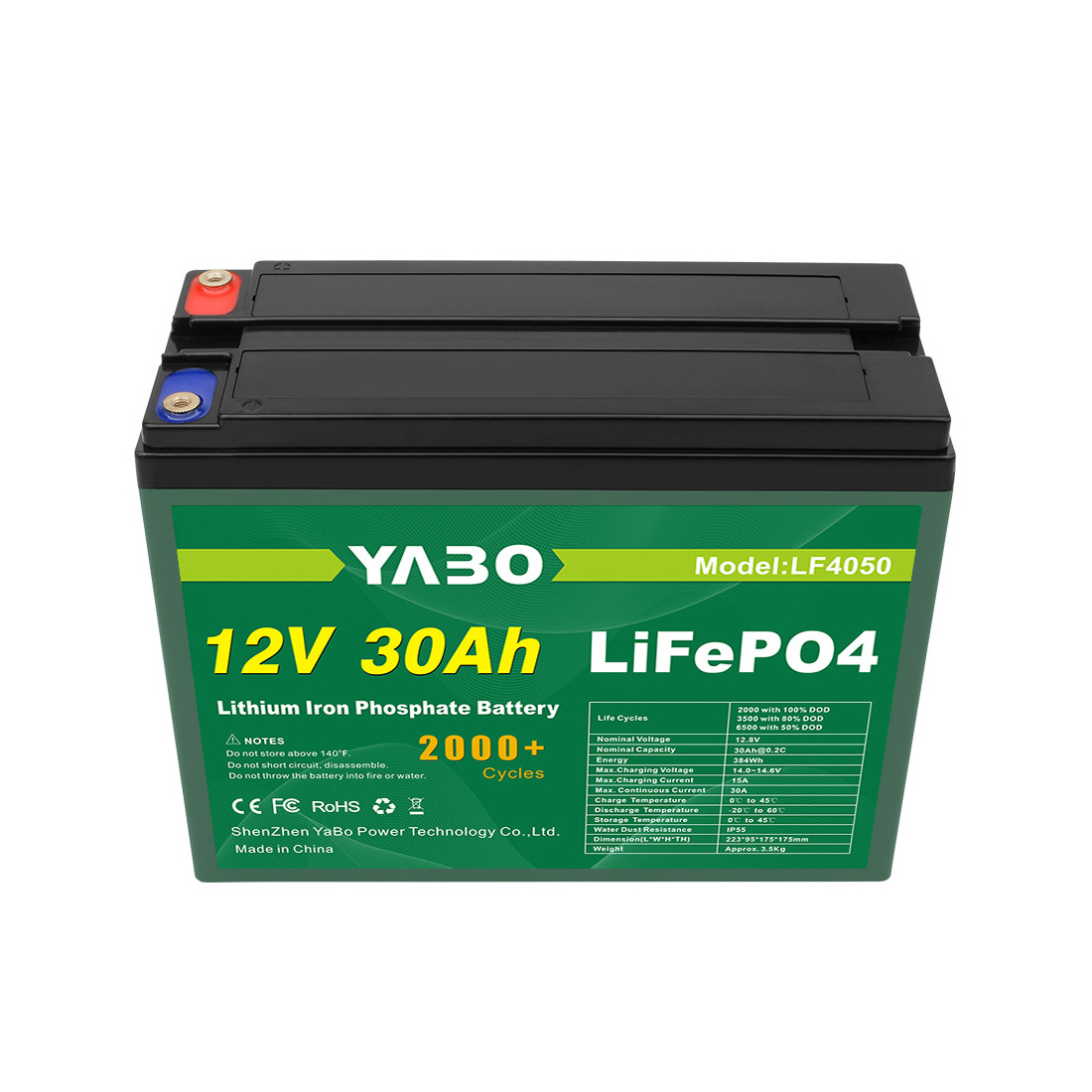

Quick Details
-
Model Number:
-
LF4050
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
Approx. 3.5Kg
-
Electric Energy:
-
384 Wh
-
Nominal Voltage:
-
12.8v
-
Nominal Capacity:
-
30Ah
-
Internal Resistance:
-
≤55mΩ
-
Cycle Life:
-
2000 Cycles
-
Max.Charging Voltage:
-
14.0~14.6V
-
Water Dust Resistance:
-
IP55
-
Dimension(L*W*H*TH):
-
223*95*175*175mm
-
Terminal:
-
M6
-
Warranty:
-
3years
-
Certification:
-
ISO9001,CNAS,CE,ROHS,FCC,MSDS,UN38.3,IEC,BIS,CB
Quick Details
-
Anode Material:
-
LFP
-
Application:
-
Power Tools, Solar Energy Storage Systems, Uninterruptible Power Supplies, UPS,Solar,Wind Power System,Lighting,Communication Equipment
-
Brand Name:
-
YaBo
-
Model Number:
-
LF4050
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
Approx. 3.5Kg
-
Electric Energy:
-
384 Wh
-
Nominal Voltage:
-
12.8v
-
Nominal Capacity:
-
30Ah
-
Internal Resistance:
-
≤55mΩ
-
Cycle Life:
-
2000 Cycles
-
Max.Charging Voltage:
-
14.0~14.6V
-
Water Dust Resistance:
-
IP55
-
Dimension(L*W*H*TH):
-
223*95*175*175mm
-
Terminal:
-
M6
-
Warranty:
-
3years
-
Certification:
-
ISO9001,CNAS,CE,ROHS,FCC,MSDS,UN38.3,IEC,BIS,CB
Products Description
|
Electrical Characteristics
|
Nominal Voltage
|
12.8V
|
|
|
Nominal Capacity
|
30Ah@0.2C
|
|
|
Energy
|
384Wh
|
|
|
Internal Resistance
|
≤55mΩ
|
|
|
Cycle Life
|
2000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity
|
|
|
Self Discharge
|
≤3.5% per month at 25℃
|
|
Standard Charging
|
Max.Charging Voltage
|
14.0~14.6V
|
|
|
Charging Mode
|
At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C, and then,changed continuously with constant voltage of 14.6V until the current was not
more than 0.02C |
|
|
Charging Current
|
15A
|
|
|
Max.Charging Current
|
30A
|
|
Standard Discharging
|
Discharging Current
|
15A
|
|
|
Max. Continuous Current
|
30A
|
|
|
Max.Pulse Current
|
60A(<3S）
|
|
|
Discharging Cut-off Voltage
|
10.0
|
|
Operating Condition
|
Charge Temperature
|
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
|
|
|
Discharge Temperature
|
-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
|
|
|
Storage Temperature
|
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
|
|
|
Water Dust Resistance
|
IP55
|
|
Structure
|
Cell & Format
|
IFR32700 N60,4S5P
|
|
|
Casing
|
Plastic
|
|
|
Dimension(L*W*H*TH)
|
223*95*175*175
|
|
|
Weight
|
Approx. 3.5Kg
|
|
|
Terminal
|
M6
|
Product Details
Chart
Our Advantages
◆ Using the technology of lithium iron phosphate cell, superior safety,thousands of cycles, 100%DOD, under normal conditions.
◆ Built-in automatic protection for over-charge, over discharge, over current and over temperature.
◆ Free of maintenance .
◆ Internal cell balancing.
◆ Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.
◆ Can be charged using most standard lead-acid charges (set).
◆ Wider temperature range:-20℃~60℃.
◆ Support for Series application expansion (up to 51.2V) and two in parallels.
Why Choose Us
Application
◆ UPS
◆ Solar &Wind Power System
◆ Golf Cart
◆ Electric Vehicle , E-bike, E-rickshaw etc.
◆ Lighting
